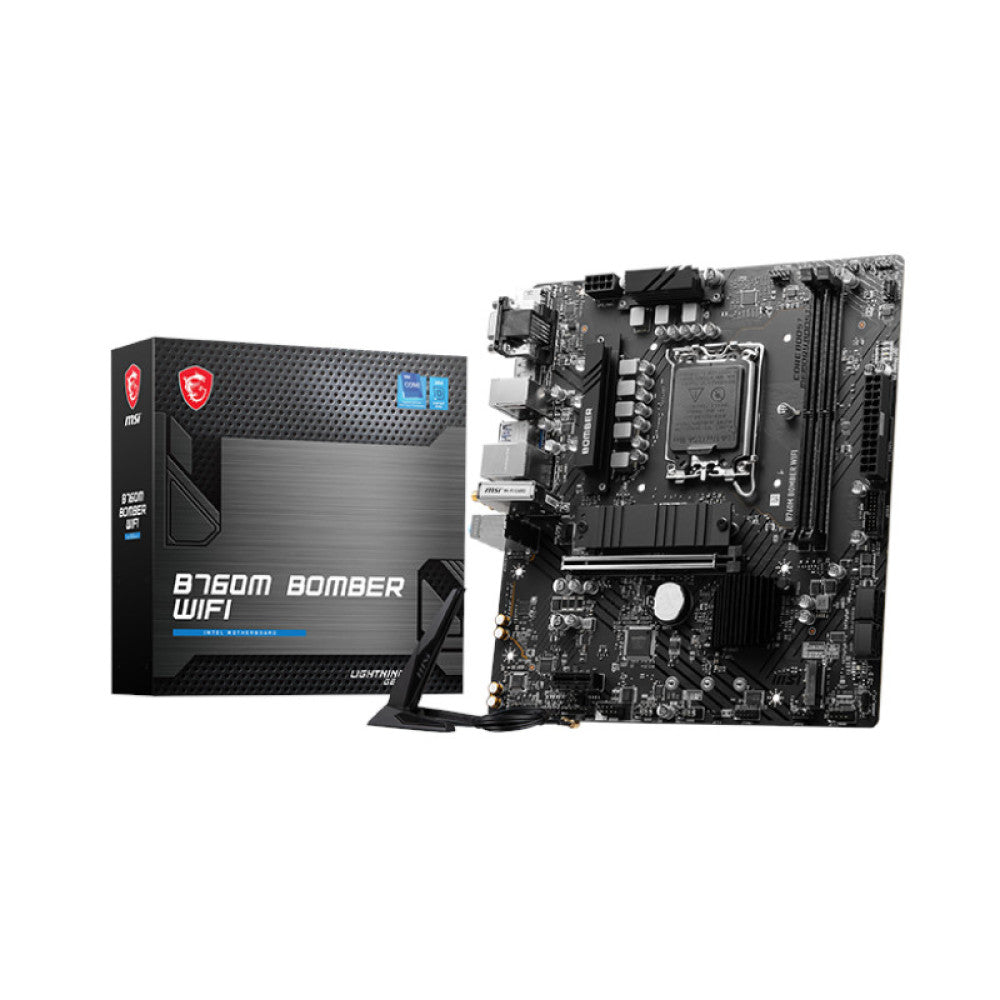

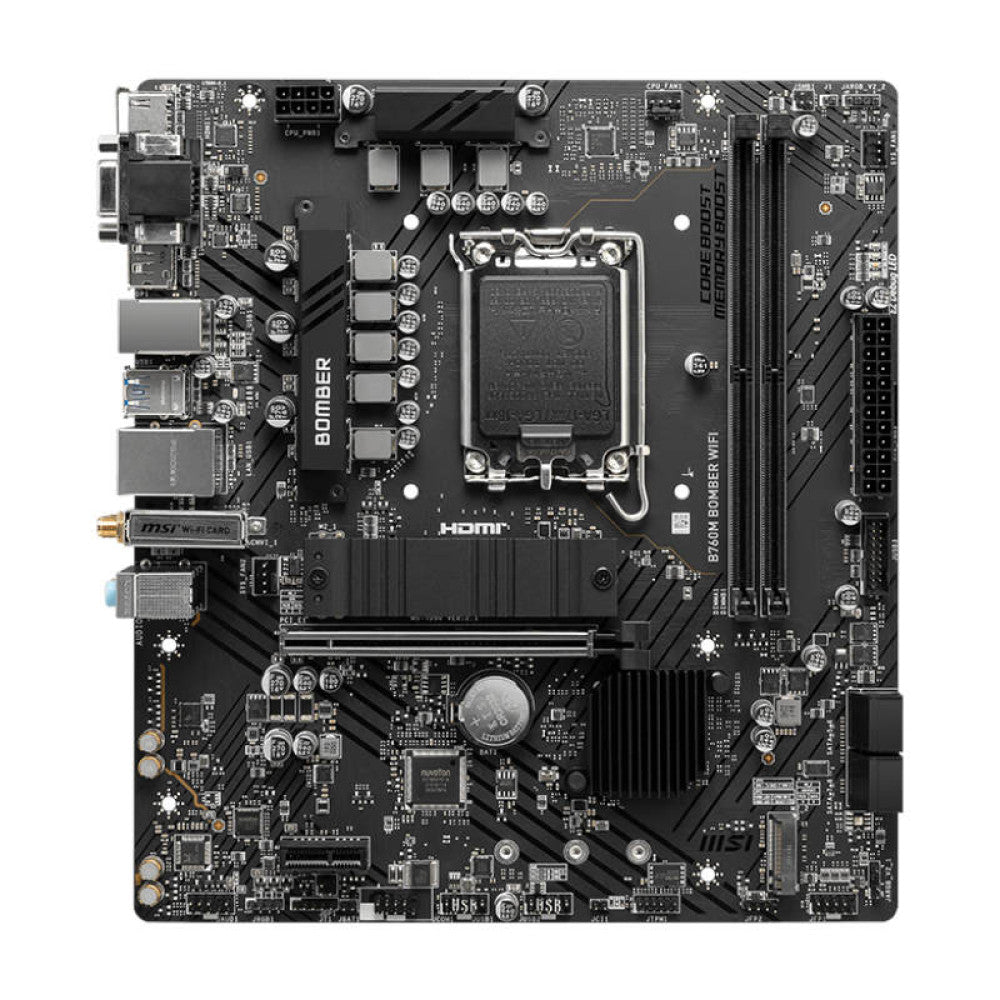

MSI B760M Bomber Wifi Motherboard
MSI B760M Bomber Wifi Motherboard
SKU:B760M BOMBER WIFI
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Supports 12th/13th/14th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
|
Product Specification |
|
|
Processor |
Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
|
Chipset |
INTEL B760 |
|
Memory |
2x DDR5, Maximum Memory Capacity 96GB Memory DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
Expansion Slot |
1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
|
Onboard Graphics |
1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
Audio |
Realtek ALC897 Codec 7.1-Channel High Definition Audio® |
|
Storage |
2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
LAN |
Realtek RTL8125B 2.5Gbps LAN® |
|
WIRELESS LAN & BLUETOOTH® |
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.®® |
|
USB |
2x USB 2.0 (rear)4x USB 2.0 (front)4x USB 3.2 Gen1 Type A (rear) 2x USB 3.2 Gen1 Type A (front) |
|
Internal Connectors |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A |
|
LED Feature |
4x EZ Debug LED |
|

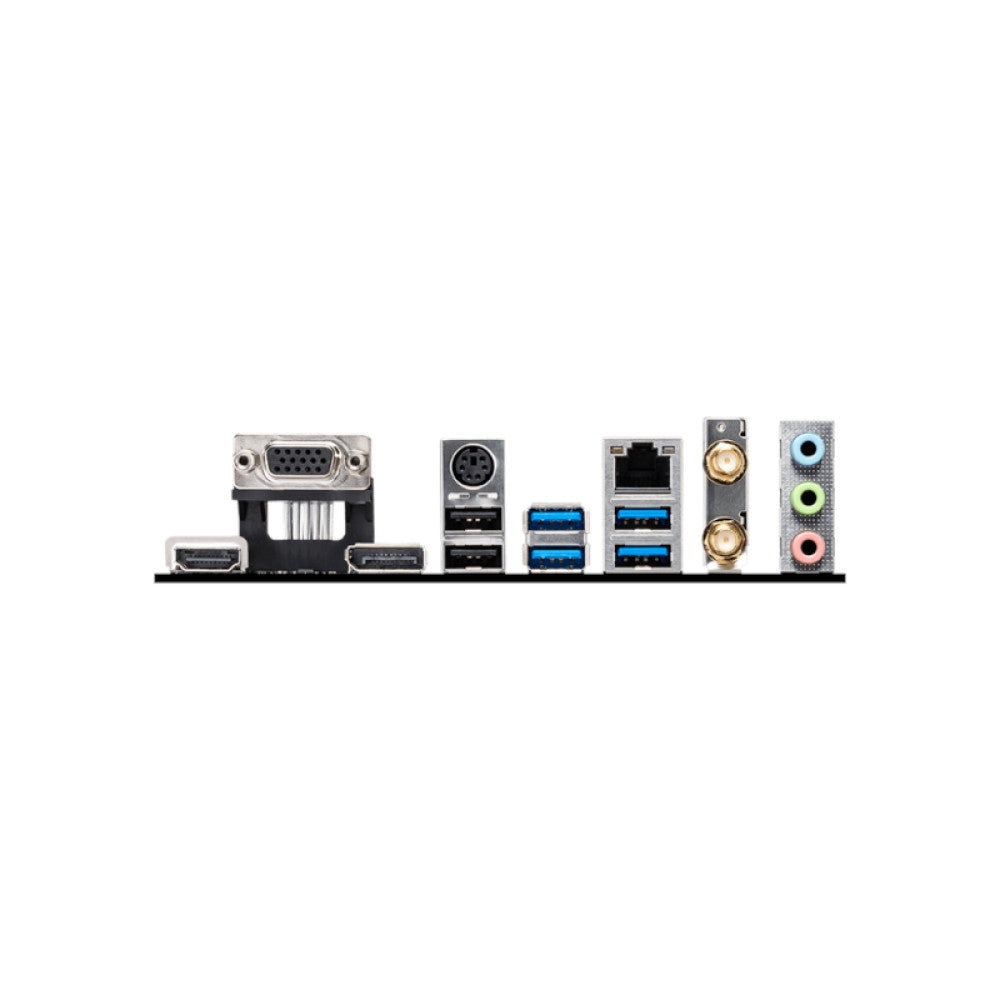

Back Panel Ports |
HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
|
Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
Dimensions |
mATX 220mmx243.84mm |
|
Warranty |
3 Years |
