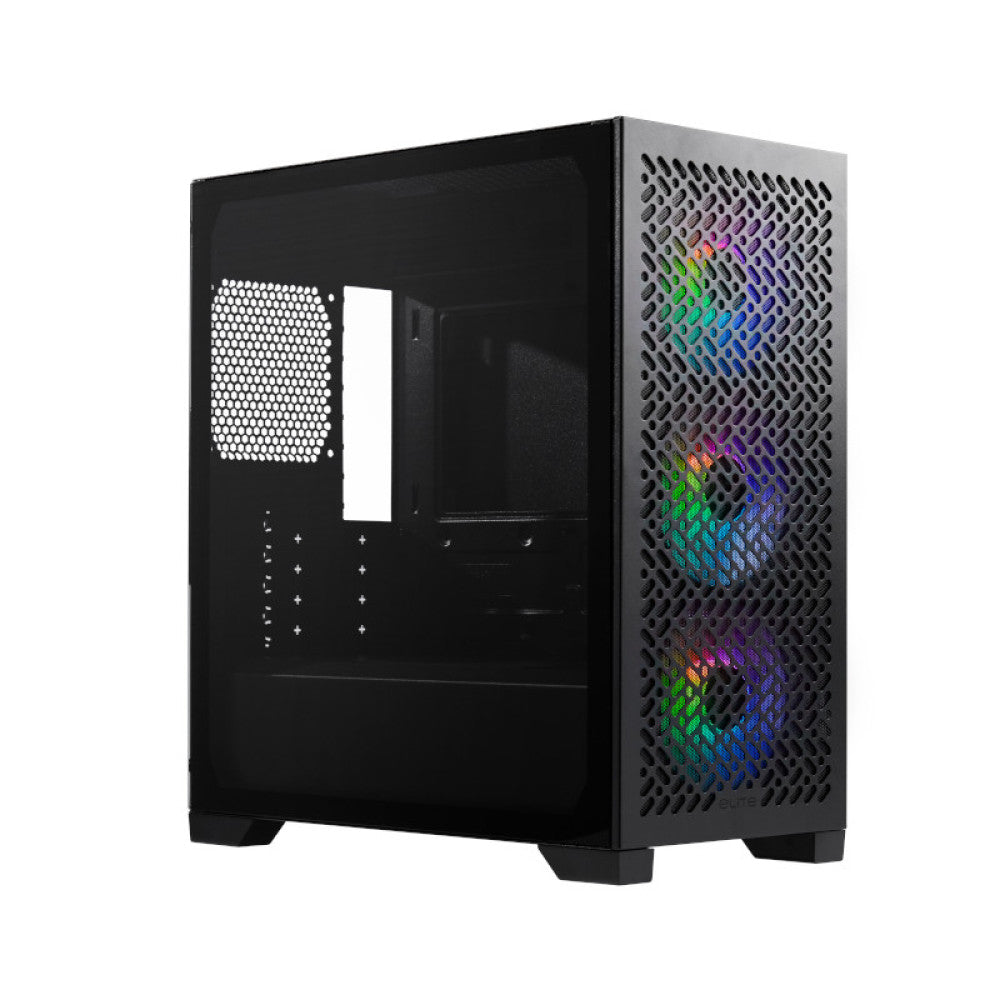

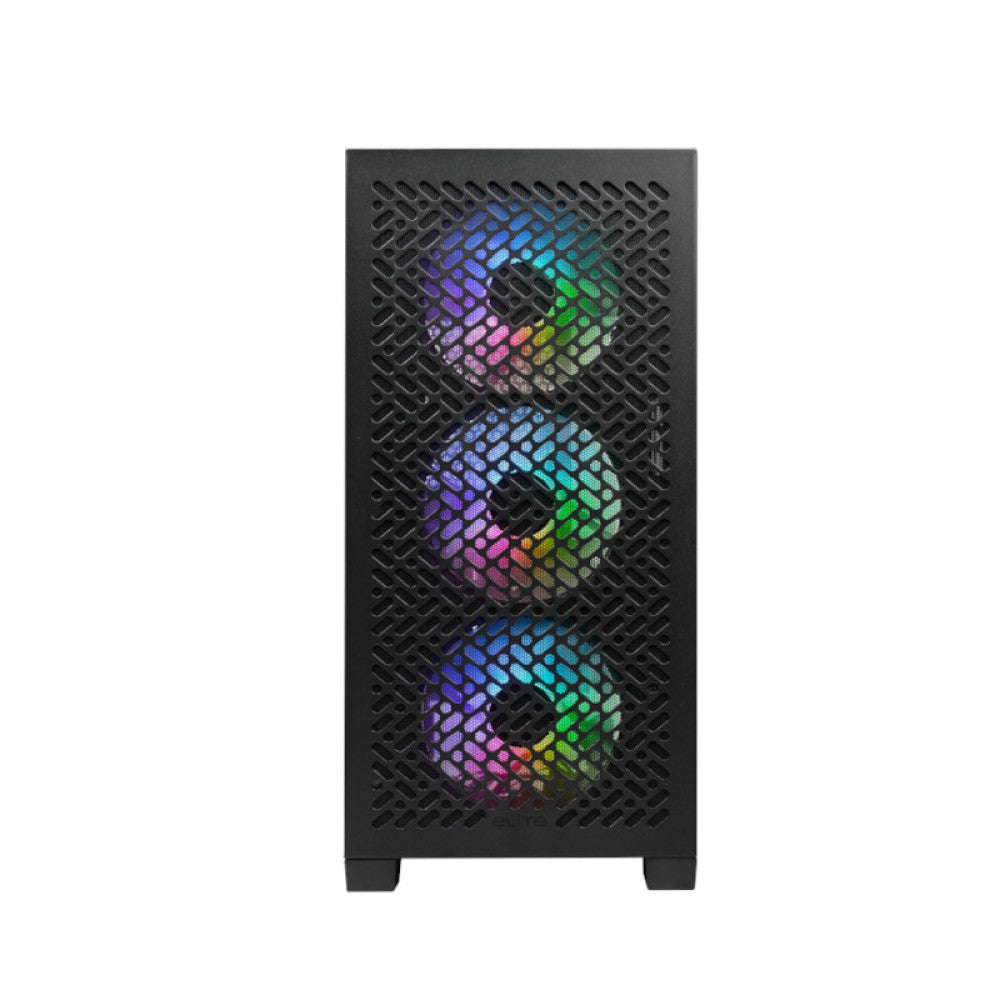

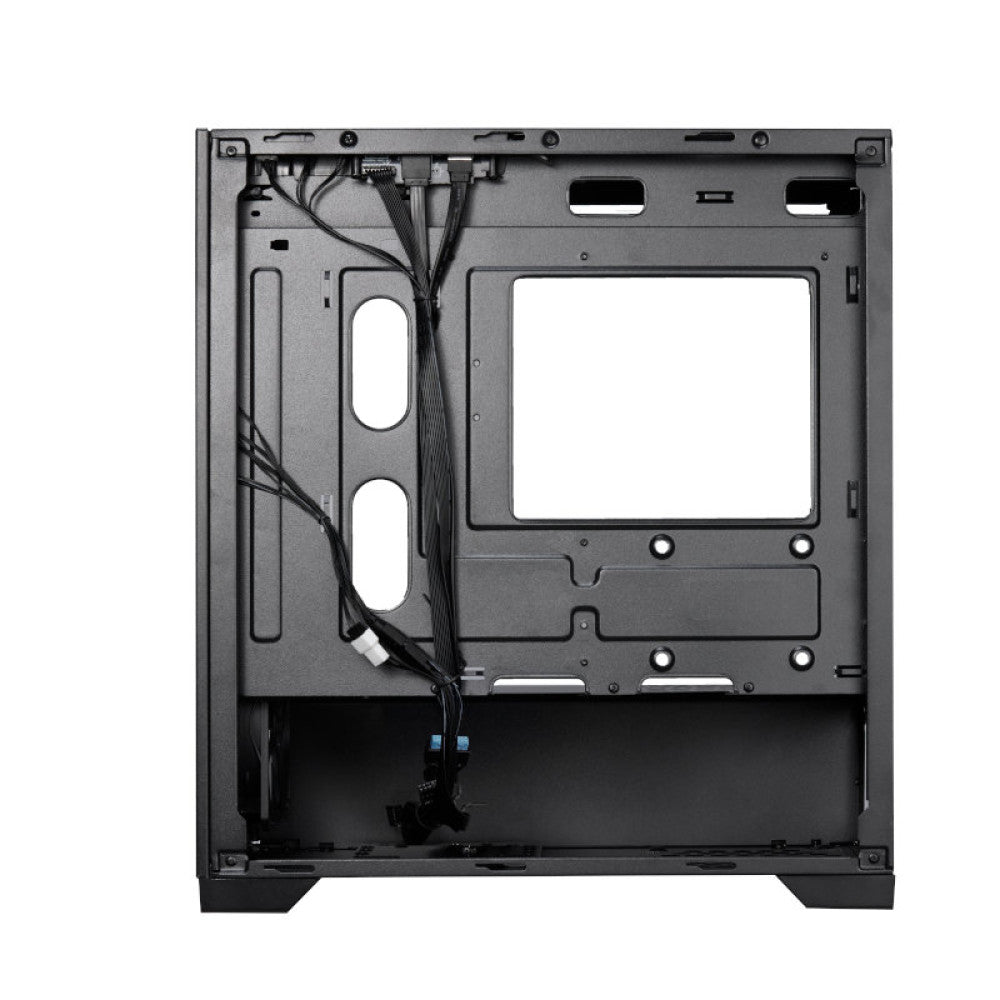

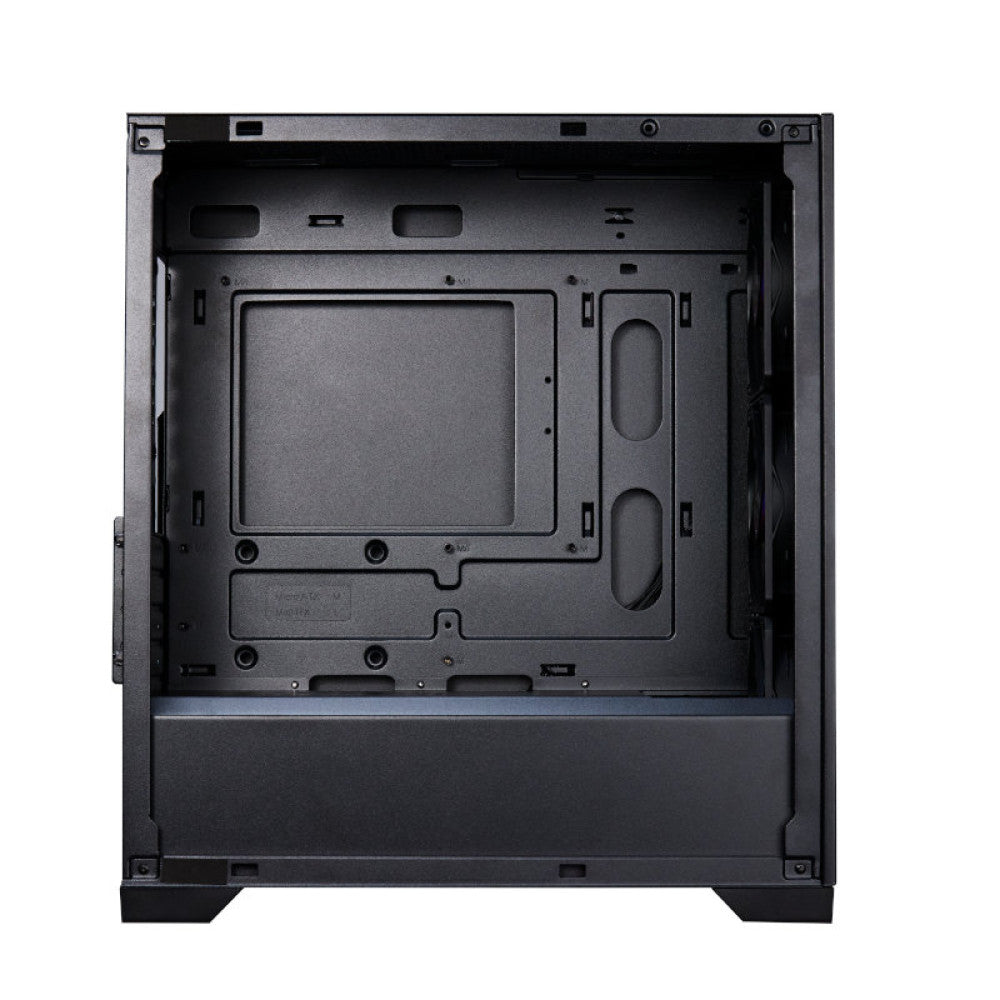

Cooler Master Elite 302 ARGB Cabinet - Black

Model Number

E302-KGNN-S00

Color

Black

Materials

Exterior: Steel

Left Side Panel: Tempered Glass

Right Side Panel: Steel

Dimensions

 (L x W x H)

Incl. Protrusions: 390 x 203.5 x 430 mm

Excl. Protrusions: 377 x 203.5 x 410 mm

Volume (Liters Incl. Protrusions): 34.13 L

Motherboard Support

Micro-ATX / ITX

Expansion Slots

4

Drive Bays

5.25“ ODD: N/A

3.5” HDD: 1

2.5” SSD: 1 (Max.2)

I/O Panel

USB Ports: 1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C

Audio In / Out: 1x 3.5mm Combo (Audio + Mic)

Pre-installed Fan(s)

Front: 120 mm x 3 ARGB

Fan Support

Front: 120 mm x 3

Top: 140 mm x 2 / 120 mm x 2

Rear: 120 mm x 1

Radiator Support

Front: 120 / 240 / *360 mm (*Supported within 60mm thickness)

Top: 120 / 140 / 240 / 280 mm

Rear: 120mm

Clearances

CPU Cooler: 163.5 mm

Power Supply: 160 mm

Graphics Card: 365 mm (w/o front fans & radiator)

Cable Routing (Behind MB Tray): 18.5 mm

Dust Filters

Top / Bottom / Front

Power Supply Support

ATX

Warranty

2 Years
