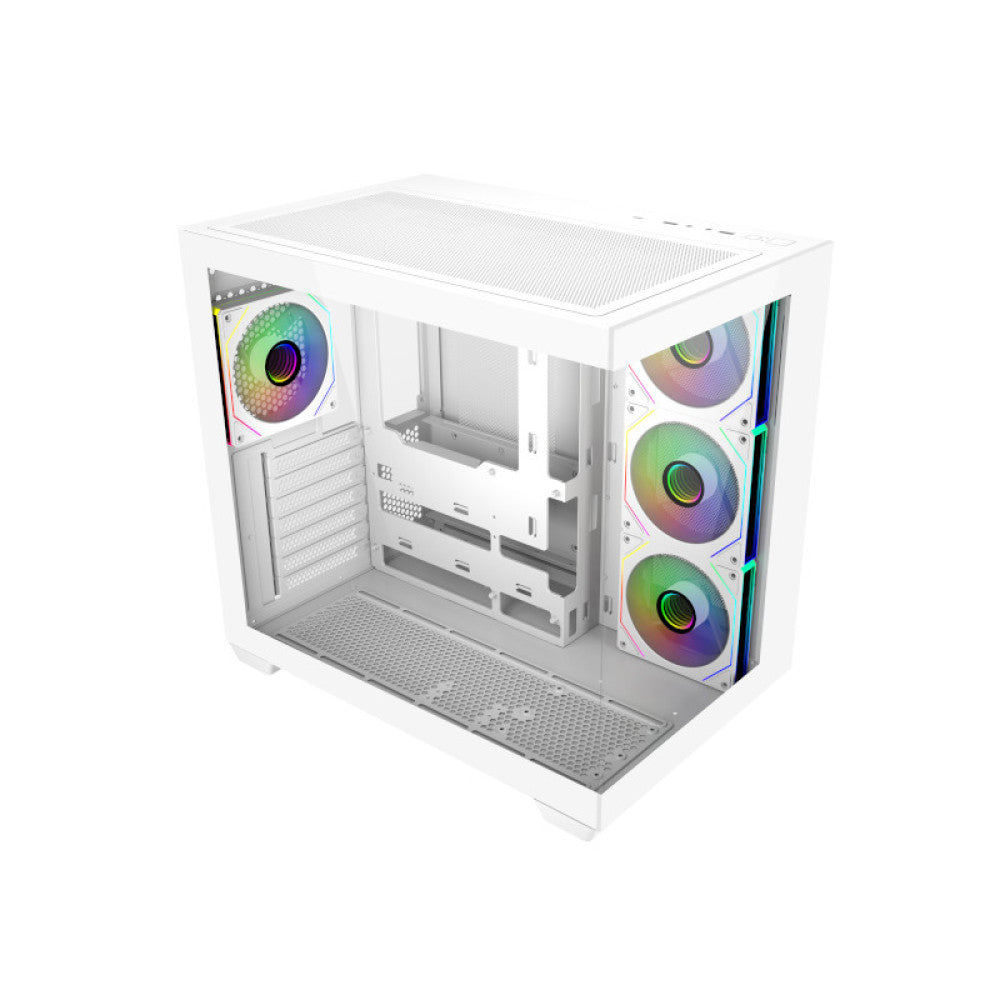

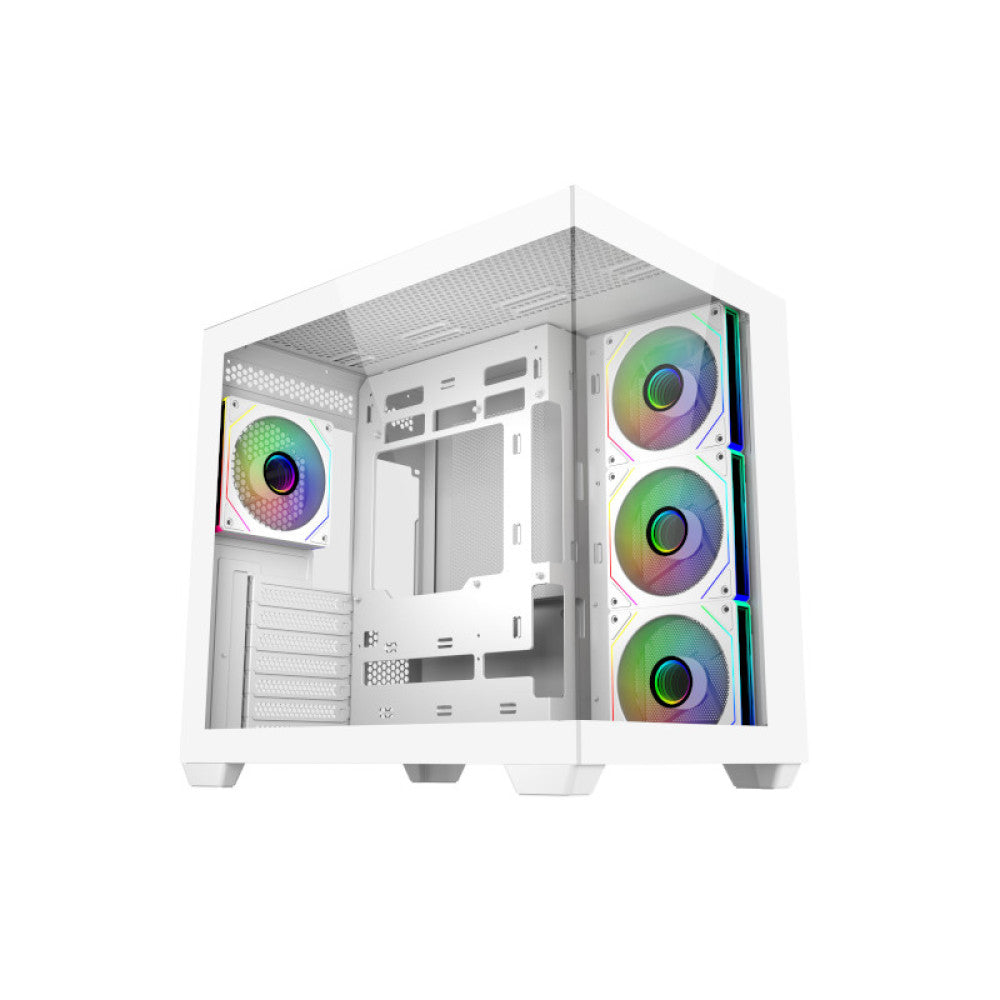

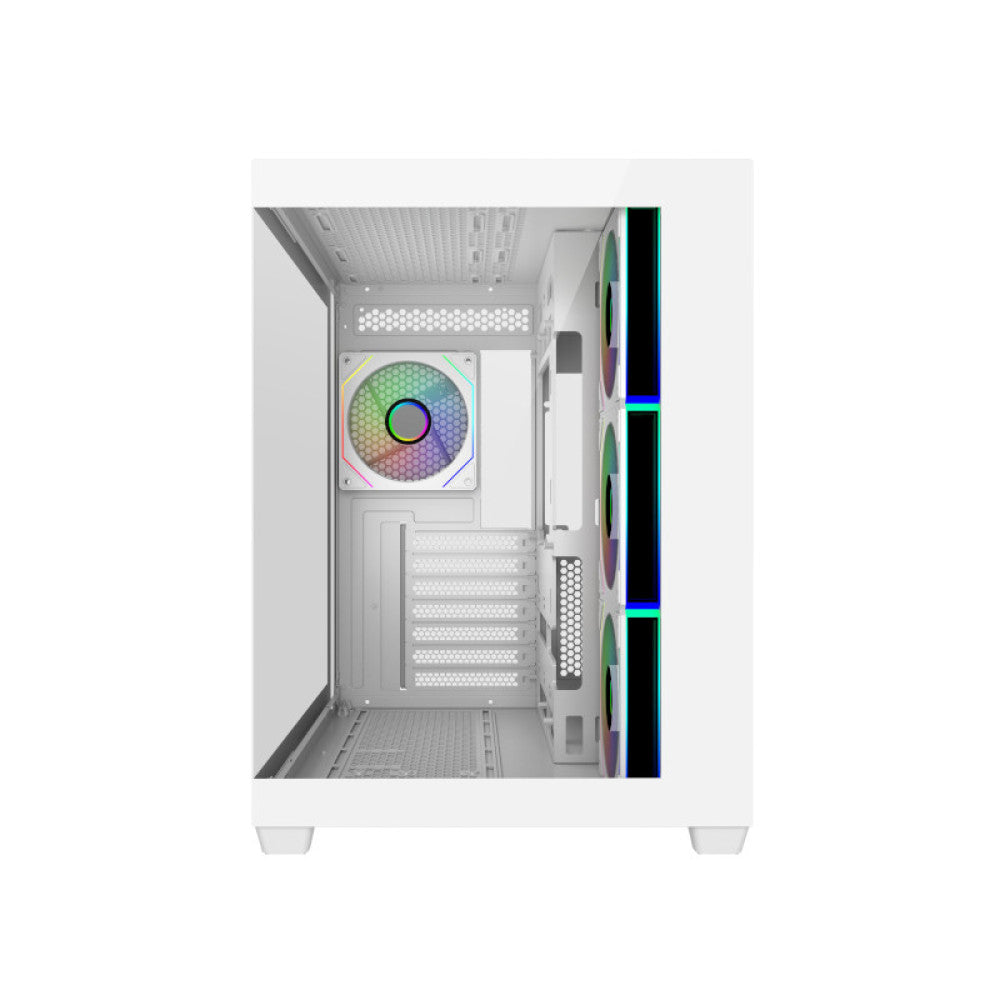

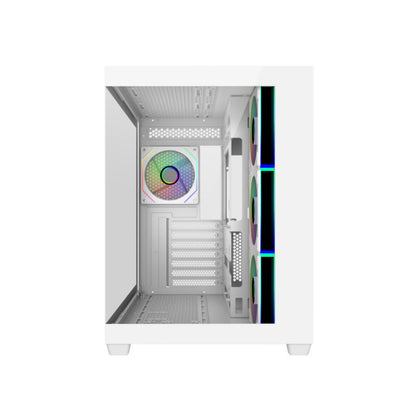

Cooler Master Elite 681 Cabinet - White

Model Number

E681-WHNN-S00

Color

White

Materials

Front Panel: Tempered Glass

Side Panel (Left): Tempered Glass

Side Panel (Right): Steel

Dimensions

 (L x W x H)

Incl. Protrusions: 425 x 285 x 400mm

Excl. Protrusions: 420 x 285 x 380mm

Volume (Liters Incl. Protrusions): 48.45 L

Motherboard Support

ATX / Micro-ATX / ITX

Expansion Slots

7

Drive Bays

5.25“ ODD: N/A

3.5” HDD: 1 (Max 2)

2.5” SSD: 2 (Max 3)

I/O Panel

USB Ports: 1 x USB Type C 20Gbps / 2 x USB 3.0

Audio In / Out: 1 x 3.5mm Combo

Pre-installed Fan(s)

Rear: 1 x 120mm ARGB PWM

Side: 3 x 120mm ARGB PWM reverse fan

Fan Support

Top: 2 x 140mm / 3 x 120mm

Rear: 1x 120mm

Side: 2 x 140mm / 3 x 120mm

Bottom: 3 x 120mm

Radiator Support

Top: 360 / 280 / 240 / 120mm

Bottom: 360 / 240 / 120mm

Side: 280 / 240 / 120mm

Clearances

CPU Cooler: 160mm

Power Supply: 240mm

Graphics Card: 410mm

Power Supply Support

ATX

Warranty

2 Years
