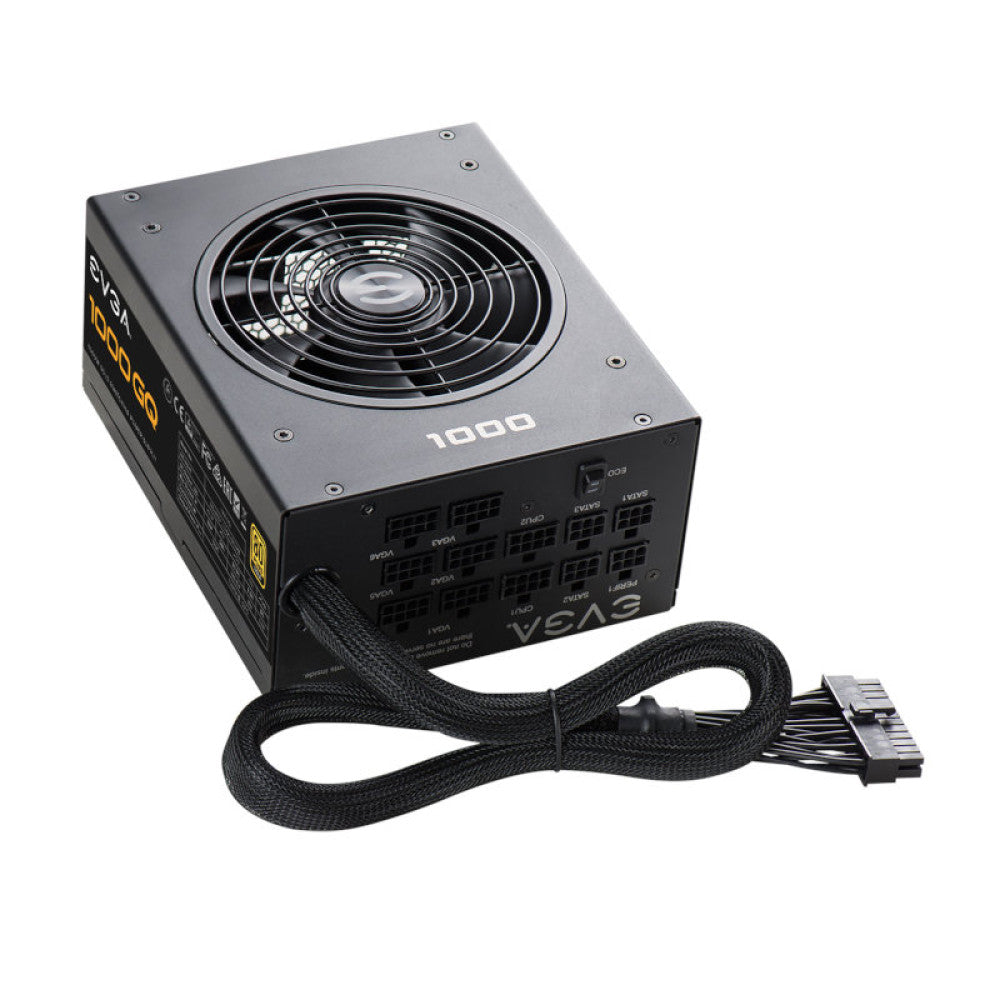

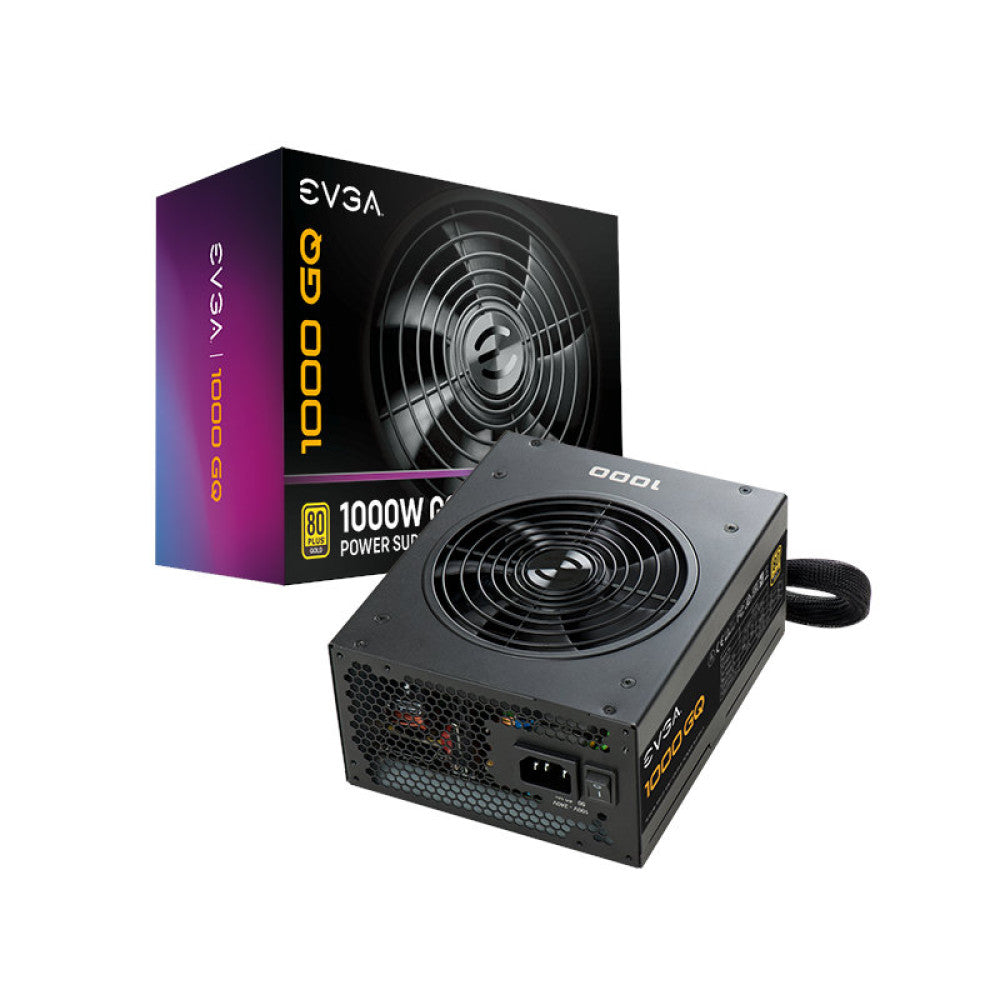

EVGA 1000 GQ 1000W 80+ Gold Semi Modular Power Supply

Cable Lengths

ATX Cable: 1x 600mm

EPS Cable: 2x 650mm

PCIe Cable: 4x 650mm, 750mm, 2x 650mm

SATA Cable: 3x 550mm, 650mm, 750mm, 850mm

Four-Pin Peripheral Cable: 1x 550mm, 650mm, 750mm

Floppy Adapter: 1x 100mm (m)

AC Power: 1x 1530mm

Modular Cable Type

Semi-Modular

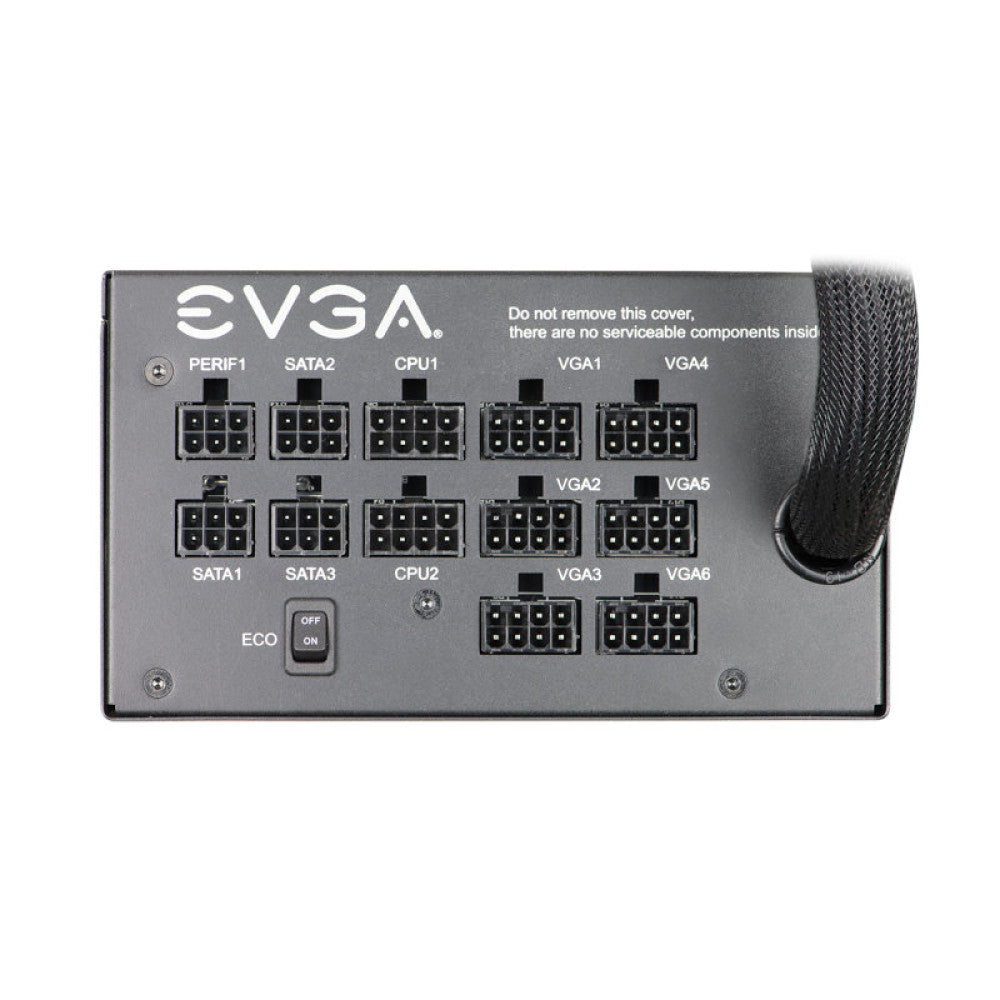

Connector Quantity

24 Pin ATX: 1x

EPS (CPU): 2x 8pin (4+4)

PCIe: 10x 8pin (6+2)

SATA: 12x

Four-Pin Peripheral: 3x

Floppy: 2x

Operating Temperature

0° to 50° C

Japanese Capacitors

100%

ECO Mode

Yes

MTBF

100,000 Hours

Net Weight

7 lbs

Size

85mm (H) x 150mm (W) x 180mm (L)

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 6 2013 Requirement

Fan Size / Bearing

135mm Fluid Dynamic Bearing

AC Input

100 - 240 VAC, 16A, 50 - 60 Hz

Wattage

1000W

WARRANTY

5 Year limited warranty with registration.
