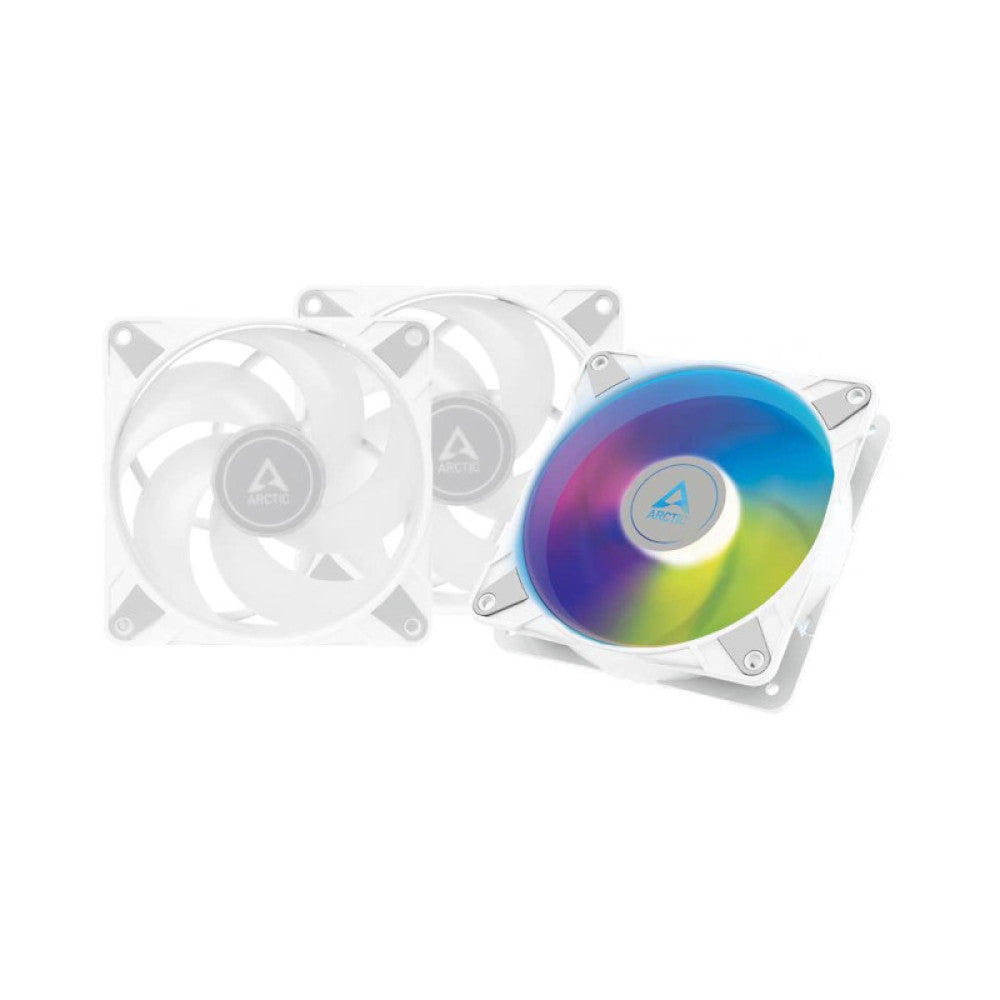

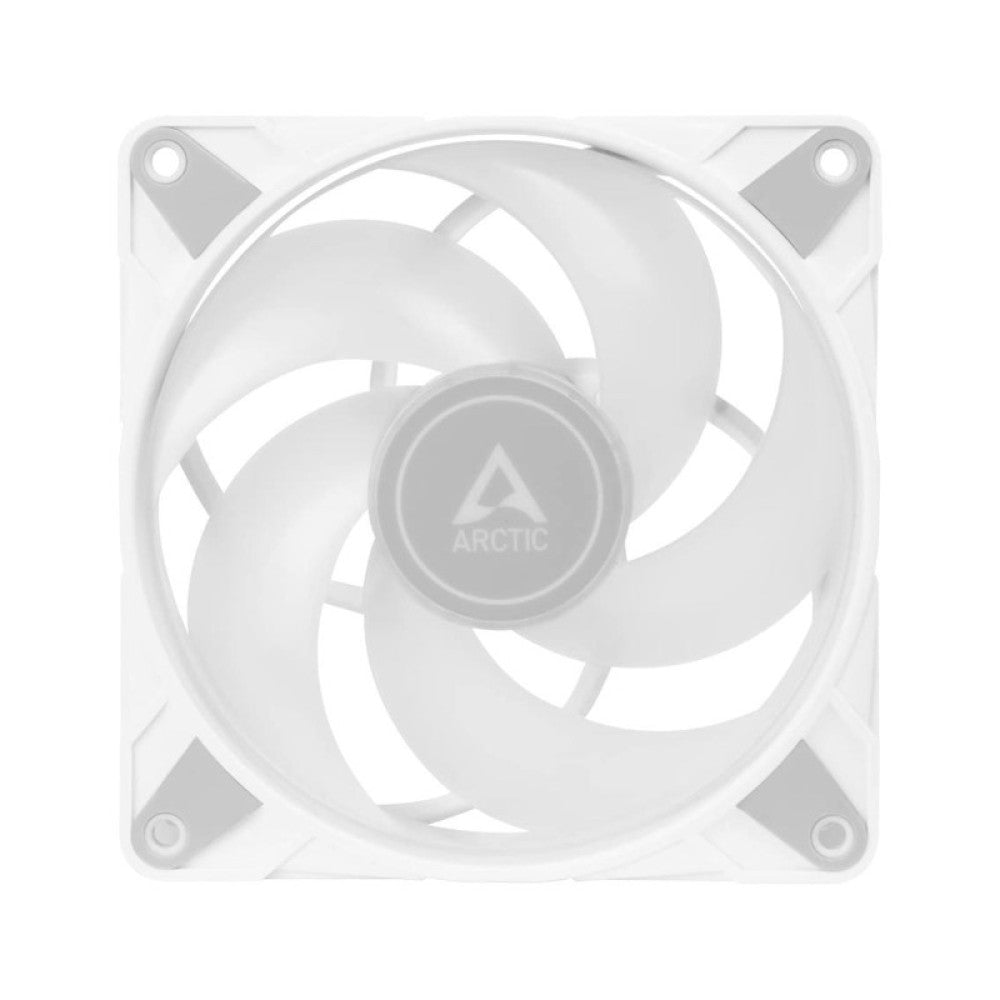

Arctic P12 PWM PST A-RGB Cabinet Fan (Triple Pack) - White

Model

ACFAN00258A

Performance

Fan Speed:200—2000 rpm PWM Controlled (0 rpm below 5% PWM)

Airflow: 48.80 cfm | 82.91 m³/h

Static Pressure1.85 mmH2O

Noise Level:0.3 Sone

Operating Ambient Temperature:0—40 °C

Fan

Fan Frame:Standard

Control Type:PWM PST

Connector:4-Pin Connector + 4-Pin Socket

Fan Bearing:Fluid Dynamic Bearing

Electric Characteristics

Typical Voltage:12 V DC

Starting Voltage:5 V

Current | Voltage:0.11 A | 12 V DC

Cable Length:400 mm

RGB Specifications

LEDs:12 A-RGB LEDs

Connector:3-Pin 5 V-DI-GND Connector

Current/Voltage:0.4 A | 5 V

Cable:400 mm Cable with 80 mm Sharing Cable, Black

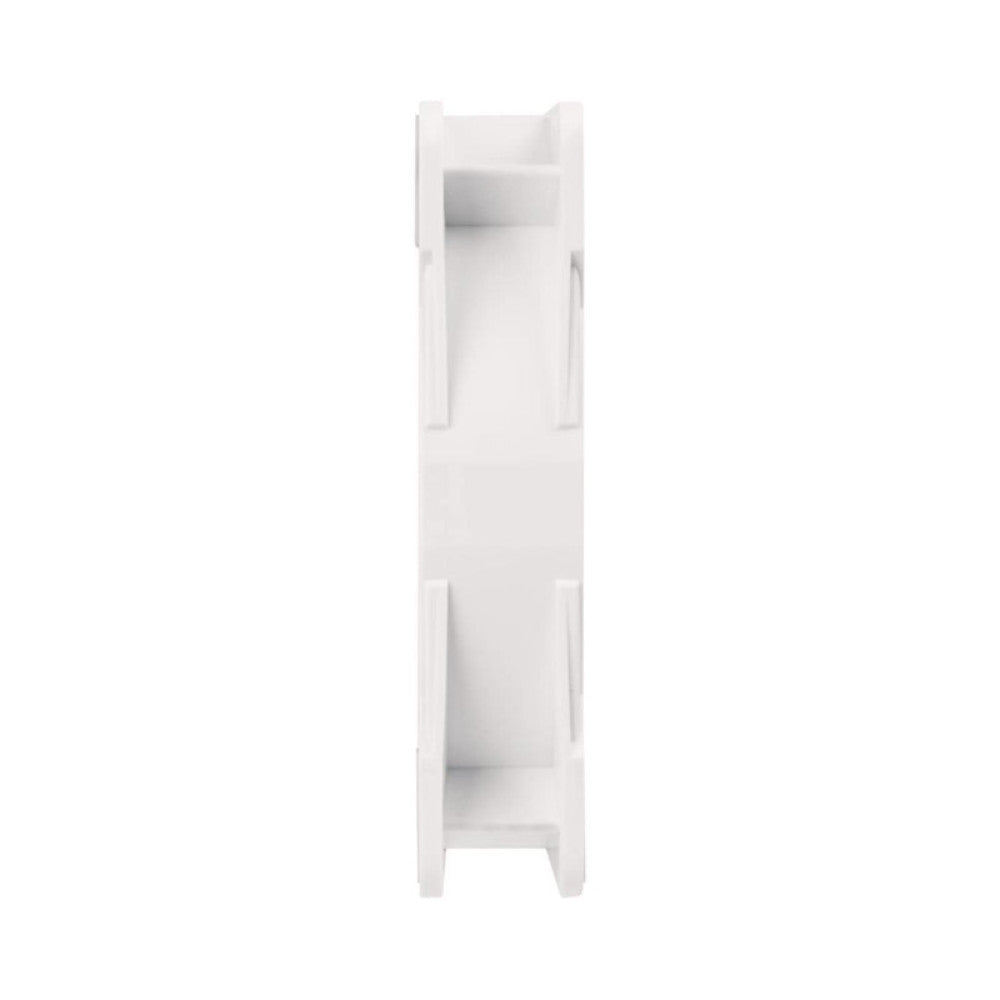

Size & Weight

Length: 120 mm

Width:  120 mm

Height:  25 mm

Weight: 131 g

Packaging

Width: 86 mm

 Height: 125 mm

 Length: 127 mm

Weight: 0.56 kg

Warranty

6 Years
