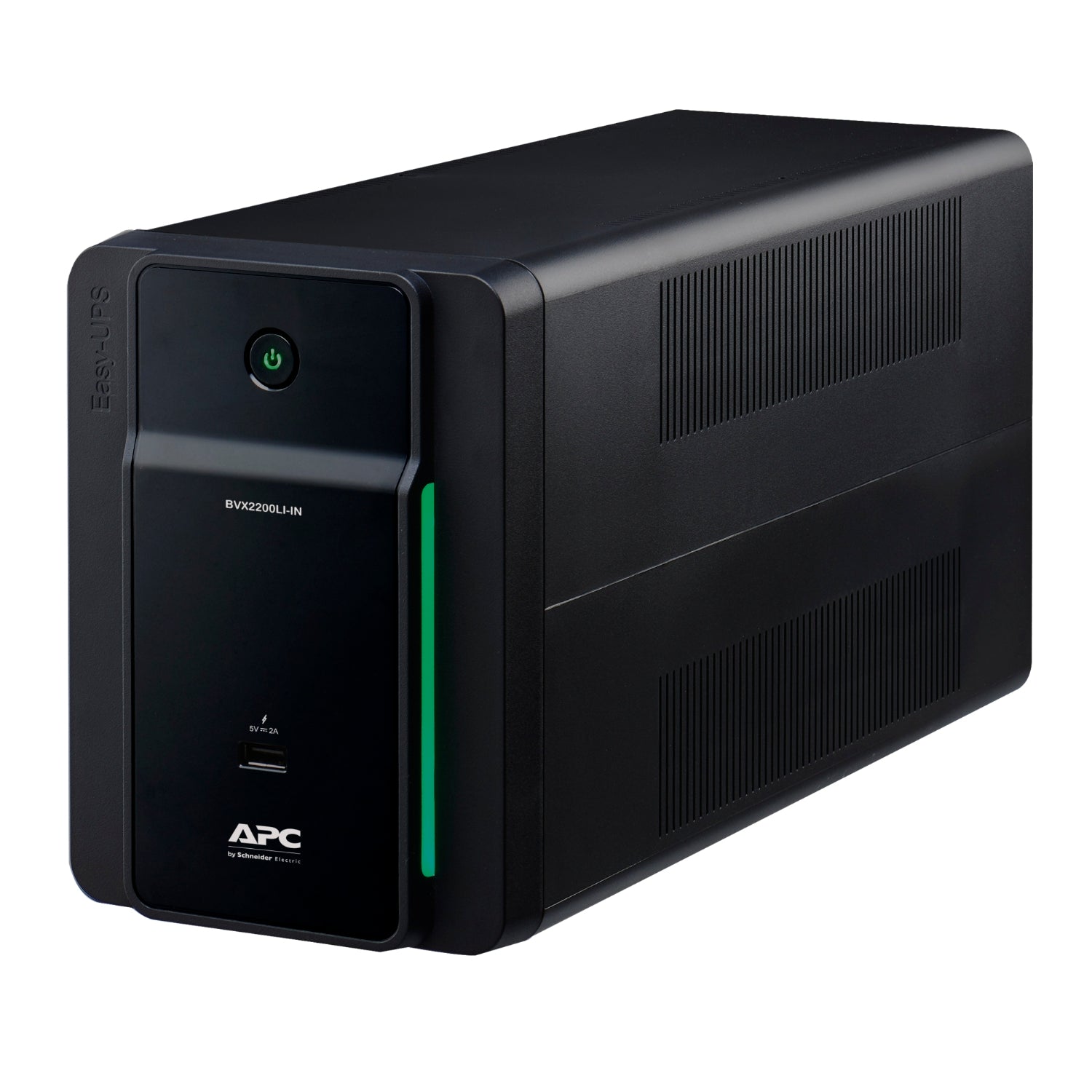

APC 2200VA Easy-UPS with AVR

Max Configurable Power (Watts)

1.2kWatts / 2.2kVA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Unsynchronised

Other Output Voltages

230 V

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Input frequency

40 - 70 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

140 - 300V

Number of Power Cords

1

Type of Input Protection Required

Circuit breaker

Battery type

Lead-acid battery

Typical recharge time

6hour(s)

Nominal Battery Voltage

24 V

Battery Volt-Amp-Hour Capacity

216

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rating

255 Joules

Maximum Height

190MM, 19.0CM

Maximum Width

140MM, 14.0CM

Maximum Depth

390MM, 39.0CM

Net Weight

12.2KG

Shipping weight

13.2KG

Shipping Height

297MM, 29.7CM

Shipping Width

235MM, 23.5CM

Shipping Depth

495MM, 49.5CM

Color

Black

Approvals

BIS

Warranty

2 Years on UPS & 1 Year on Battery
