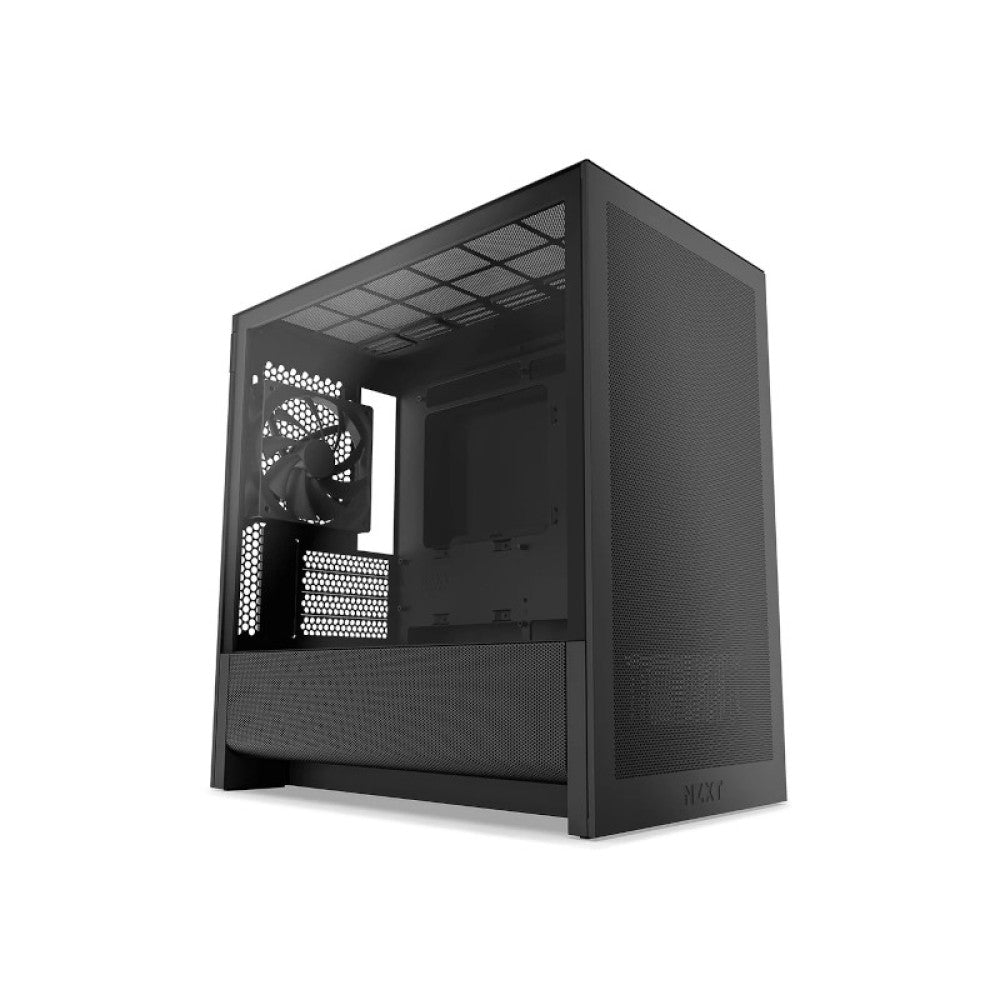

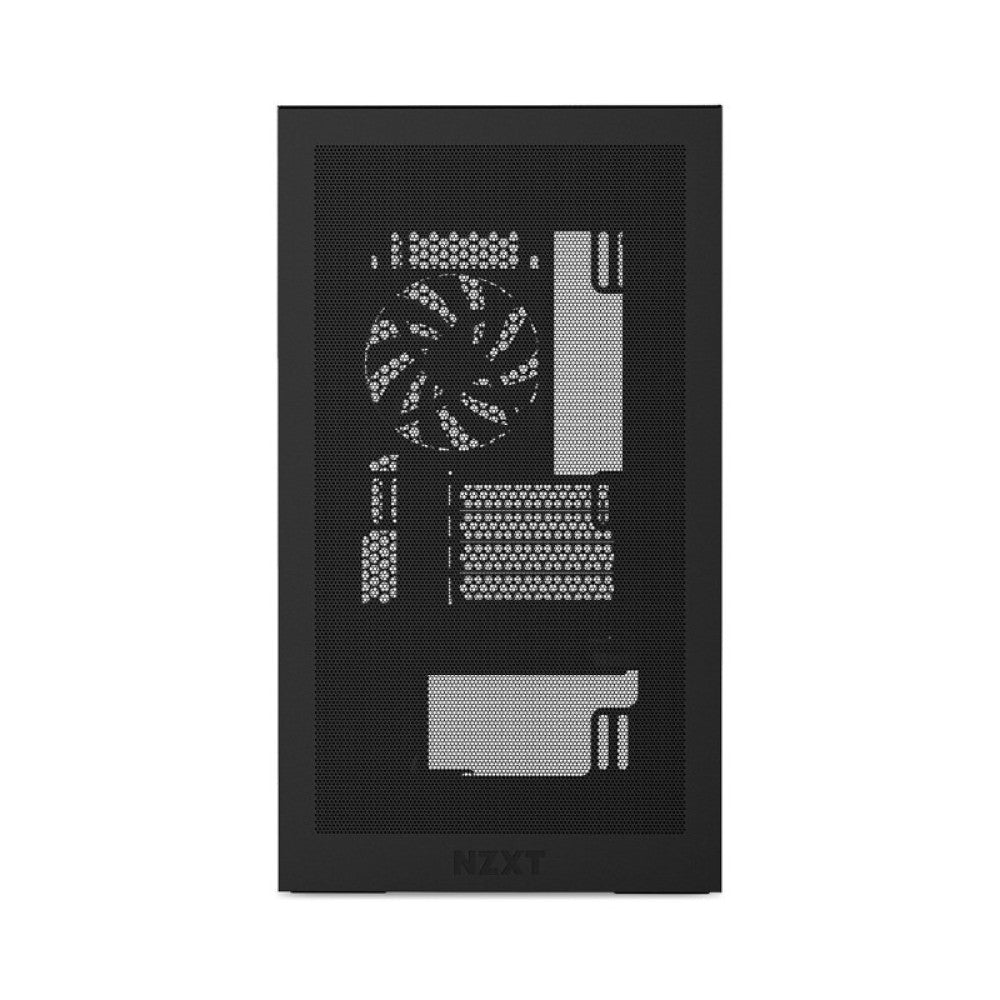

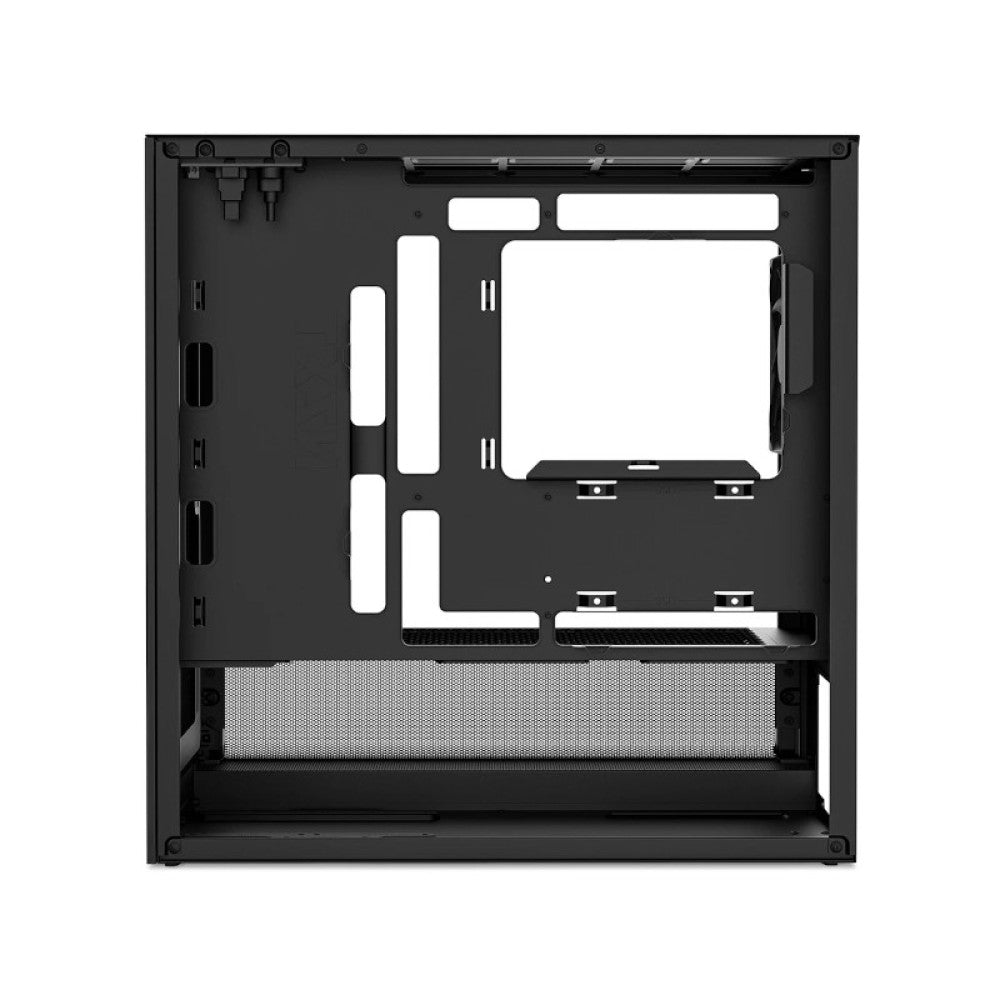

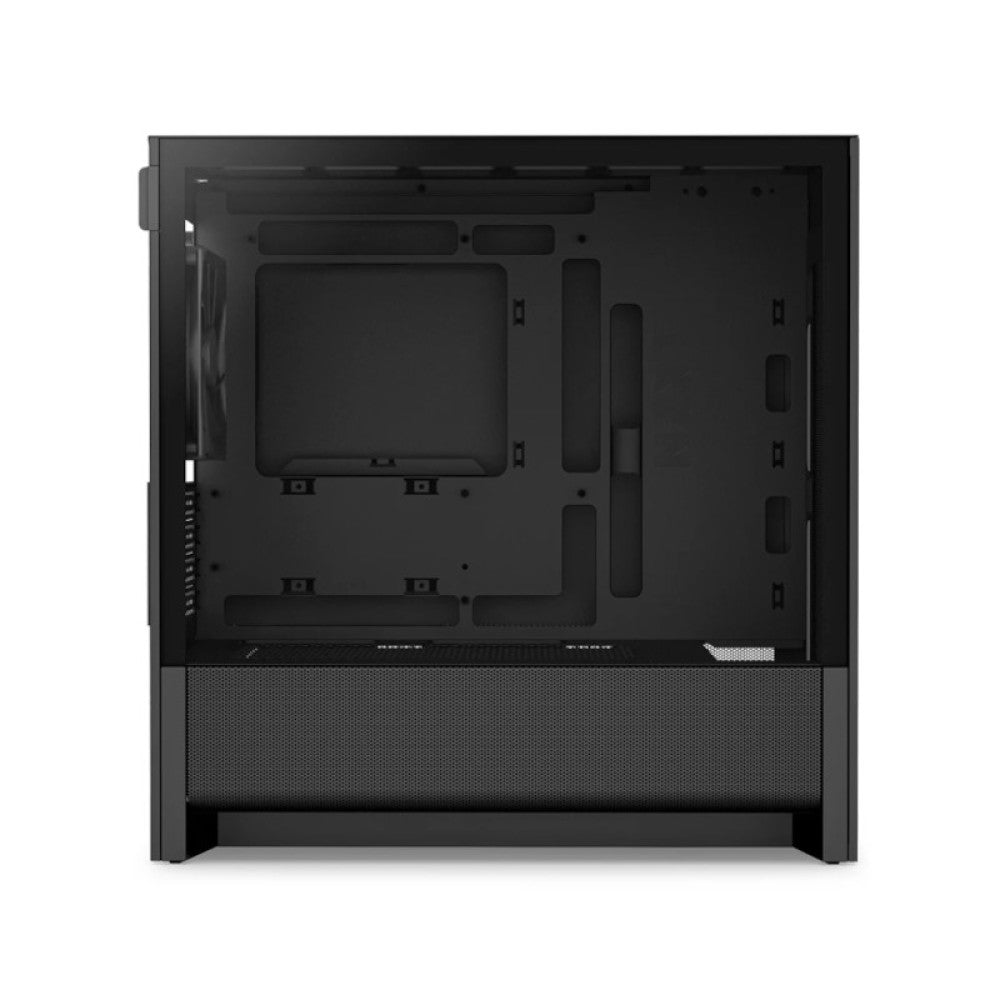

NZXT H3 Flow Mid Tower Cabinet - Black

Model number

CC-H31FB-01

Colour

Black

General

Enclosure Type: Micro-ATX Case

Motherboard Compatibility: Micro-ATX, Mini-ITX

Supports Rear-Connecting Motherboards (BTF, Project Zero): Yes (Micro-ATX)

Materials: SGCC steel, tinted tempered glass (black)

Dimensions

Height (with feet): 400 mm (15.75 in)

Width: 225 mm (8.86 in)

Depth: 389 mm (15.31 in)

Volume: 35.0 L

Weight: 4.8 kg (10.58 lb)

Compatibility & Clearance

CPU Cooler Height: 170 mm

GPU Length: Up to 377 mm (without front fans) / Up to 352 mm (with front fans) / Up to 317 mm (with front radiator and fans)

PSU Length: Up to 185 mm

Cable Routing Space: Up to 31.5 mm

Front Radiator + Fan Thickness : Up to 63 mm

Top Radiator + Fan Thickness : Up to 70 mm

Front I/O Ports

USB 3.2 Type-A: 1

USB 3.2 Gen2x2 Type-C: 1

Expansion Slots

Standard: 4

Vertical: 0

Drive Bays

2.5": 1+2

3.5": 1

Fan Support

Front: 2 x 120 mm / 2 x 140 mm

Top: 2 x 120 mm / 2 x 140 mm

Bottom: 2 x 120 mm

Rear: 1 x 120 mm (1 x F120Q (CV) included)

Radiator Support

Front: Up to 280 mm

Top: Up to 240 mm

Fan Specs

Model: F120Q (CV)

Speed: 1,350 ± 150 RPM

Airflow: 60.2 CFM

Static Pressure: 1.05 mmH2O

Noise: 24.1 dBA

Fan Connector: 3-pin

Warranty

2 years
