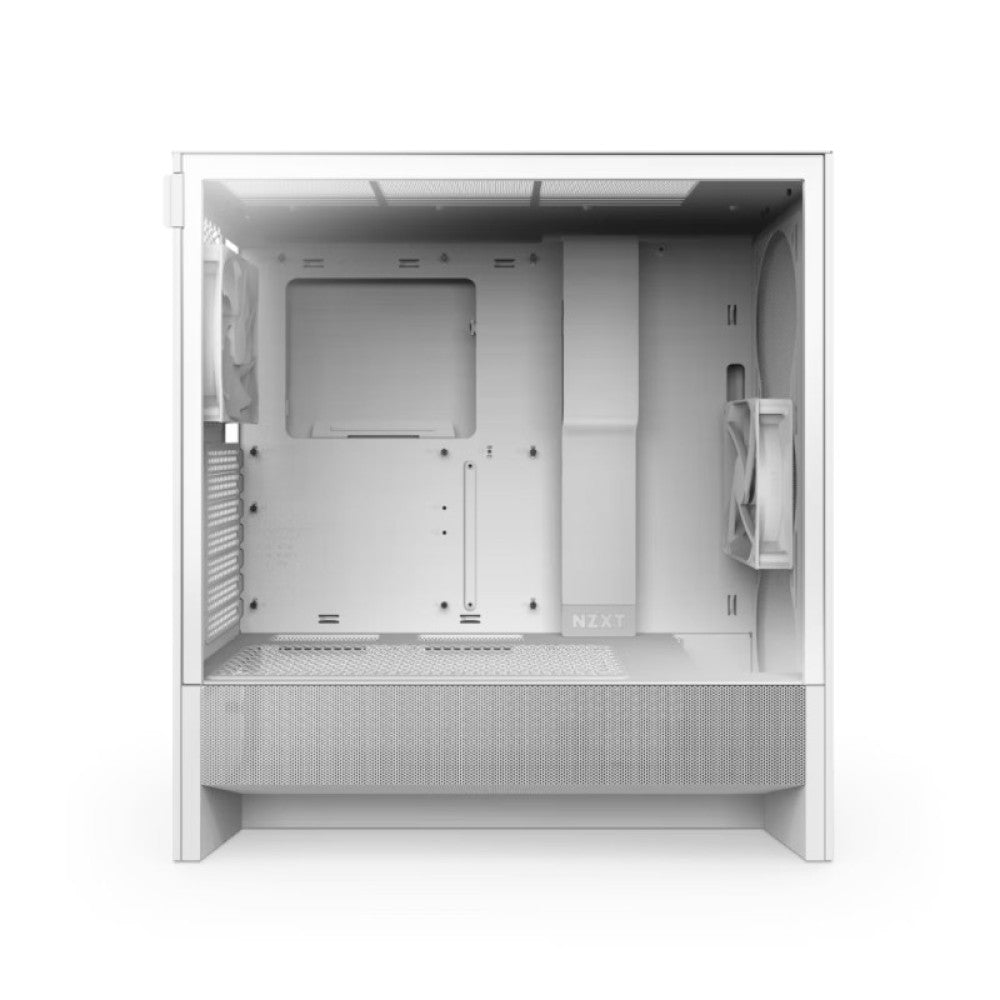

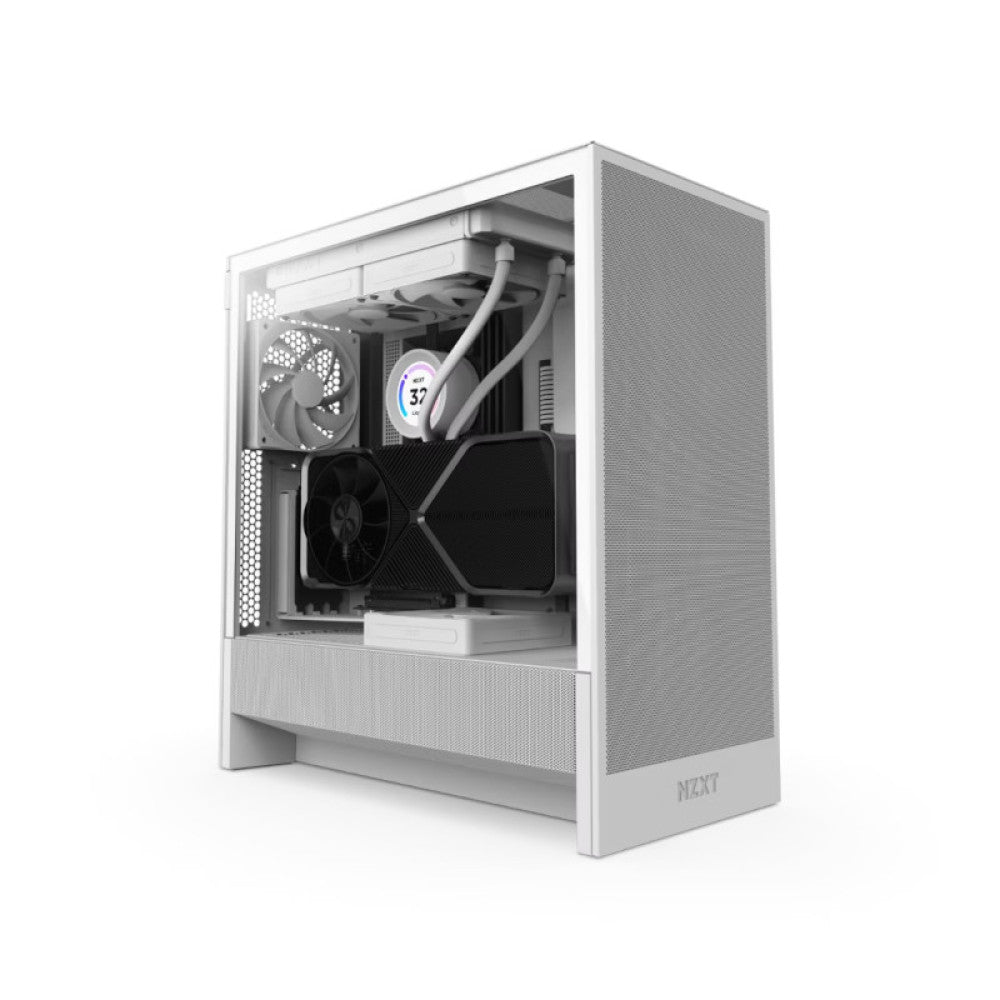

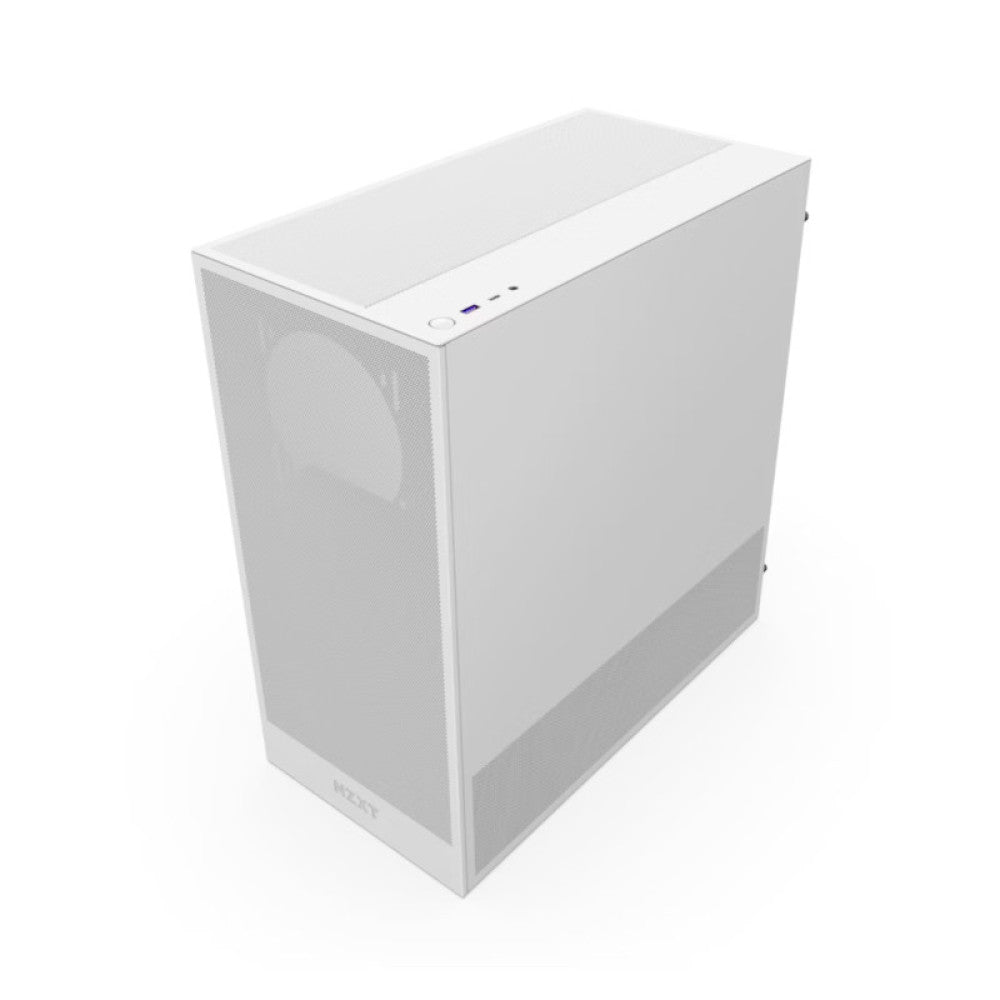

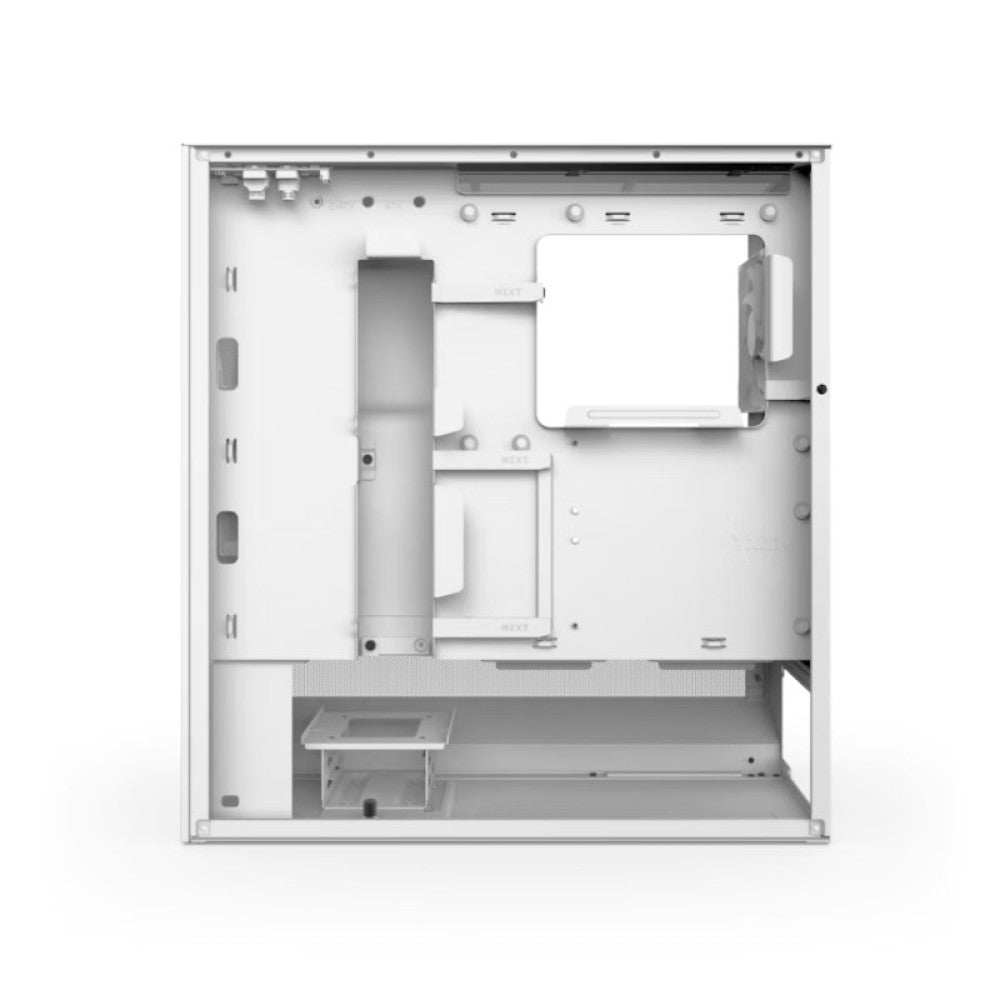

NZXT H5 Flow Mid Tower Cabinet - White
NZXT H5 Flow Mid Tower Cabinet - White
SKU:CC-H52FW-01
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: CC-H52FW-01
The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
|
Product Specification |
|
|
Key Specs |
Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX Enclosure Type: Mid-Tower Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White) |
|
Dimensions |
Height (with feet): 465 mm / 18.31 in Width: 225 mm / 8.86 in Depth: 430 mm / 16.93 in Weight: 7.28 kg / 16.04 lb |
|
Compatibility & Clearance |
CPU Cooler Height: Up to 170 mm GPU Length: Up to 410 mm PSU Length: Up to 200 mm Cable Management: Up to 28.7 mm Top Radiator: Up to 240 mm (280 mm with low-profile memory) Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55 mm |
|
Front Ports |
USB 3.2 Type-A: 1 USB 3.2 Gen 2x2 Type-C (20 Gbps): 1 Headset Audio Jack: 1 |
|
Expansion Slots |
Standard: 7 Vertical: 0 |
|
Drive Bays |
2.5": 2 3.5": 1 |
|
Fan Support |
Front: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included) Top: 2 x 120 mm / 2 x 140 mm Bottom: 2 x 120 mm Rear: 1 x 120 mm (1 x F120Q Case Version included) |
|
Radiator Support |
Front: Up to 360 mm Top: Up to 240 mm (280mm with low-profile memory only) |
|
Fan Specs |
Model: F120Q (Case Version) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static: 1.05 mm-H₂O Noise: 4.1 dBA Fan Connector: 3-pin |
|
Color |
White |
|
Warranty |
2 years |
