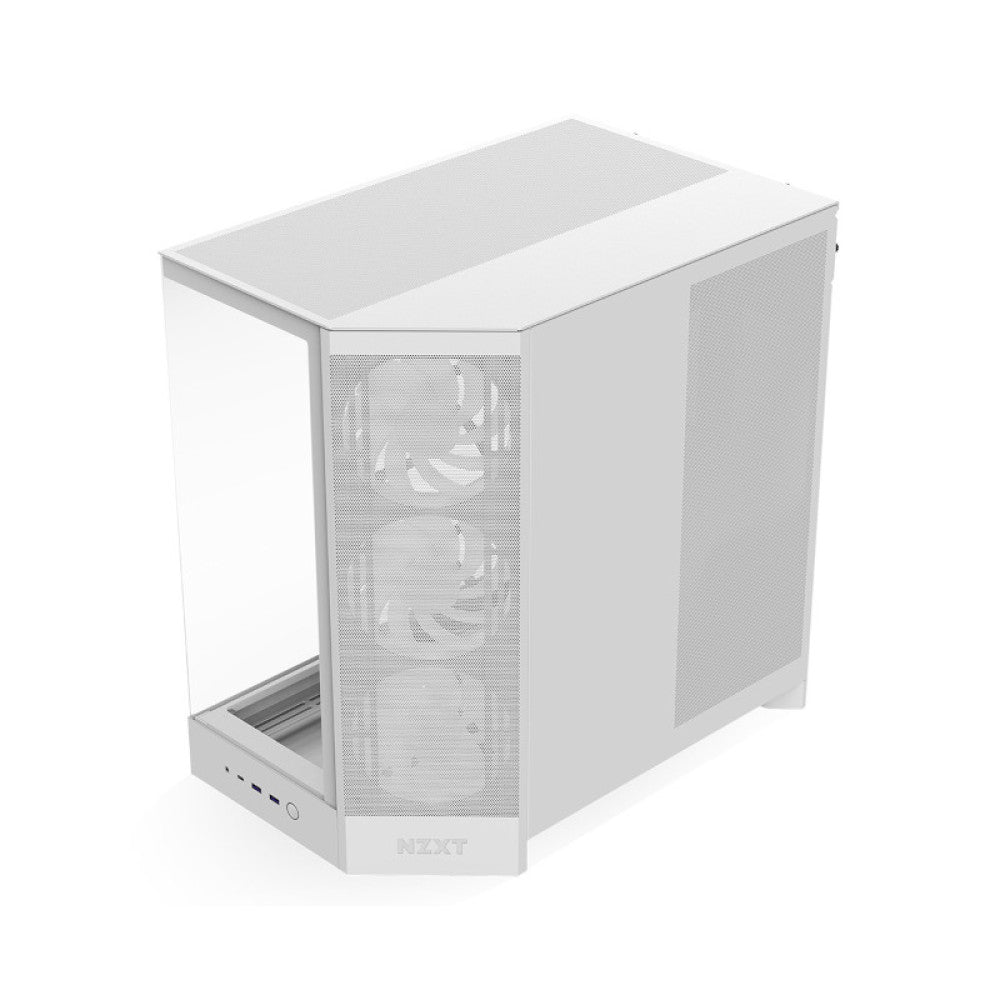

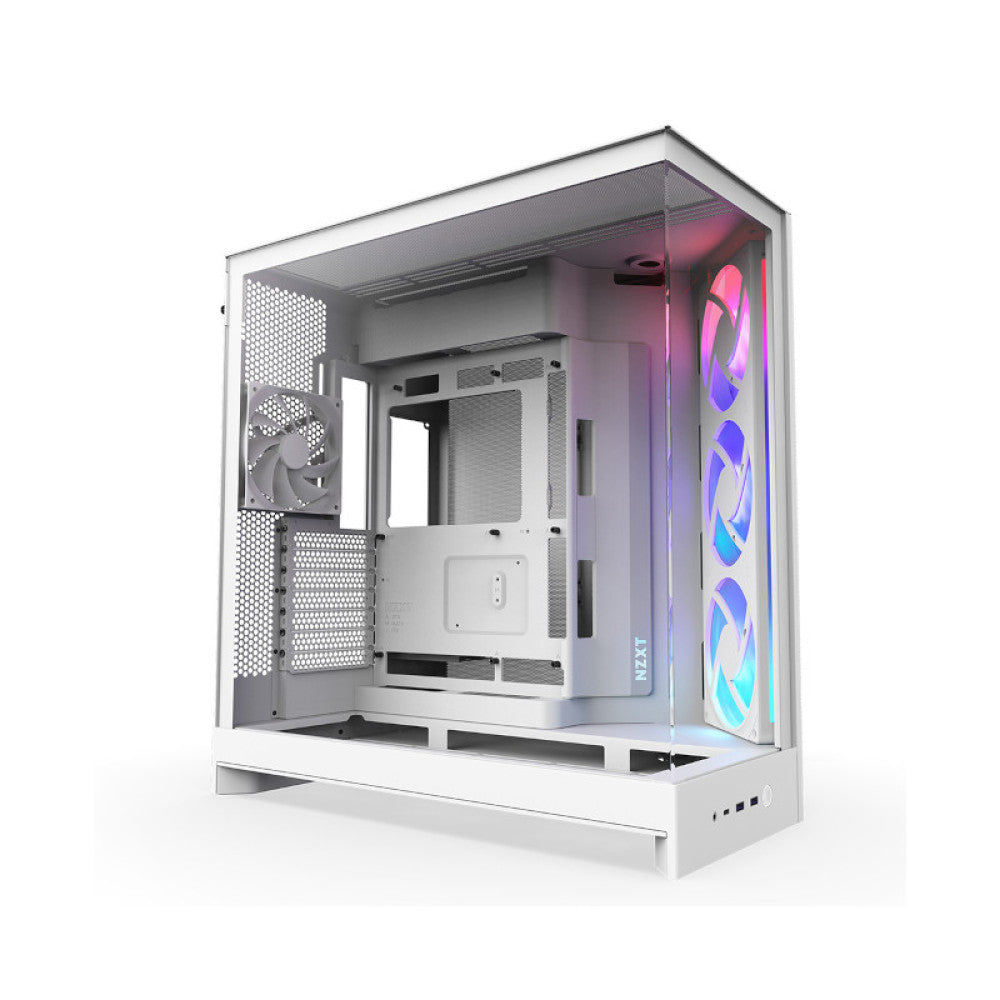

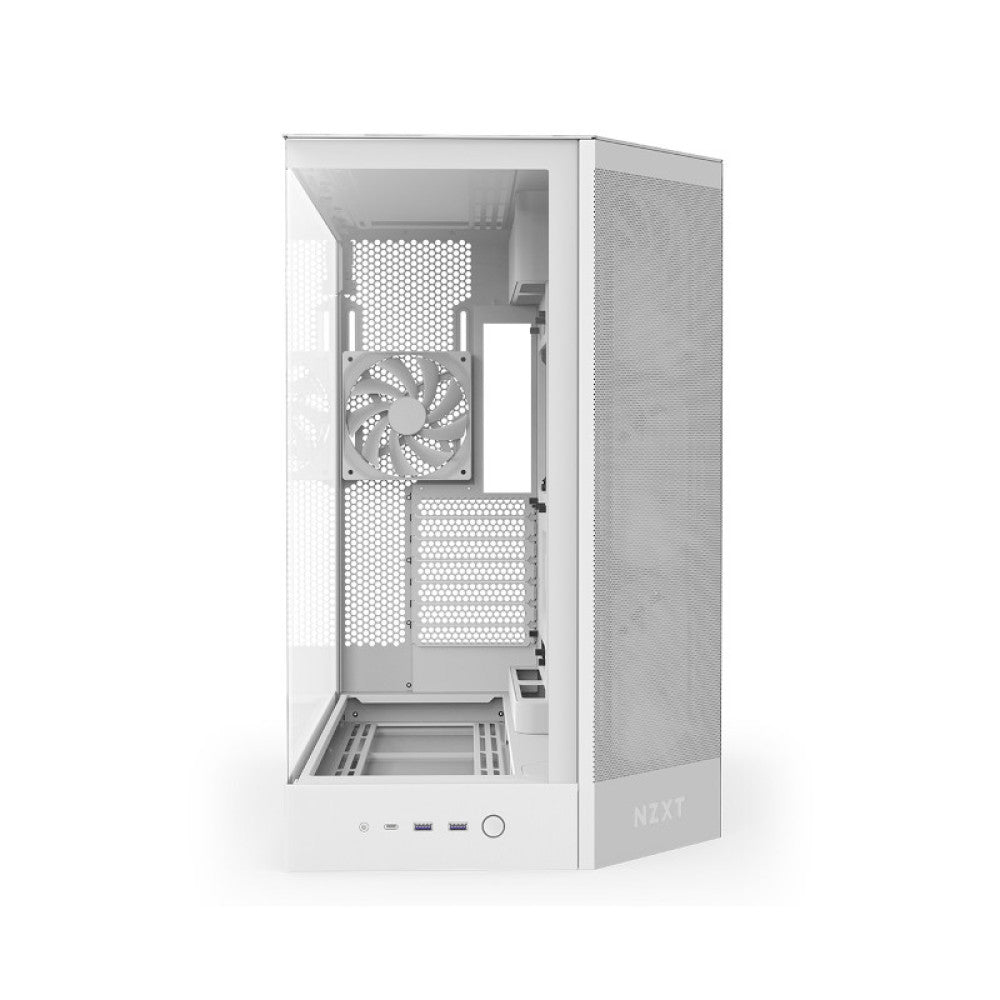

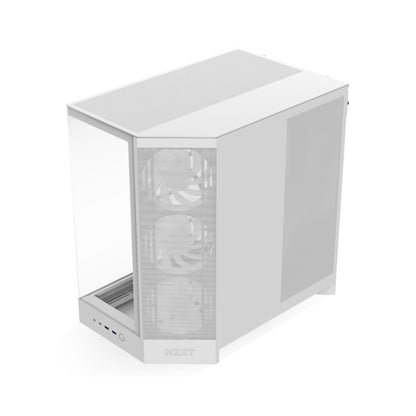

NZXT H9 Flow RGB Mid Tower Cabinet - White

Model number

CM-H92FW-R1

Colour

White

General

Enclosure Type: Mid-tower

Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Supports Rear-Connecting Motherboards (BTF, Project Zero): Yes (Micro-ATX)

Materials: SGCC steel, clear tempered glass (white)

Dimensions

Height (with feet): 506 mm (19.9 in)

Width: 315 mm (12.4 in

Depth: 481 mm (18.9 in)

Volume: 76.7 L

Weight: 12.46 kg (27.47 lb)

Compatibility & Clearance

CPU Cooler Height: 165 mm

GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)

PSU Length: 200 mm

Top Radiator + Fan Thickness : Up to 80 mm (360 mm) / Up to 62 mm (420 mm)

Front I/O Ports

USB 3.2 Type-A: 2

USB 3.2 Gen2x2 Type-C: 1

Headset Jack: 1

Expansion Slots

Standard: 7

Vertical: 0

Drive Bays

2.5": 4+2

3.5": 2

Fan Support

Front: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)

Top: 3 x 120 mm / 3 x 140 mm

Bottom: 3 x 120 mm / 3 x 140 mm

Rear: 1 x 120 mm (1 x F120Q (CV) included)

Radiator Support

Front-Right: Up to 420 mm

Top: Up to 420 mm

Bottom: Up to 360 mm

Rear: Up to 120 mm

Fan Specs

Model: F420 RGB Core

Speed: 2,000 ± 200 RPM

Airflow: 98.61 CFM

Static Pressure: 3.2 mmH2O

Noise: 34.5 dBA

Fan Connector: 8-pin w/ splitter

Fan Specs

Model: F120Q (CV)

Speed: 1,350 ± 150 RPM

Airflow: 60.2 CFM

Static Pressure: 1.05 mmH2O

Noise: 24.1 dBA

Fan Connector: 3-pin

Warranty

2 years
