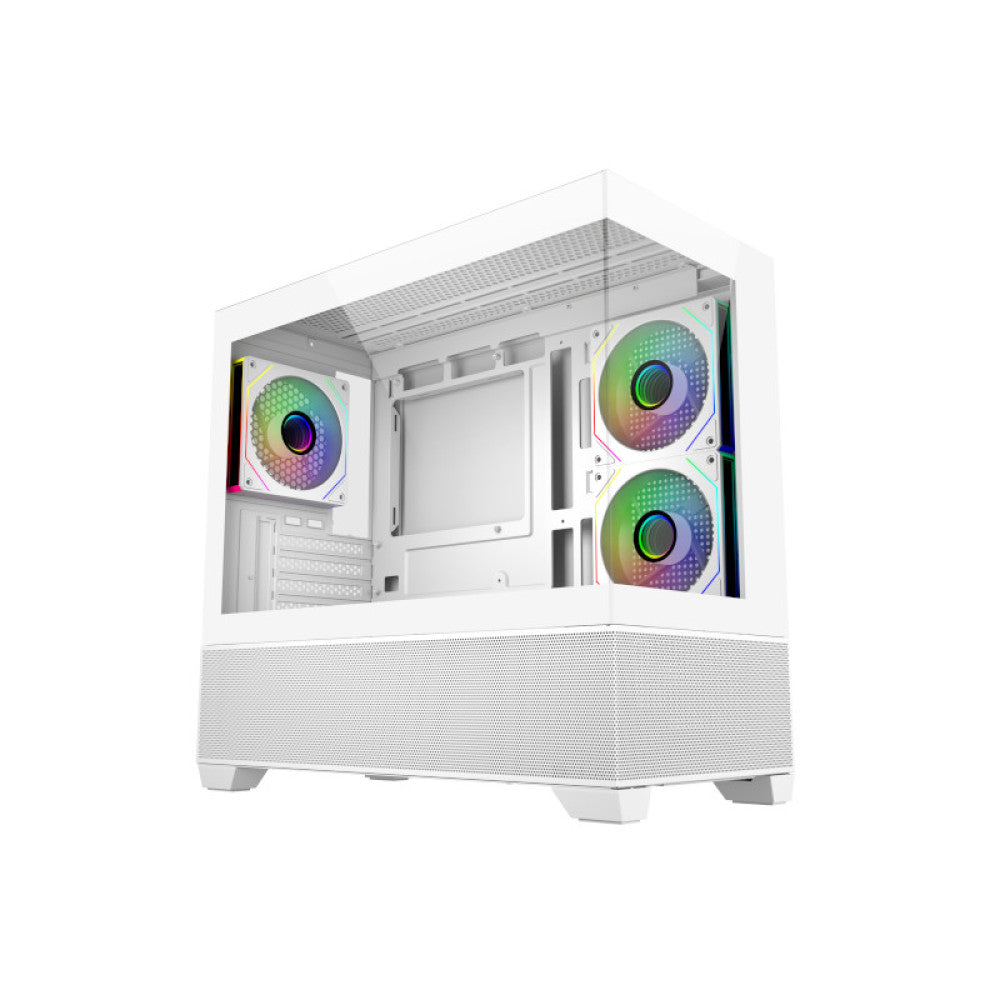

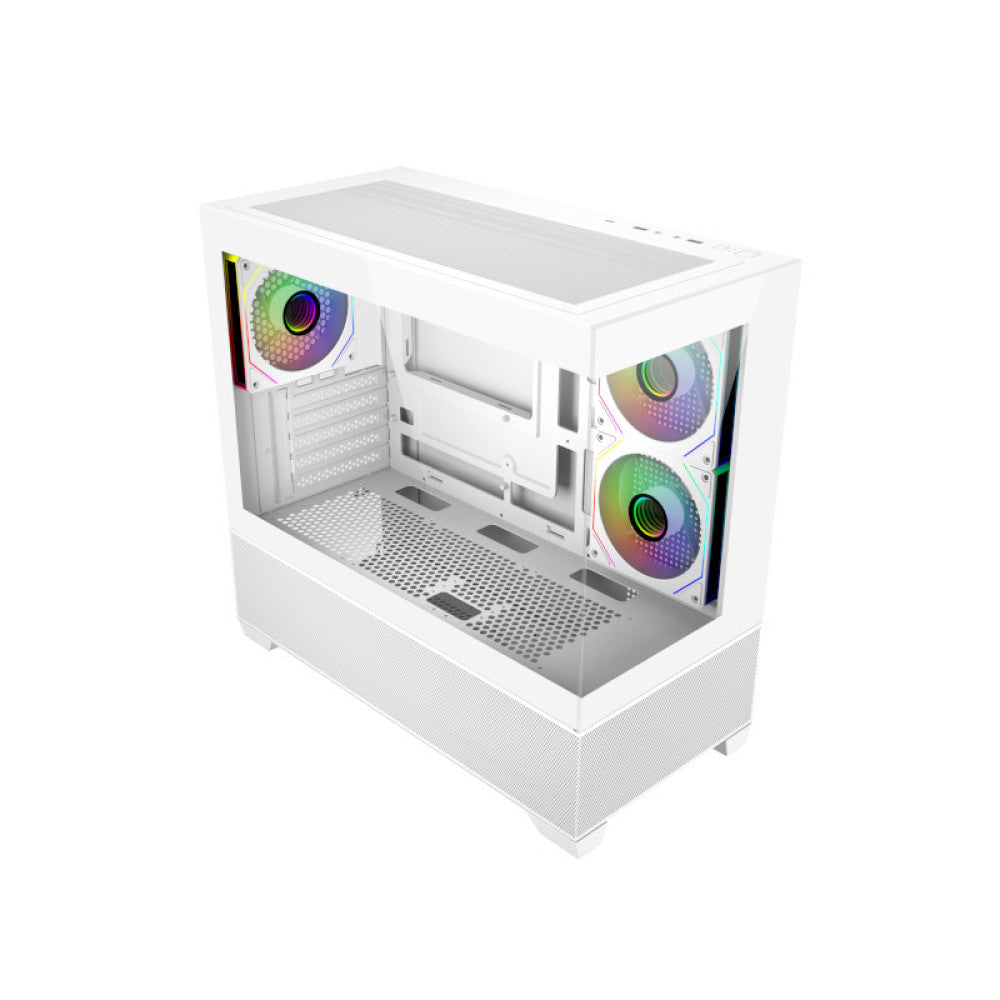

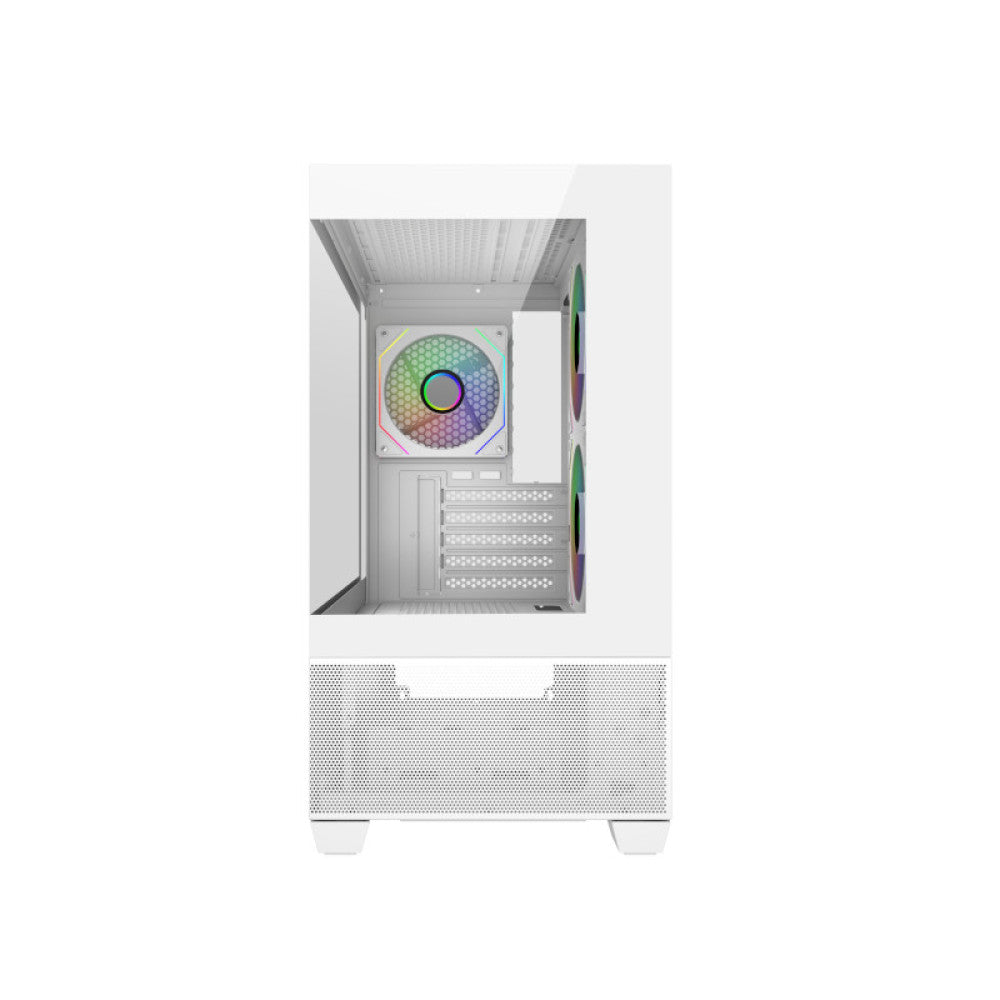

Cooler Master Elite 490 Cabinet - White

Model Number

E490-WHNN-S00

Color

White

Materials

Front Panel: Tempered Glass

Side Panel (Left): Tempered Glass

Side Panel (Right): Steel

Dimensions

 (L x W x H)

Incl. Protrusions: 434 x 218 x 414mm

Excl. Protrusions: 430 x 218 x 395mm

Volume (Liters Incl. Protrusions): 39.16 L

Motherboard Support

Micro-ATX / ITX

Expansion Slots

5

Drive Bays

5.25“ ODD: N/A

3.5” HDD: 1 (Max 2)

2.5” SSD: 1

I/O Panel

USB Ports: 1 x USB Type C 20Gbps / 2 x USB 3.0

Audio In / Out: 1 x 3.5mm Combo

Pre-installed Fan(s)

Rear: 1 x 120mm ARGB PWM

Side: 2 x 120mm ARGB PWM reverse fan

Fan Support

Top: 2 x 140mm / 3 x 120mm

Rear: 1x 120mm

Side: 2 x 120mm

Bottom: 3 x 120mm

Radiator Support

Top: 360 (Max height 45mm) / 240 / 120mm

Bottom: 360 / 240 / 120mm

Side: 240 / 120mm

Clearances

CPU Cooler: 170mm

Power Supply: 250mm

Graphics Card: 425mm

Power Supply Support

ATX

Warranty

2 Years
