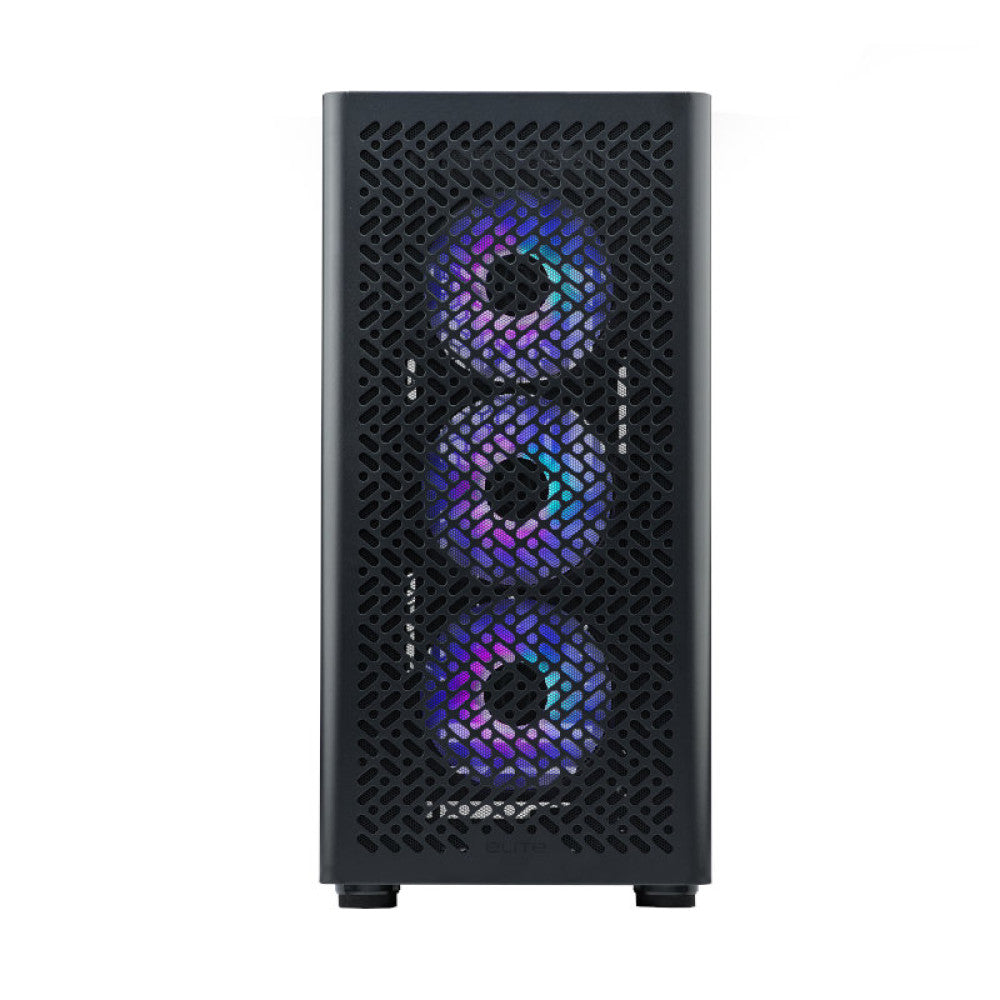

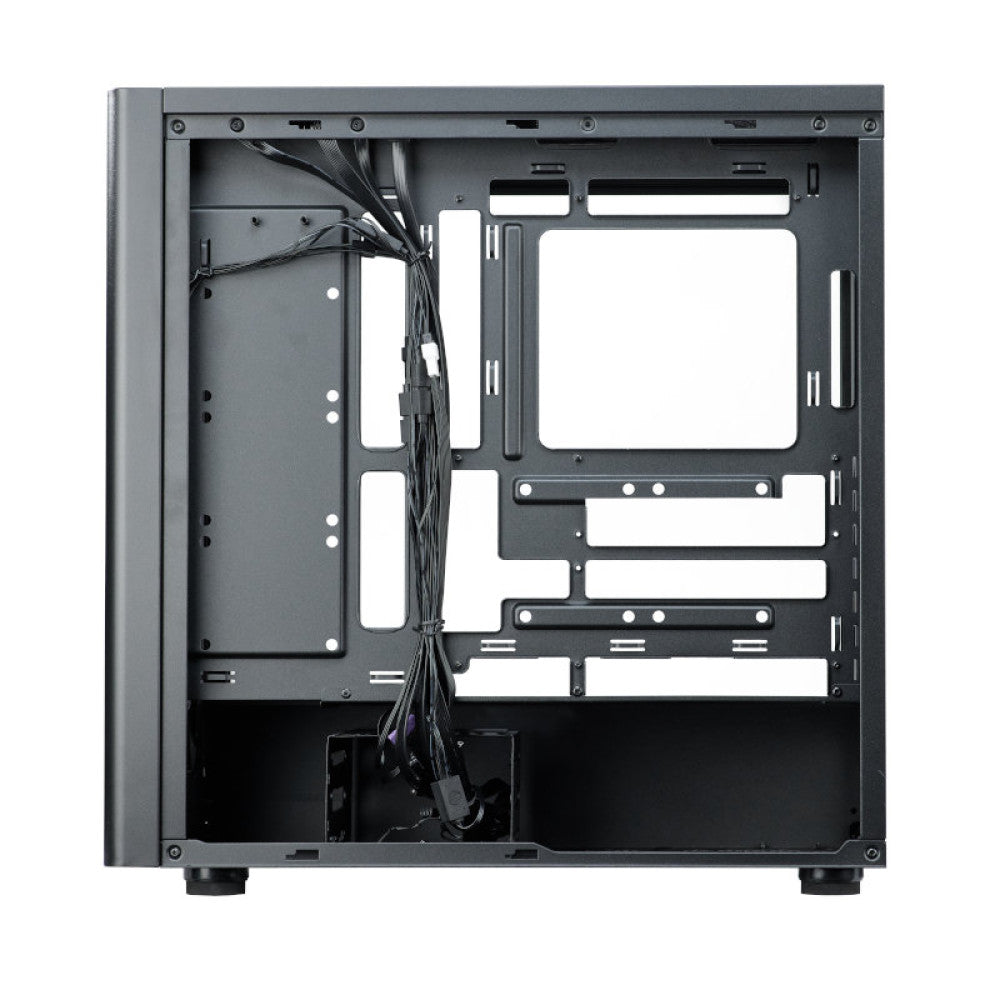

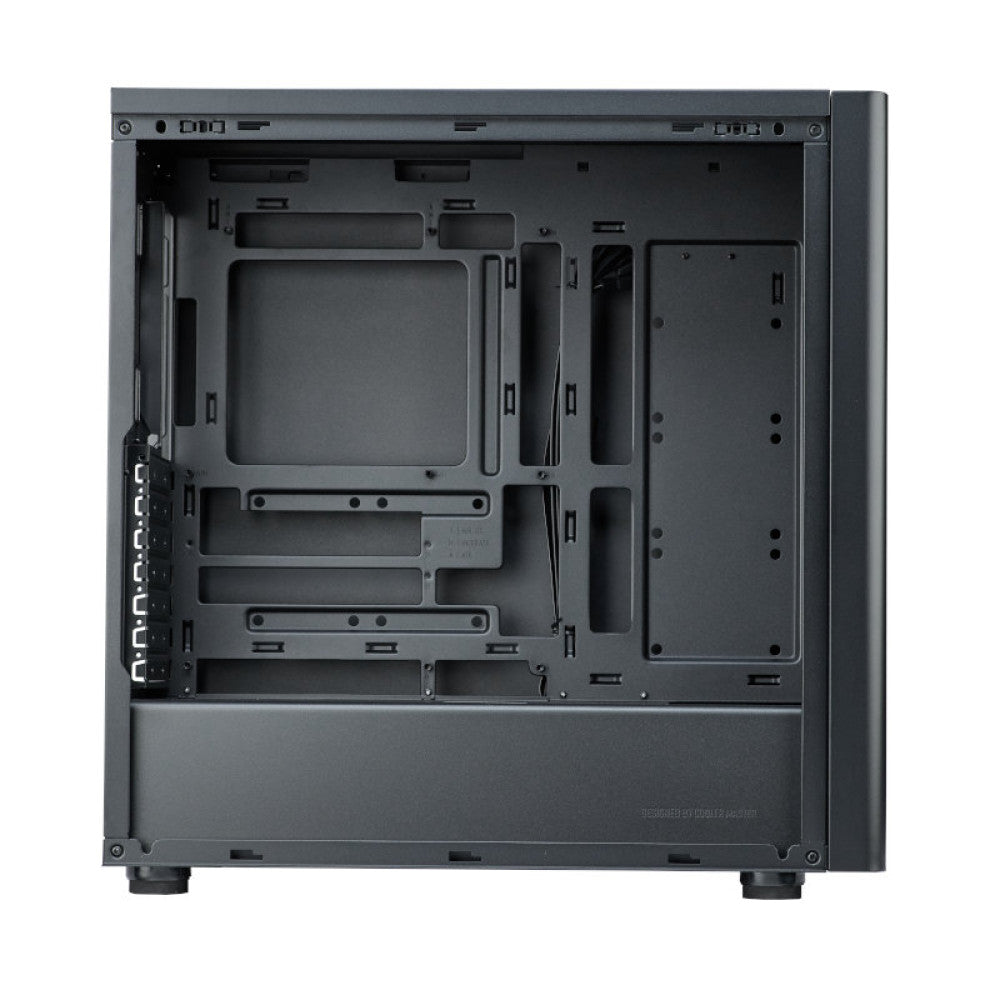

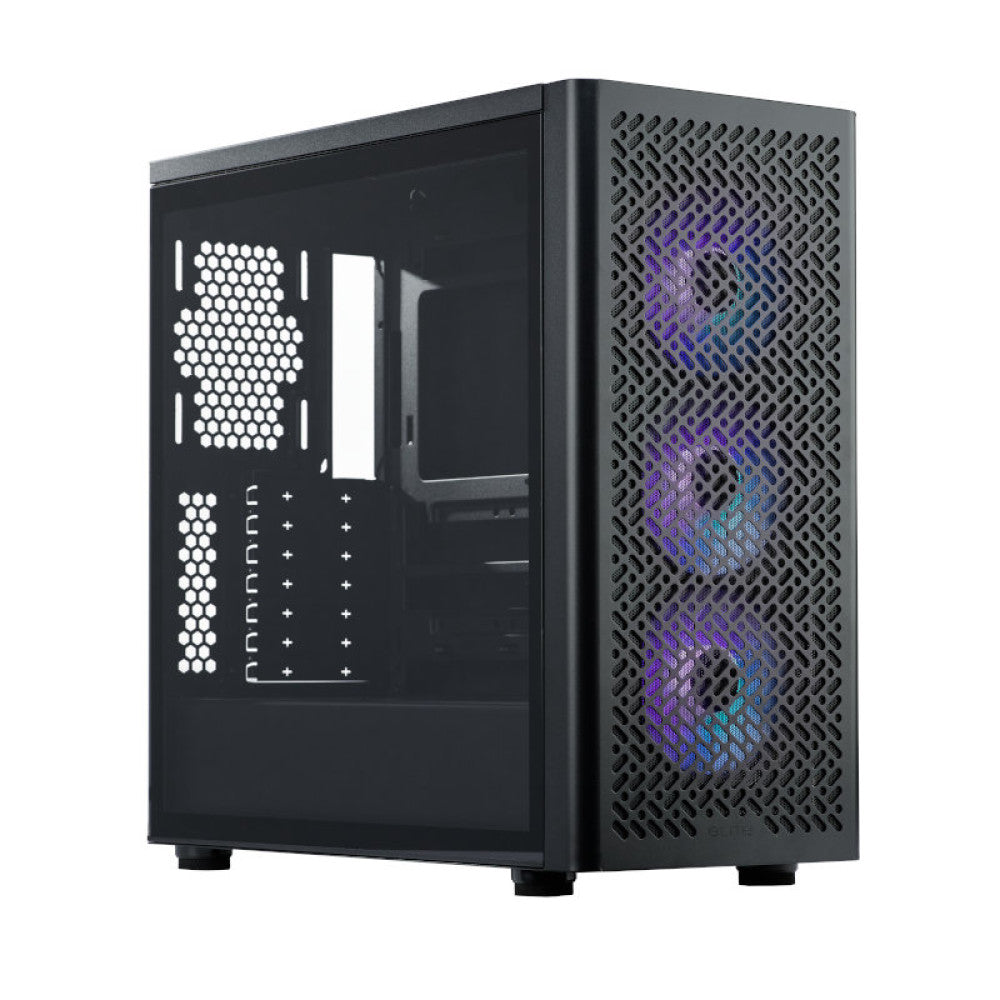

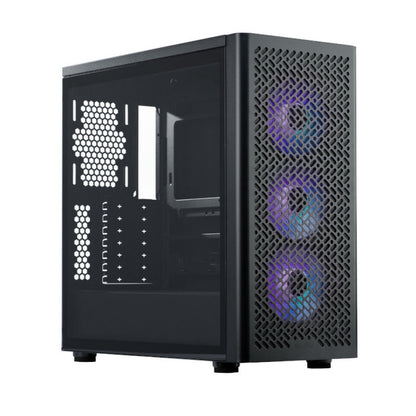

Cooler Master Elite 502 ARGB Cabinet - Black

Model Number

E502-KGNN-S00

Color

Black

Materials

Exterior: Steel

Left Side Panel: Tempered Glass

Right Side Panel: Steel

Dimensions

 (L x W x H)

Incl. Protrusions: 474 x 230 x 481mm

Excl. Protrusions: 435 x 230 x 465 mm

Volume (Liters Incl. Protrusions): 49.73 L

Motherboard Support

ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)

Expansion Slots

7

Drive Bays

5.25“ ODD: N/A

3.5” HDD: 2

2.5” SSD: 2 (Max.6)

I/O Panel

USB Ports: USB 3.2 Gen 1 Type A x 1 / USB 3.2 Gen 1 Type C x 1

Audio In / Out: 1x 3.5mm Combo

Pre-installed Fan(s)

Front: 120 mm x 3 ARGB

Fan Support

Front (Filtered): 140 mm x 3 / 120 mm x 3

Top (Filtered): 140 mm x 2 / 120 mm x 3

Rear: 120 mm x 1

Radiator Support

Front: 120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)

Top: 120 / 140 / 240 / 280 / 360 mm

Rear: 120mm

Clearances

CPU Cooler: 170 mm

Power Supply: 170 / 210mm (w/o HDD Cage)

Graphics Card: 360 / 410 mm (w/o front radiator)

Cable Routing(Behind MB Tray): 33 – 35 mm

Dust Filters

Top/Bottom/Front

Power Supply Support

ATX

Warranty

2 Years
