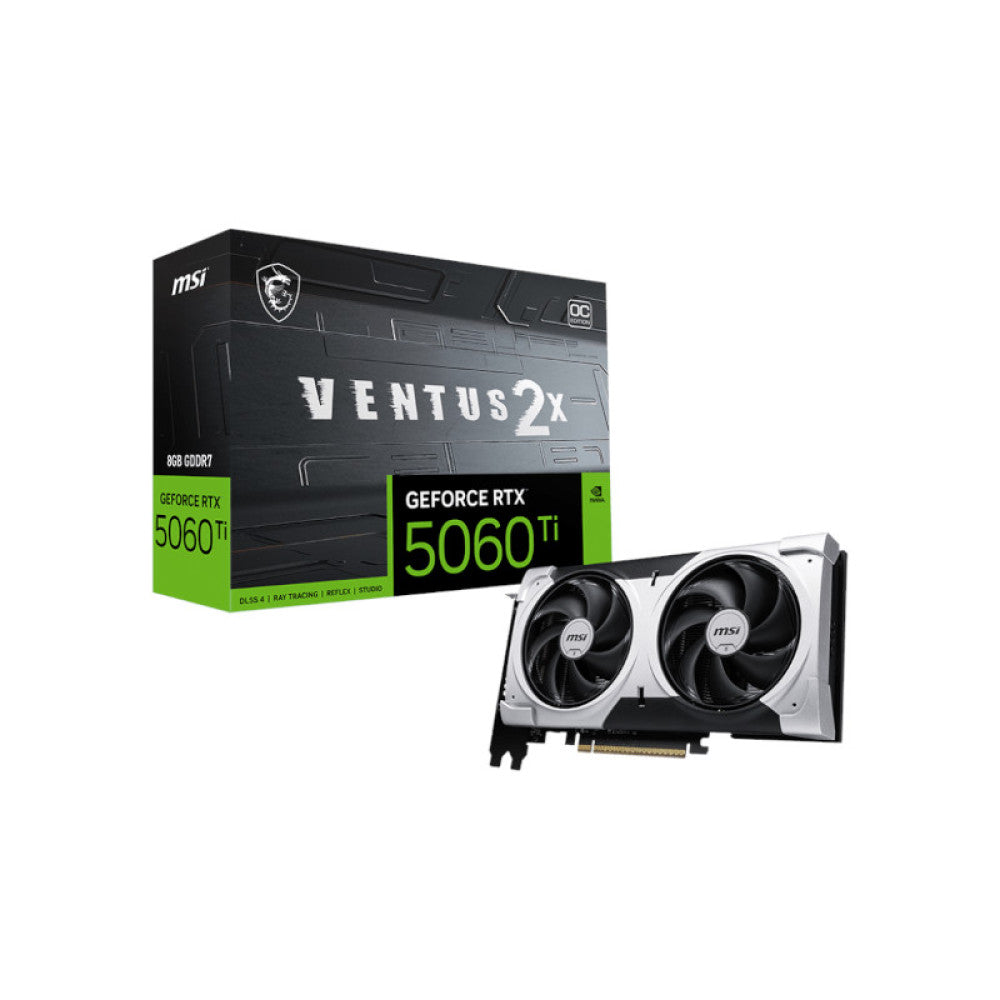

MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 8GB GDDR7
MSI GeForce RTX 5060 Ti Ventus 2X OC Plus 8GB GDDR7
SKU:G506T-8V2CP
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card

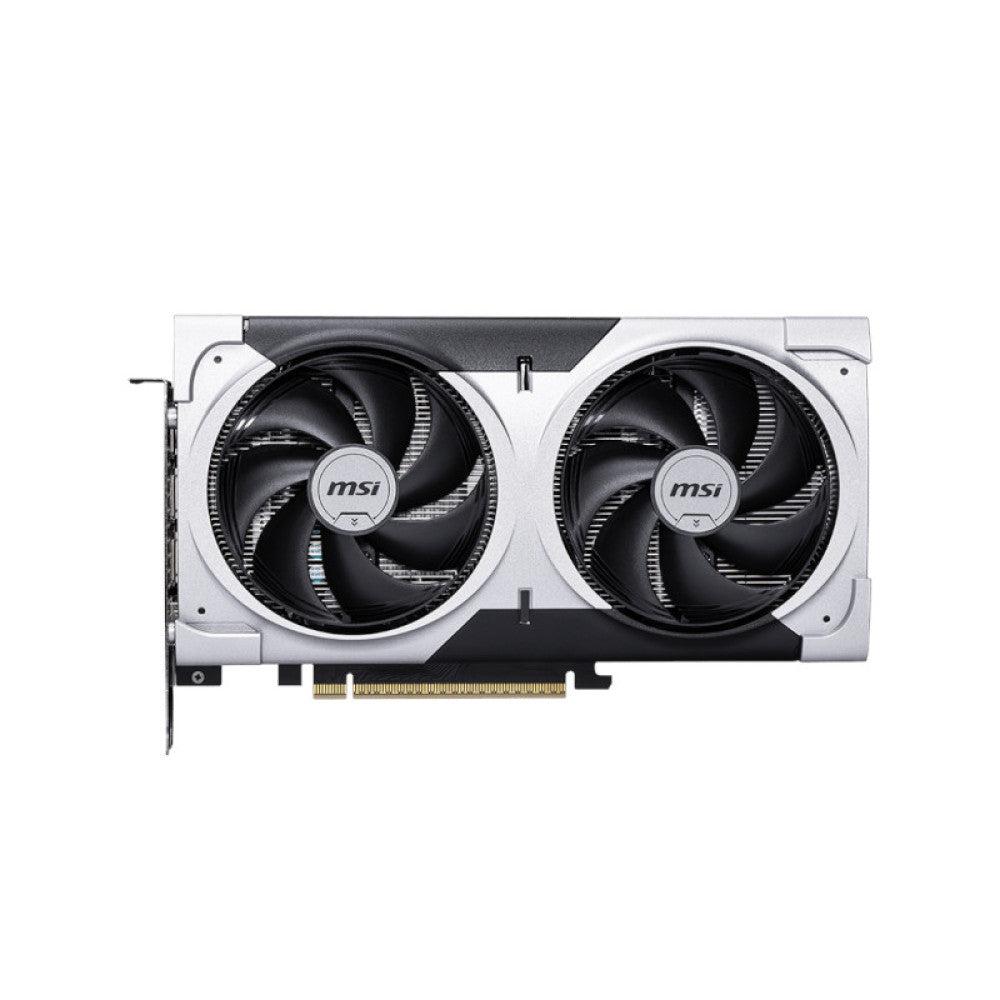

- STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

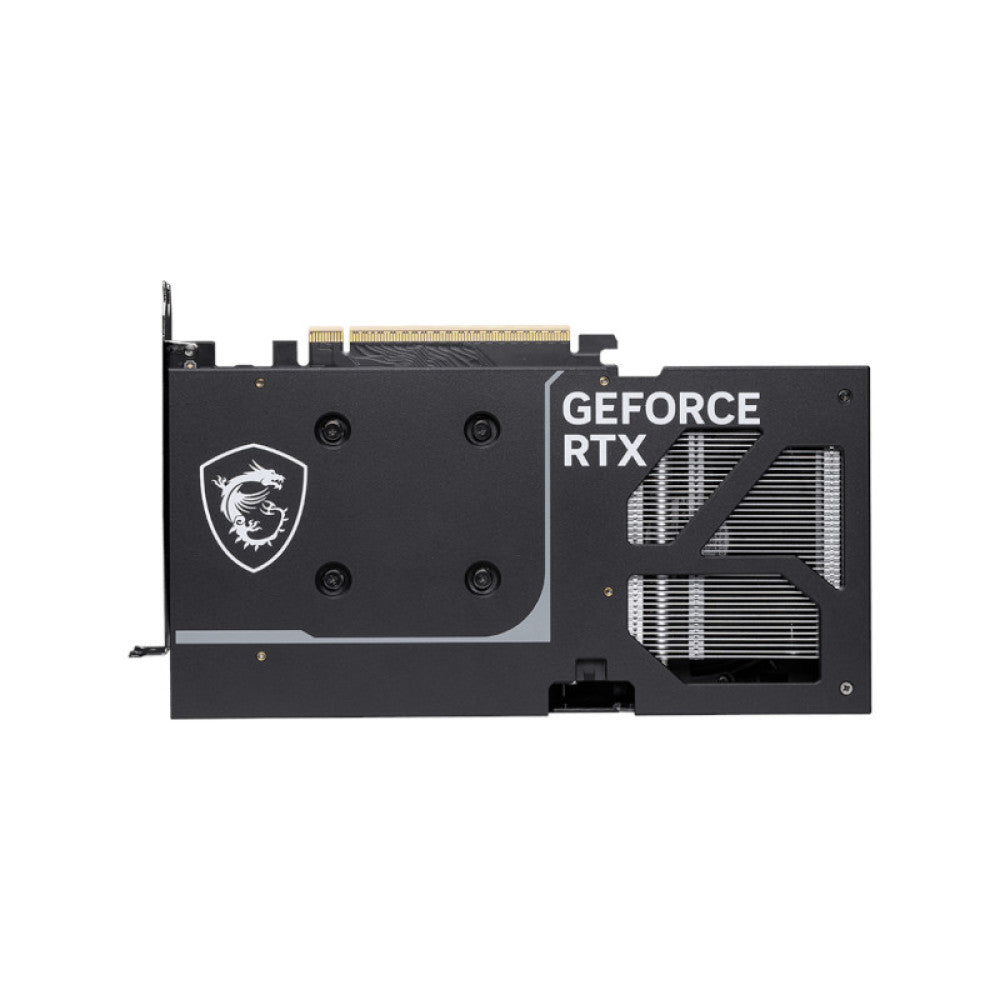

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
|
Product Specification |
|
|
MARKETING NAME |
GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS |
|
MODEL NAME |
G506T-8V2CP |
|
GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 5060 Ti |
|
INTERFACE |
PCI Express® Gen 5 x16 (uses x8) |
|
CORE CLOCKS |
Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
|
CUDA® CORES |
4608 Units |
|
MEMORY SPEED |
28 Gbps |
|
MEMORY |
8GB GDDR7 |
|
MEMORY BUS |
128-bit |
|
OUTPUT |

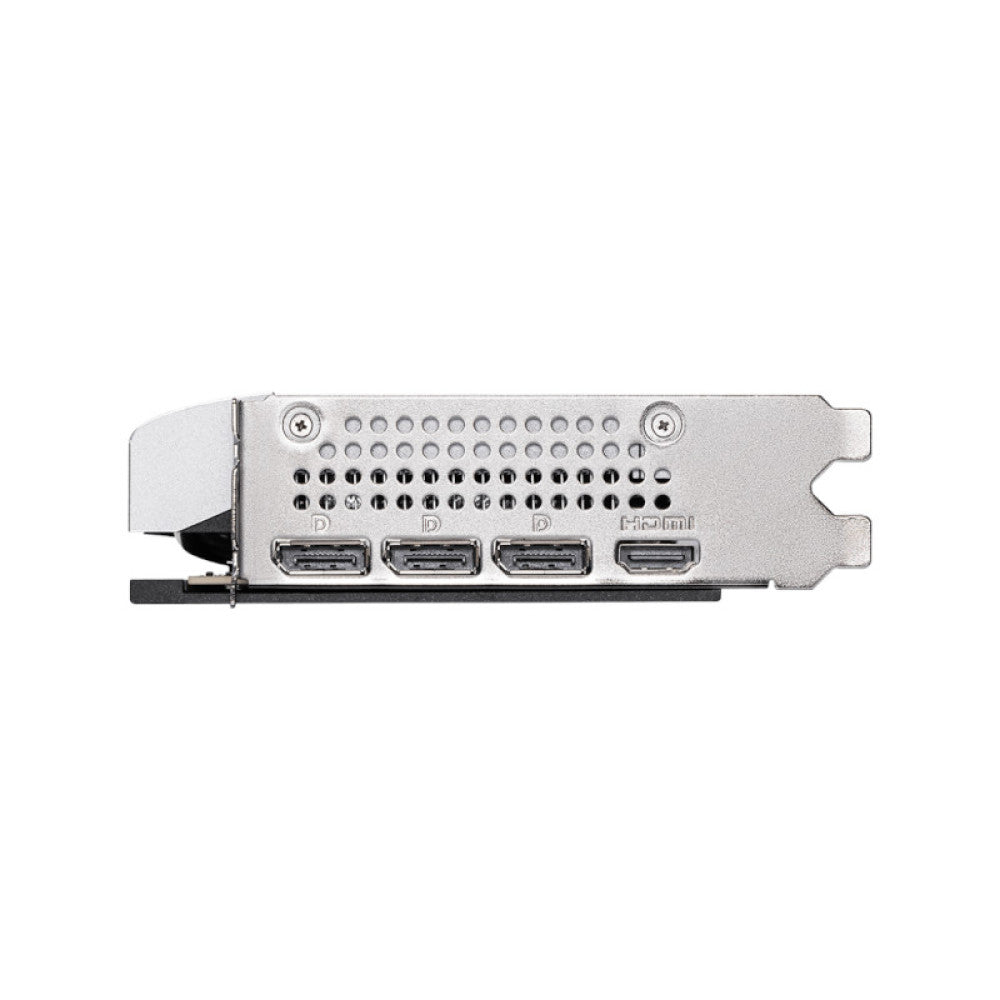

DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
|
HDCP SUPPORT |
Y |
|
POWER CONSUMPTION |
180 W |
|
POWER CONNECTORS |
8-pin x1 |
|
RECOMMENDED PSU |
600 W |
|
CARD DIMENSION (MM) |
227 x 127 x 41 mm |
|
WEIGHT (CARD / PACKAGE) |
573 g / 834 g |
|
DIRECTX VERSION SUPPORT |
12 Ultimate |
|
OPENGL VERSION SUPPORT |
4.6 |
|
MAXIMUM DISPLAYS |
4 |
|
G-SYNC® TECHNOLOGY |
Y |
|
DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
|
WARRANTY |
3 Years |
