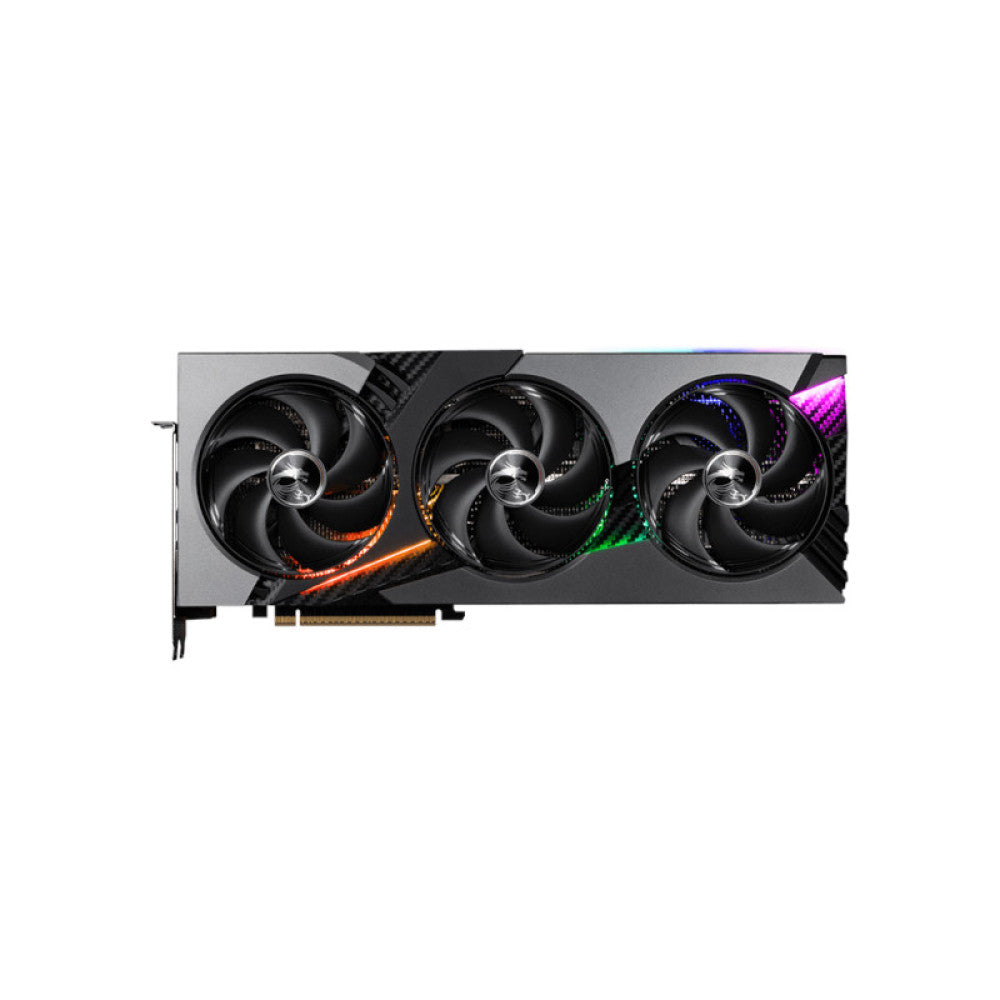

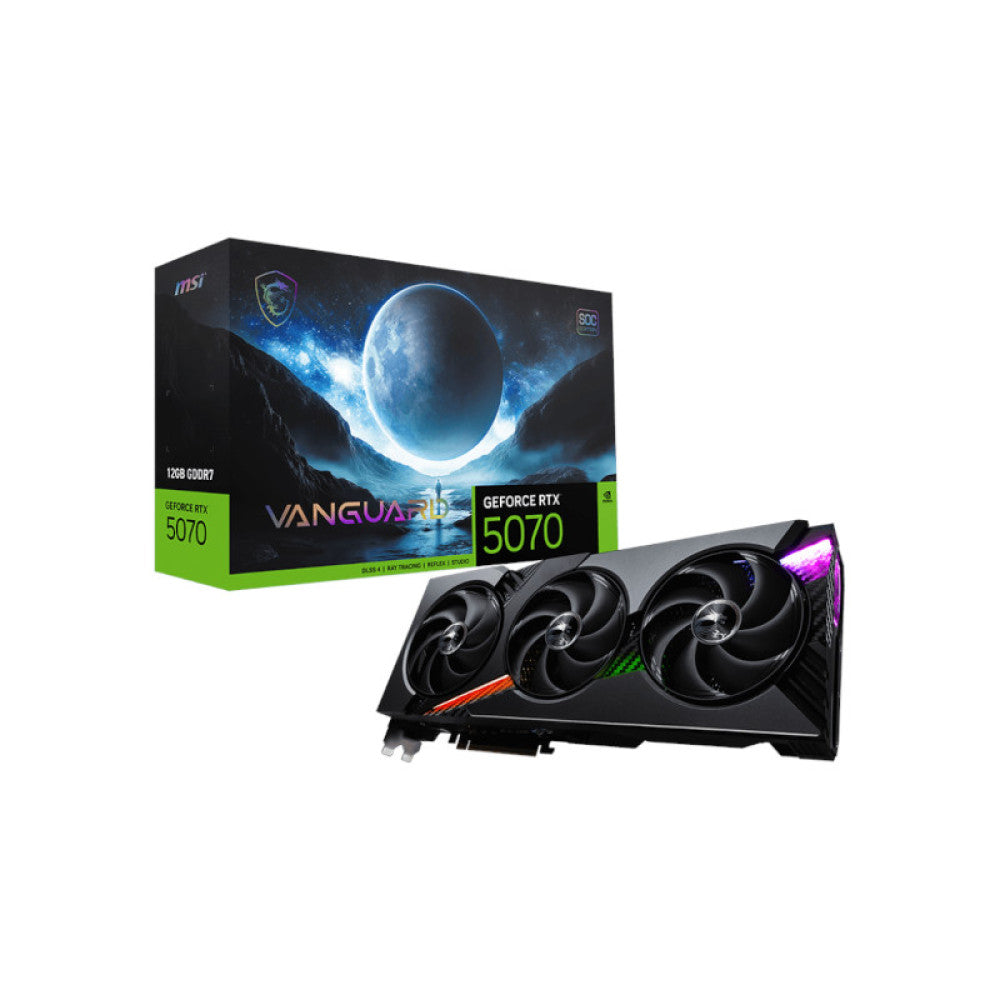

MSI GeForce RTX 5070 Vanguard SOC 12GB GDDR7
MSI GeForce RTX 5070 Vanguard SOC 12GB GDDR7
SKU:G5070-12VGS
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
- Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
- Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

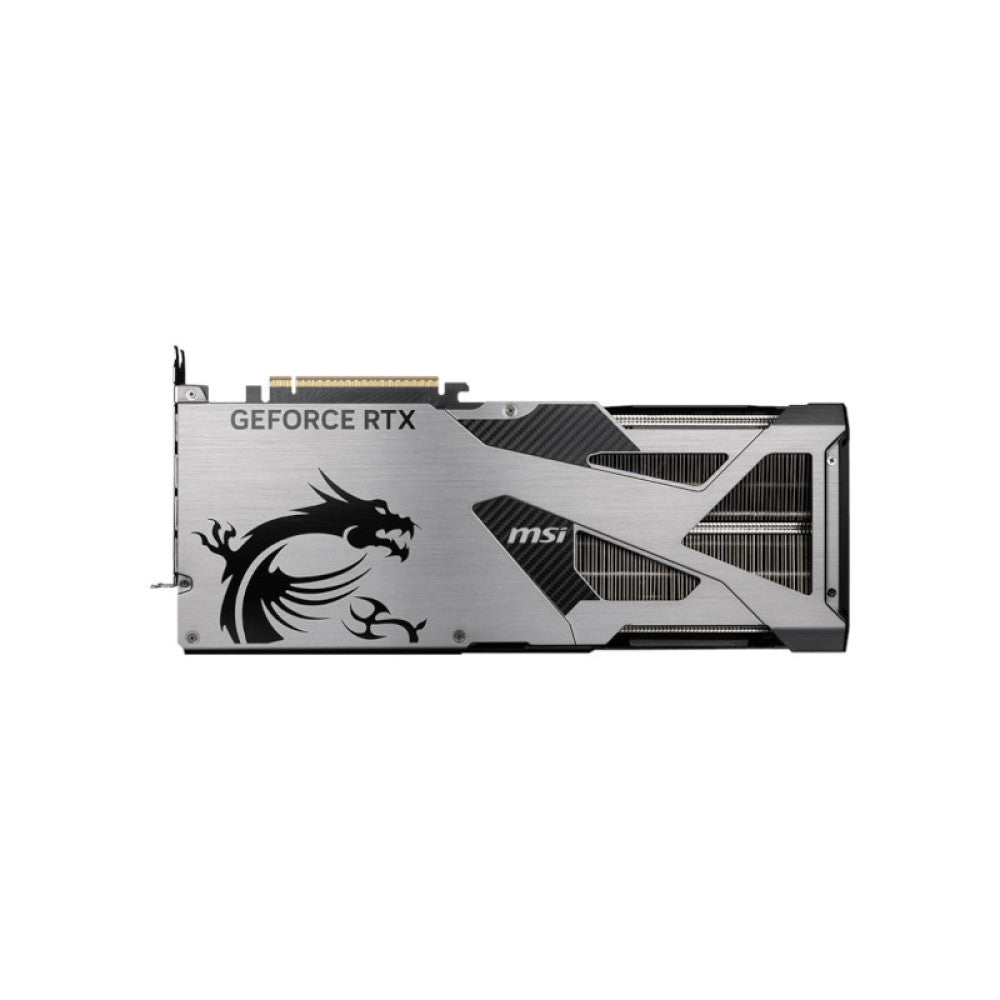

- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.
Product Specification |
|
MARKETING NAME |
GeForce RTX™ 5070 12G VANGUARD SOC |
MODEL NAME |
G5070-12VGS |
GRAPHICS PROCESSING UNIT |
NVIDIA® GeForce RTX™ 5070 |
INTERFACE |
PCI Express® Gen 5 |
CORE CLOCKS |
Extreme Performance: 2655 MHz (MSI Center) Boost: 2640 MHz |
CUDA® CORES |
6144 Units |
MEMORY SPEED |
28 Gbps |
MEMORY |
12GB GDDR7 |
MEMORY BUS |
192-bit |
OUTPUT |

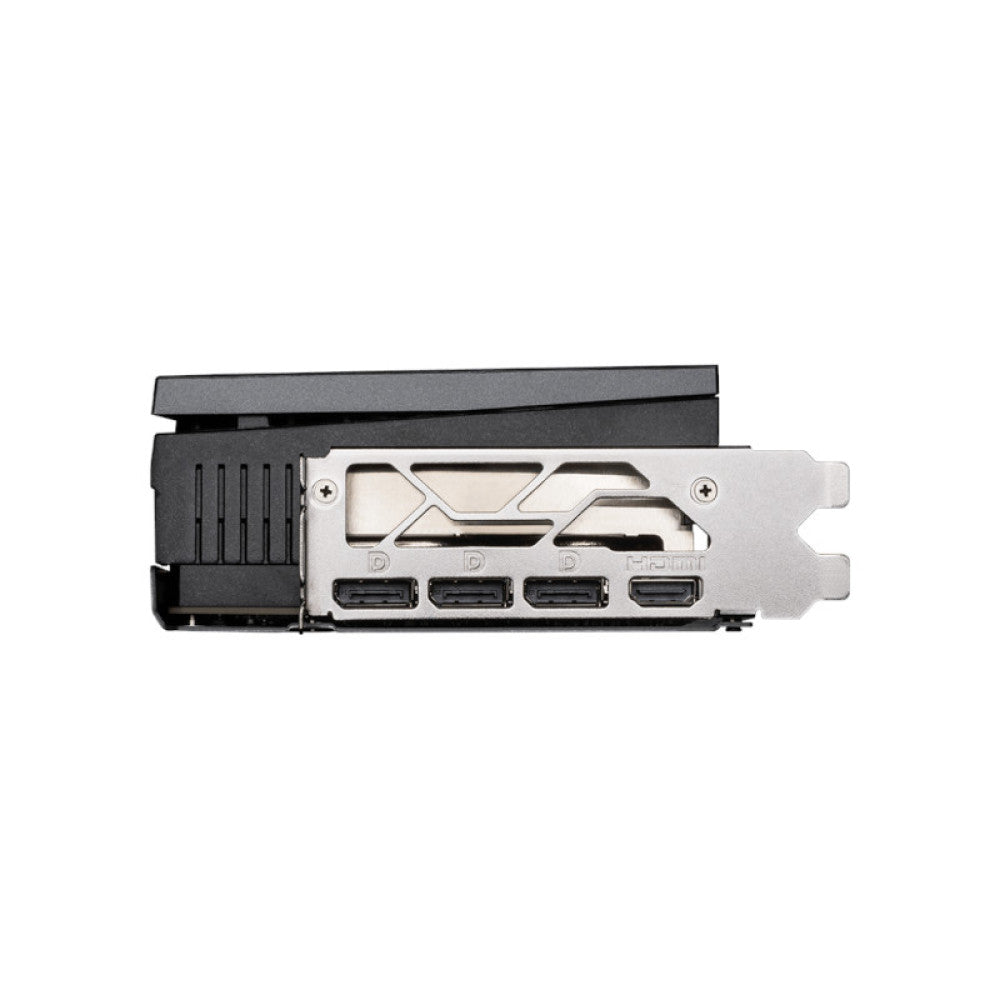

DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP SUPPORT |
Y |
POWER CONSUMPTION |
250W |
POWER CONNECTORS |
16-pin x 1 |
RECOMMENDED PSU |
650W |
CARD DIMENSION (MM) |
337 x 140 x 61 mm |
WEIGHT (CARD / PACKAGE) |
1503 g / 2296 g |
DIRECTX VERSION SUPPORT |
12 Ultimate |
OPENGL VERSION SUPPORT |
4.6 |
MAXIMUM DISPLAYS |
4 |
G-SYNC® TECHNOLOGY |
Y |
DIGITAL MAXIMUM RESOLUTION |
7680 x 4320 |
WARRANTY |
3 Years |
