Gigabyte UD750GM 80 Plus Gold Fully Modular Power Supply
Gigabyte UD750GM 80 Plus Gold Fully Modular Power Supply
SKU:GP-UD750GM
!! Please Verify Product Availability and Pricing before Placing an Order, as Prices may vary due to Market Volatility !! For Confirmation, Please Call/WhatsApp: +91 9382450367
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: GP-UD750GM
- Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 120mm smart hydraulic bearing (HYB) fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact design
- 5 years warranty (Adjusted according to different regions)
|
Product Specification |
|
|
Model |
GP-UD750GM |
|
Type |
Intel Form Factor ATX 12V v2.31 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
12-6A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
750W |
|
Dimension |
150 x 140 x 86 mm |
|
Fan Type |

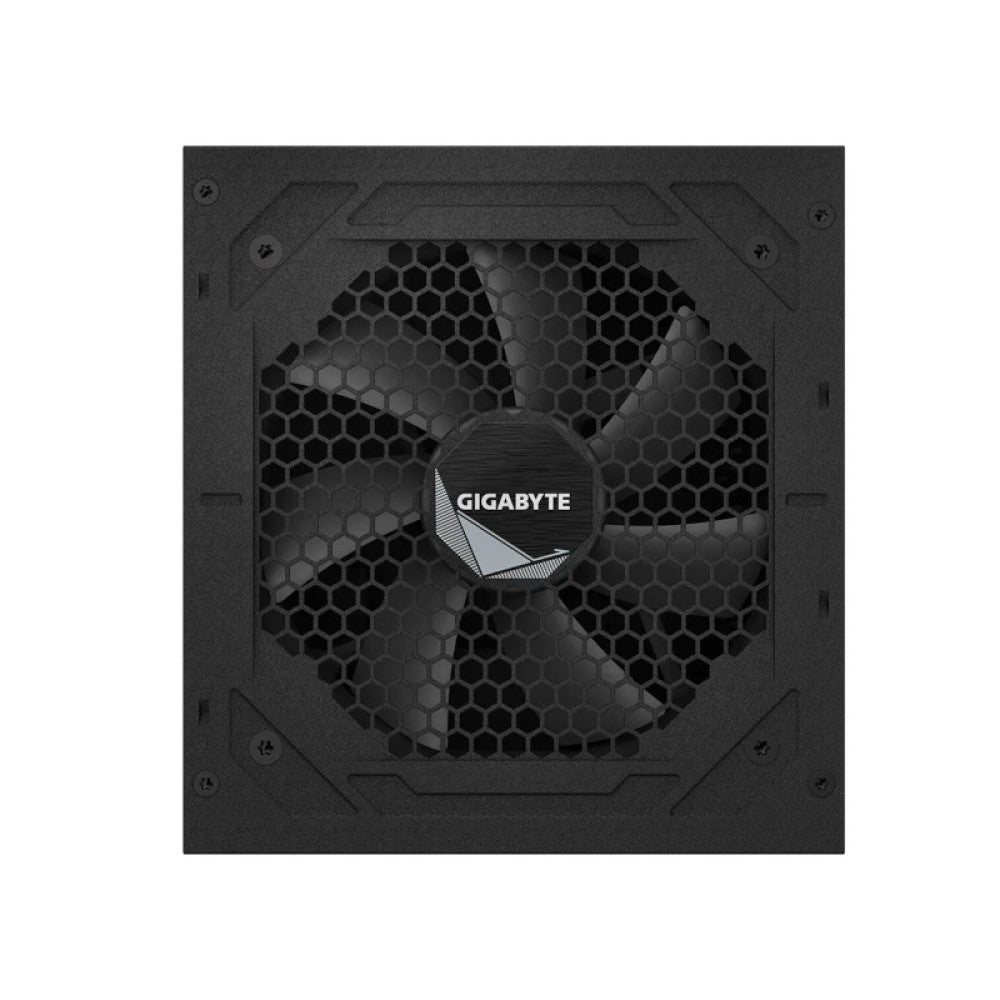

120mm Hydraulic Bearing(HYB)fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Flat, All black |
|
Connectors |

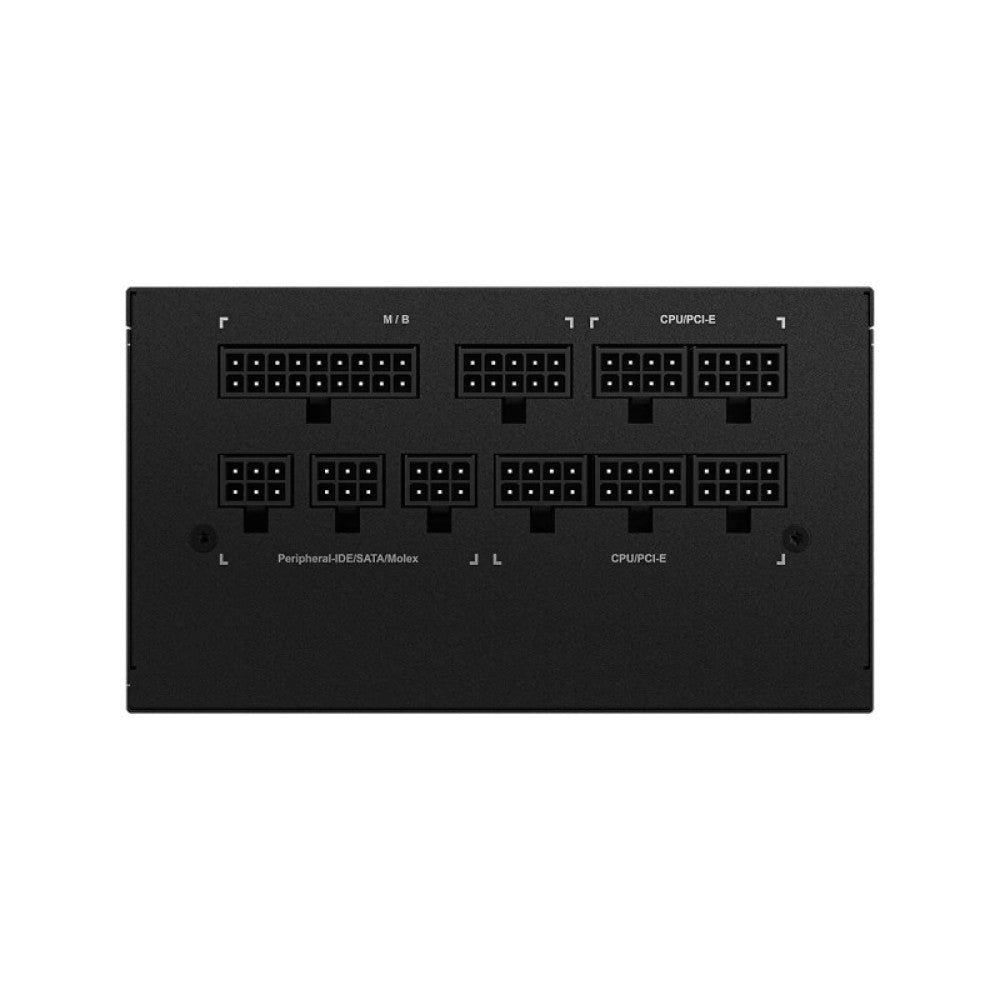

ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
|
Warranty |
5 years warranty |
