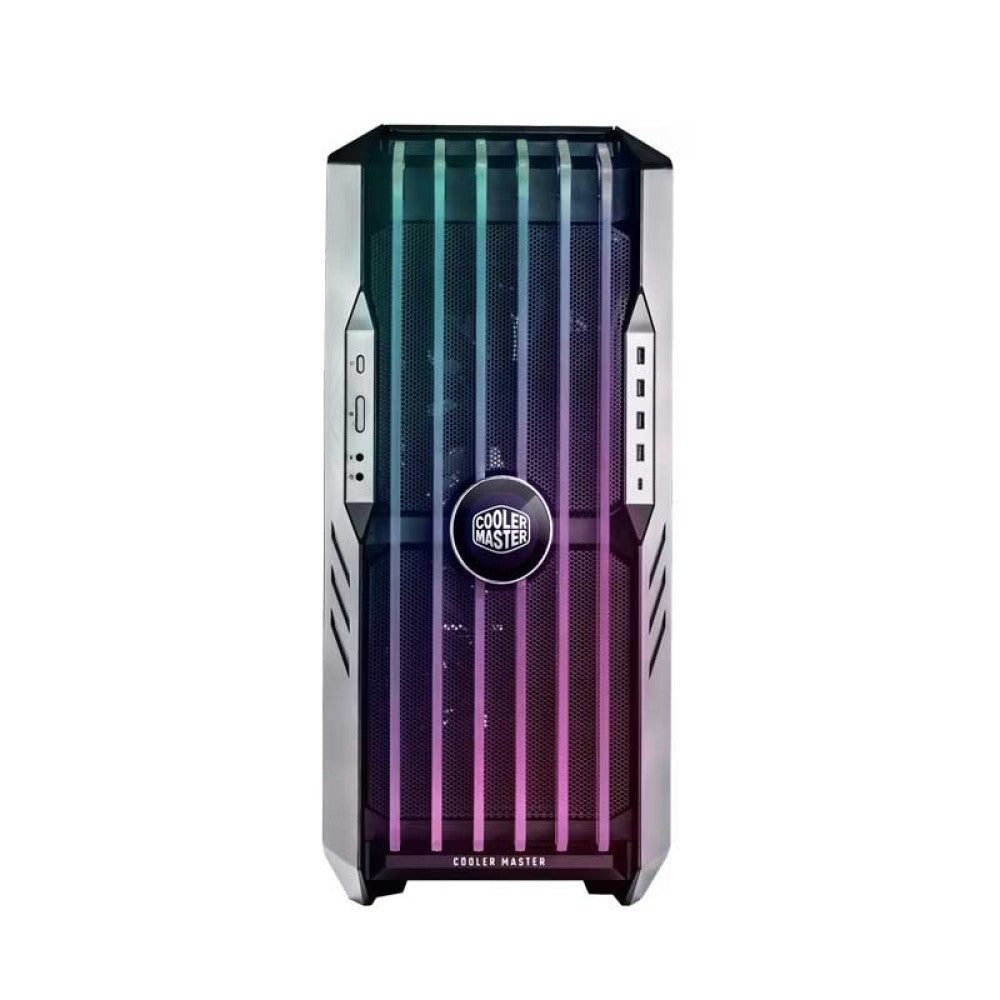

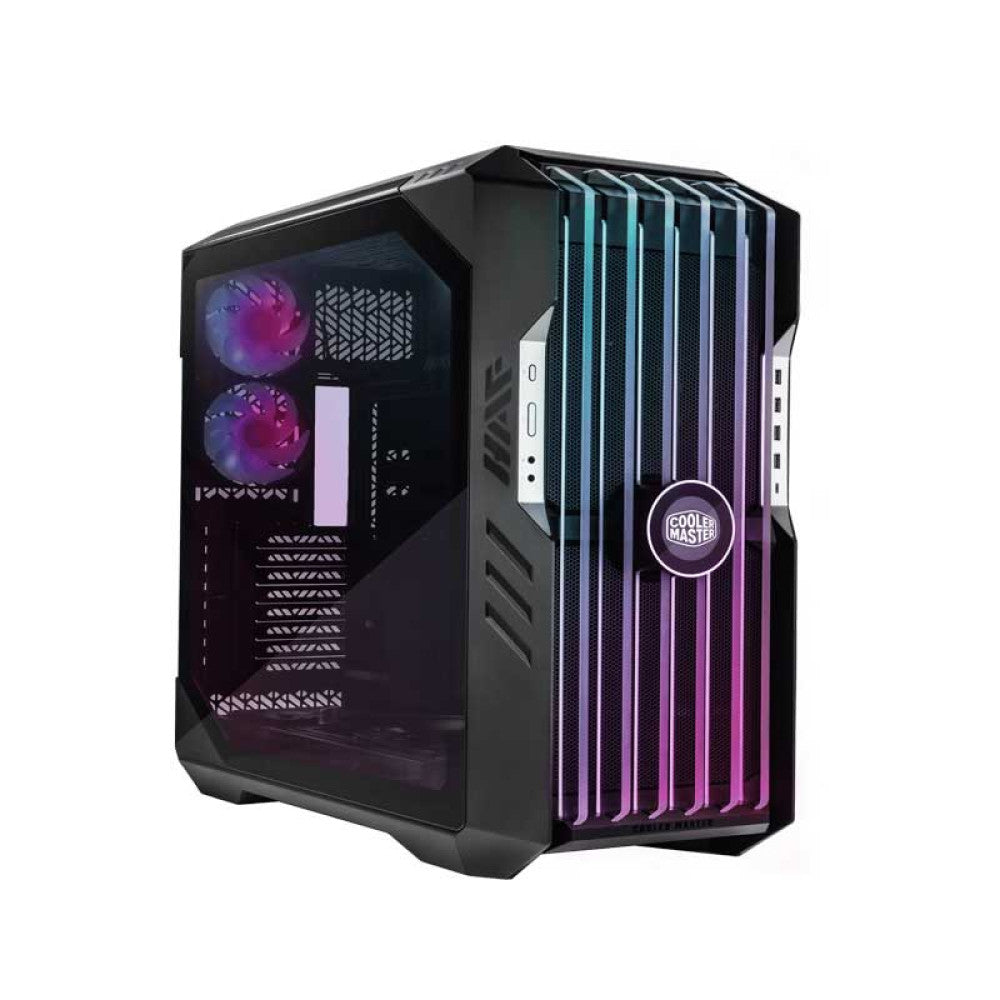

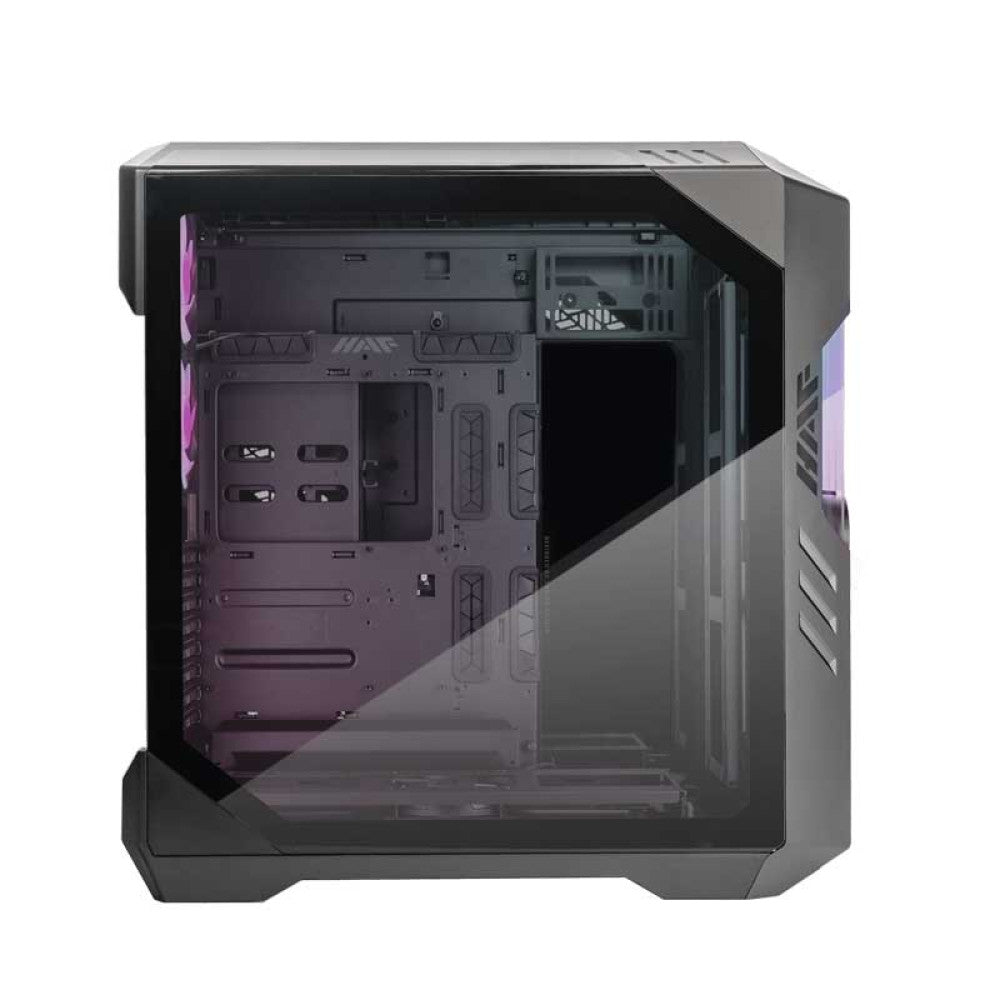

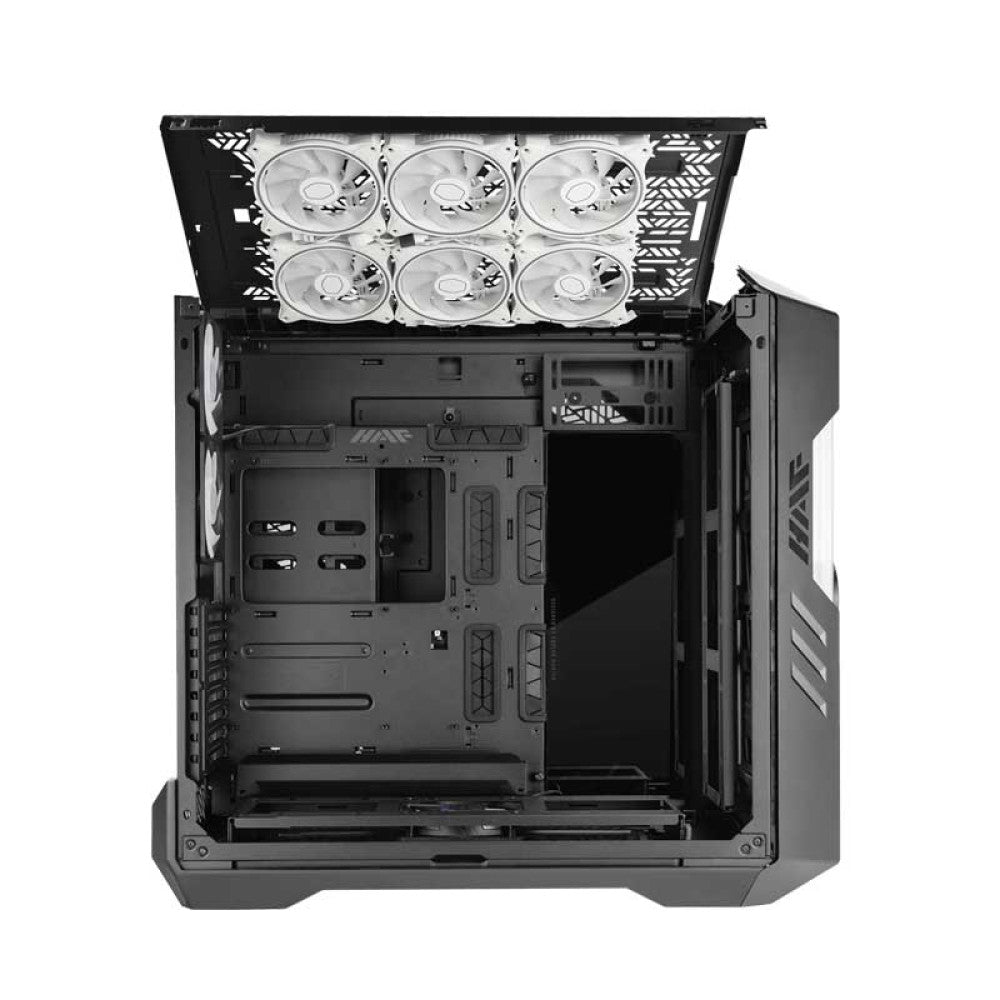

Cooler Master HAF 700 EVO Full Tower

Product Name

HAF 700 EVO

Product Code

H700E-IGNN-S00

Exterior Color

Titanium Grey

Materials

Exterior: Mesh, Steel, Plastic

Left Side Panel: Tempered Glass, Steel

Dimensions(L x W x H)

556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)

Motherboard Support

Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB

Expansion Slots

8

Drive Bays

5.25" Drive Bays = N/A

2.5" / 3.5" Drive Bays (combo) = 12

2.5" Drive Bays = 12

I/O Panel

I/O Panel - USB Ports = 1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)

I/O Panel - Audio In / Out = 1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack

I/O Panel - Other = 1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub

Pre-installed Fan(s)

Pre-installed Fans - Front = 2x SickleFlow PWM Performance Ed. 200mm

Pre-installed Fans - Rear = 2x SickleFlow PWM ARGB 120mm

Pre-installed Fans - Bottom = 1x SickleFlow PWM ARGB 120mm

Fan Support

Fan Support - Top = 2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)

Fan Support - Front = 2x 200mm, 3x 120/140mm

Fan Support - Rear = 2x 120mm

Fan Support - Bottom = 3x 120/140mm

Fan Support - Side = 4x 120mm / 3 x 140mm

Radiator Support

Radiator Support - Top = Up to 2x 360mm / 1x 420mm

Radiator Support - Front = Up to 420/360mm

Radiator Support - Rear = Up to 240mm

Radiator Support - Bottom = Up to 420/360mm

Radiator Support - Side = Up to 480/420mm

Clearances

Clearance - CPU Cooler = 166mm / 6.53 inch

Clearance - PSU = 200mm / 7.87 inch

Clearance - GFX = 490mm / 19.29 inch

Cable Routing

Behind MB Tray: 90-101mm

Additional Included Accessories

Universal Graphics Card Holder Kit V2

Dust Filters

Front, Bottom, Side

Power Supply Support

Bottom Mount, ATX

Series

HAF Series

Size

Full Tower

Warranty

2 years
