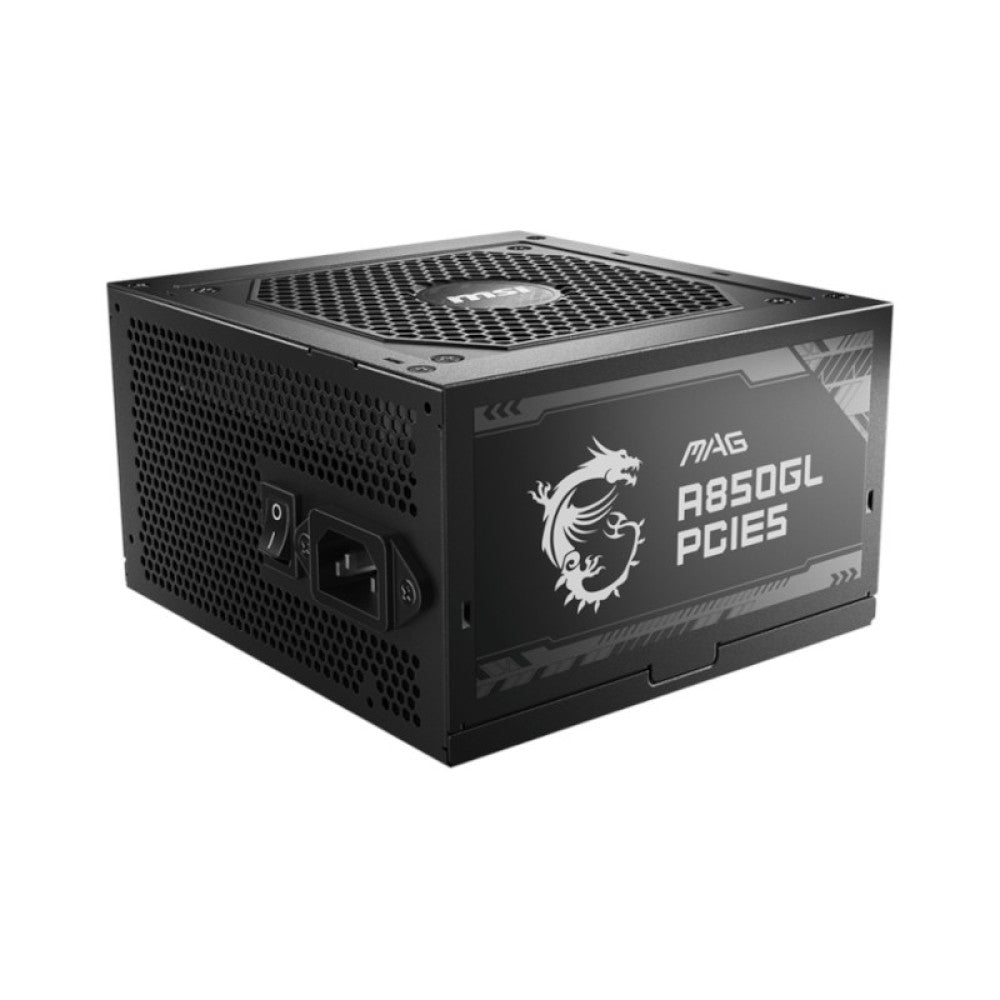

MSI MAG A850GL PCIE5 850W 80 Plus Gold Fully Modular Power Supply
MSI MAG A850GL PCIE5 850W 80 Plus Gold Fully Modular Power Supply
SKU:MAG A850GL PCIE5
!! Please Verify Product Availability and Pricing before Placing an Order, as Prices may vary due to Market Volatility !! For Confirmation, Please Call/WhatsApp: +91 9382450367
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MAG A850GL PCIE5
- ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

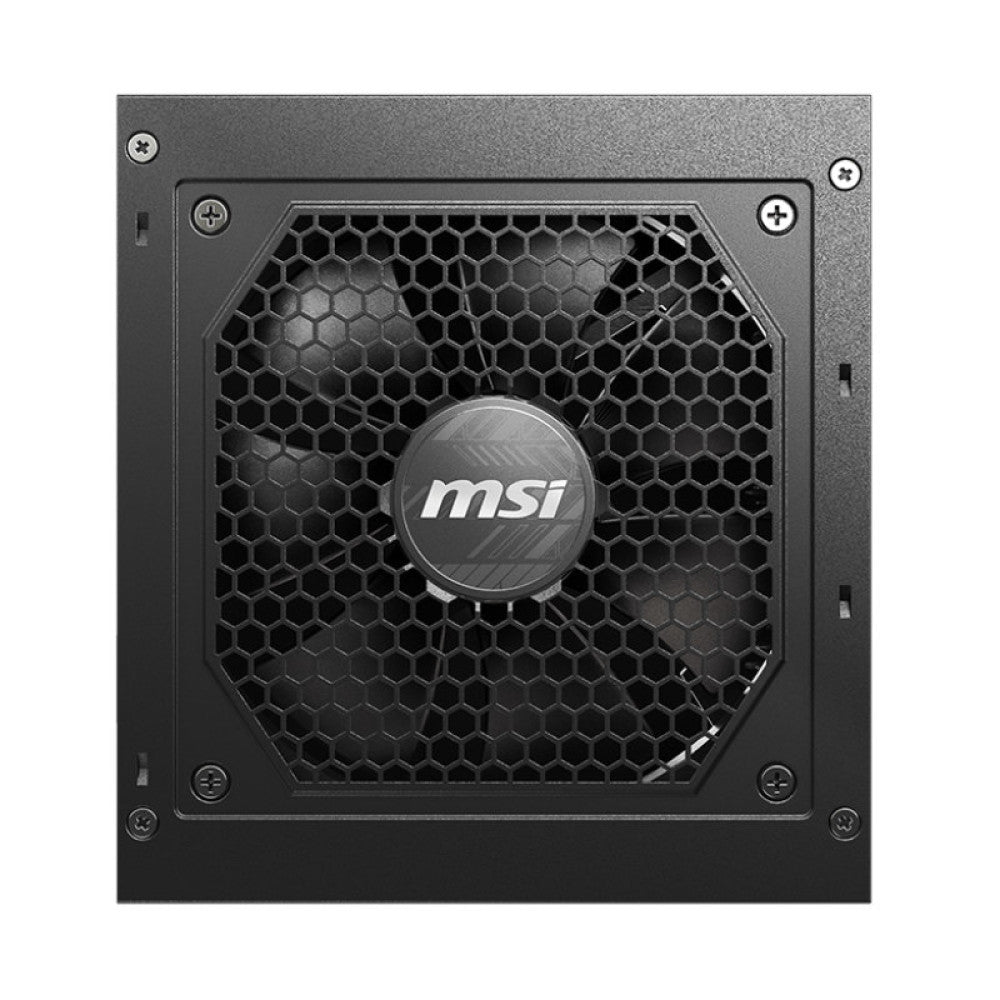

- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
|
Product Specification |
|
|
EFFICIENCY RATING |
80 PLUS Gold (up to 90%) |
|
MODULAR |
Yes (full modular) |
|
FAN SIZE |
120 mm |
|
FAN BEARING |
Fluid Dynamic Bearing |
|
DIMENSIONS (DXWXH) |
140 x 150 x 86 mm |
|
PFC TYPE |
Active PFC |
|
INPUT VOLTAGE RANGE |
100~240 VAC |
|
POWER WATT |
850W |
|
POWER EXCURSION |
1700W (*up to 200% of the PSU's rated power for 100μs) |
|
INPUT FREQUENCY RANGE |
47-63Hz |
|
PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |
|

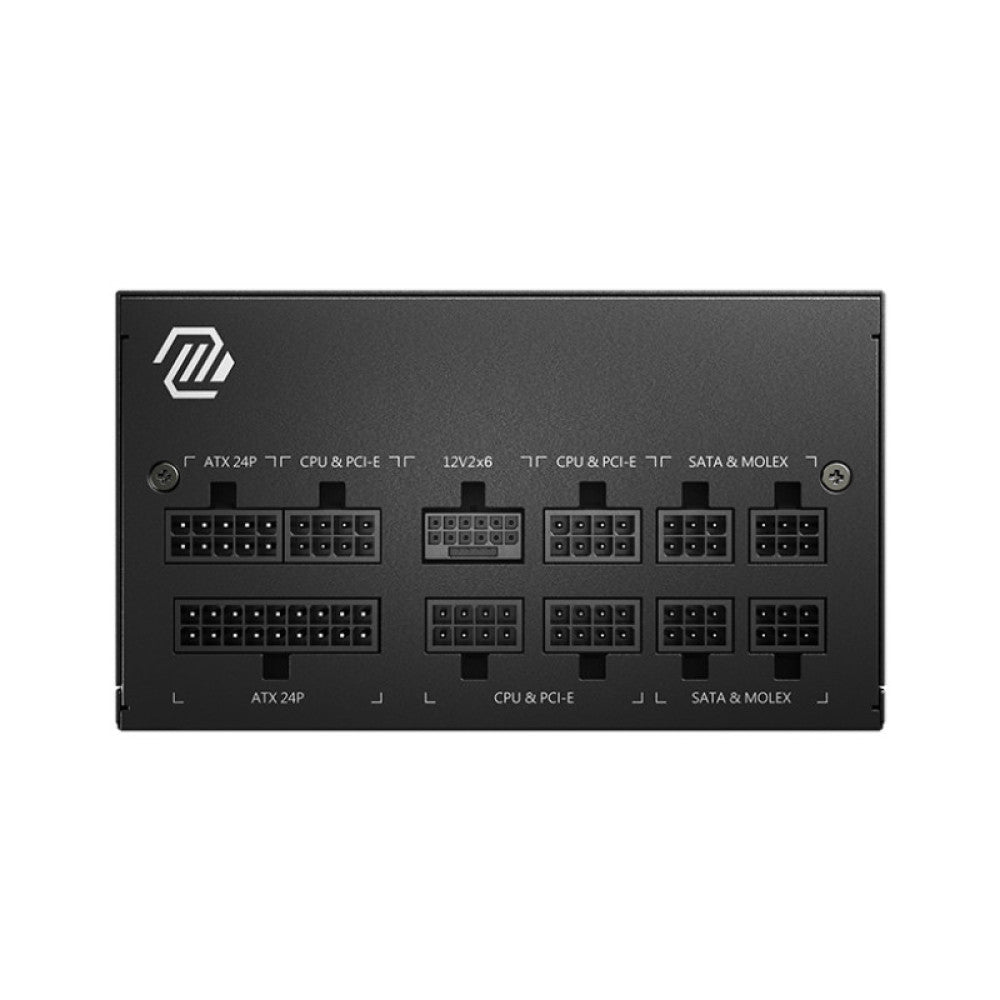

ATX (24 PIN) |
1 |
|
EPS (4+4 PIN) |
2 |
|
PCI-E 5.0 (16 PIN) |
1 (600W) |
|
PCI-E (6+2 PIN) |
4 |
|
SATA (15 PIN) |
8 |
|
MOLEX (4 PIN) |
4 |
|
FDD (4 PIN) |
1 |
|
Warranty |
7 Years |
