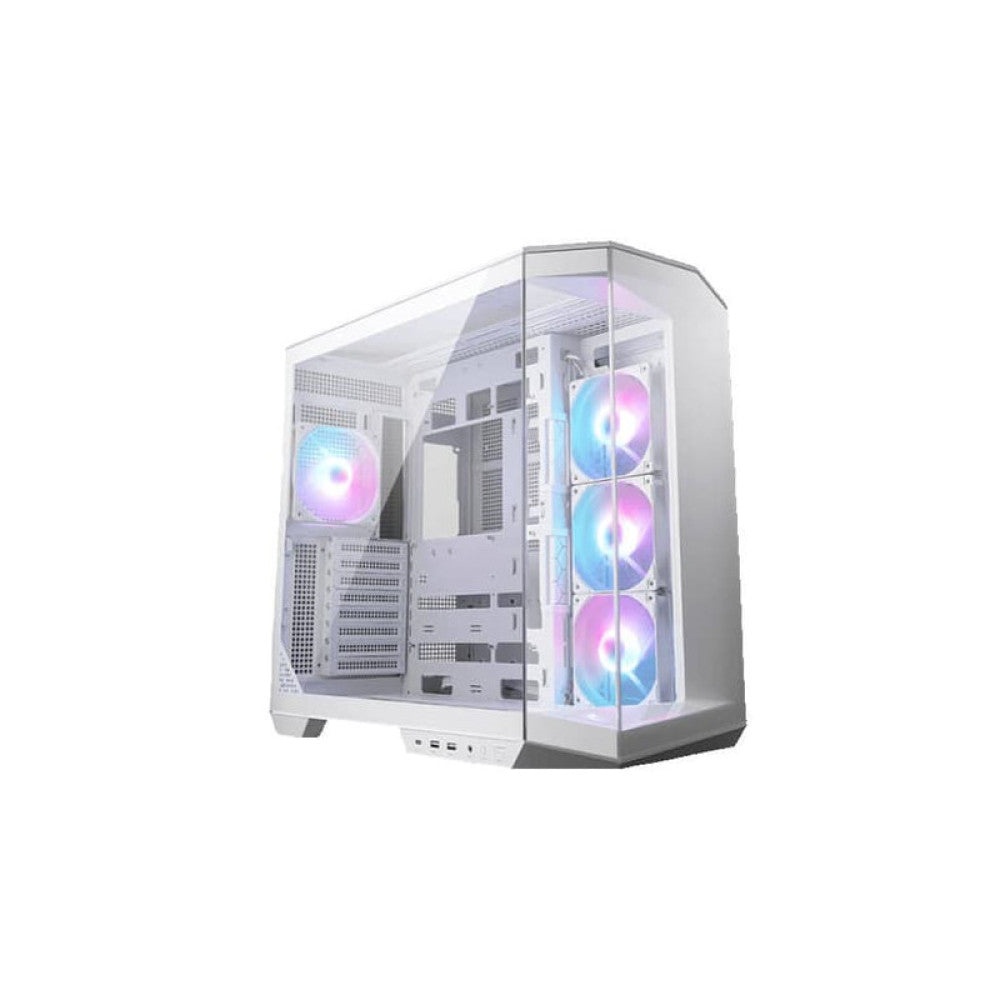

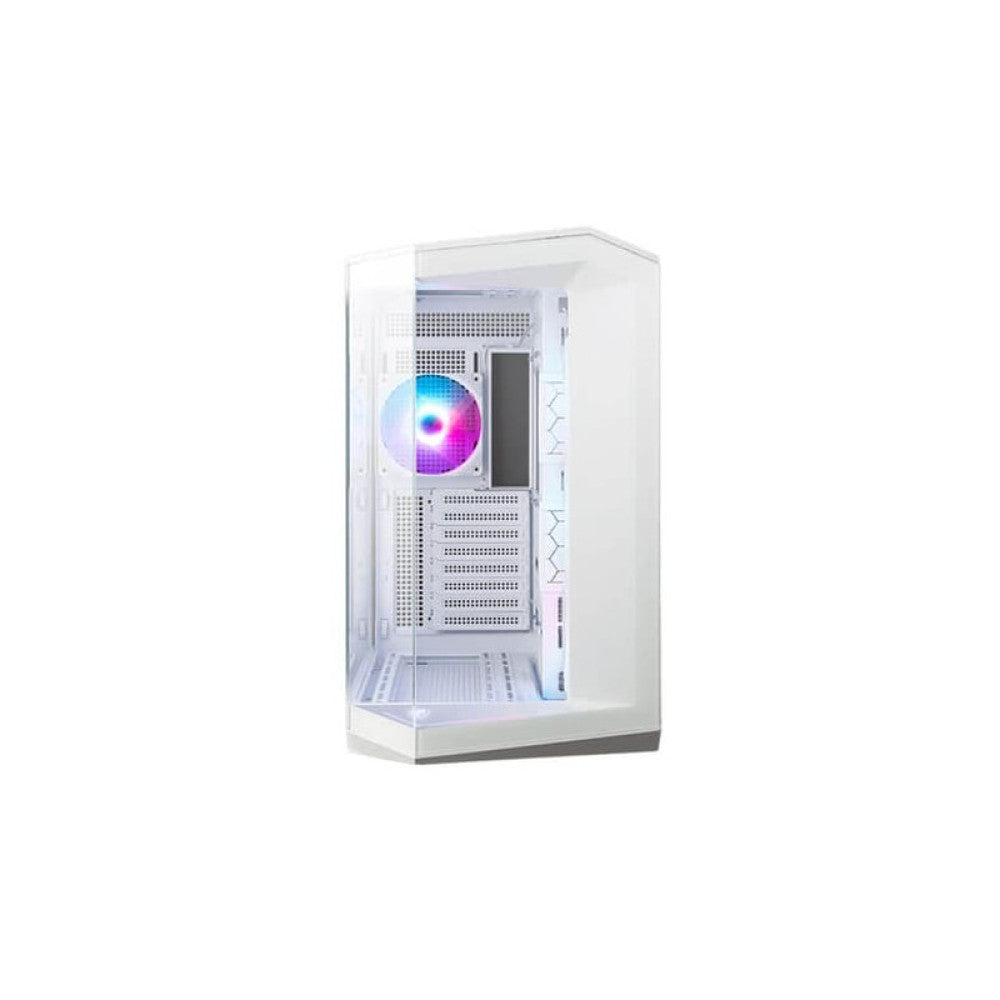

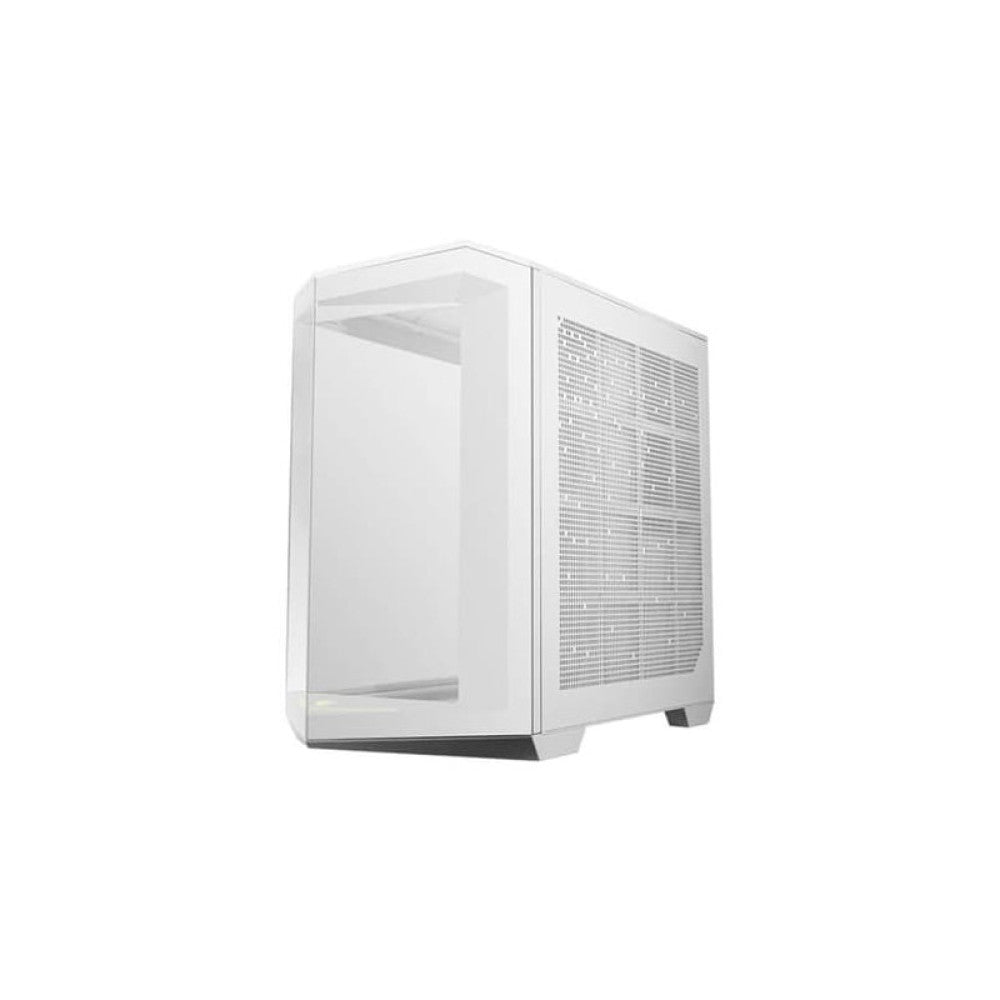

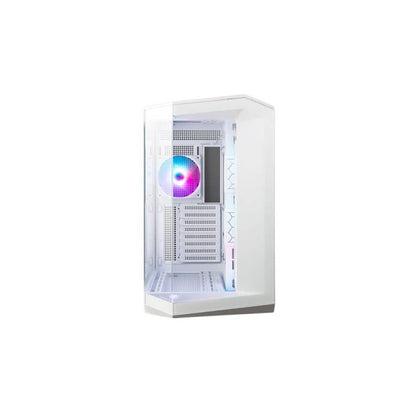

MSI MAG Pano 100R PZ White Gaming Cabinet
MSI MAG Pano 100R PZ White Gaming Cabinet
SKU:MAG PANO 100R PZ WHITE
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Supported ATX and Micro-ATX Back-connect motherboard.
- Supports 360 mm radiator on the top, side and bottom
- 270-degree panoramic tempered glass.
- Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
- 1-to-4 ARGB-Fan control board.
- Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
- Removable dust filter at the top, side and bottom being easily removed for cleaning.
- UNI front panel cable make your DIY process easier and create more possibilities to your system.
|
Product Specification |
|
|
Radiator Compatibility |
120 / 140 / 240 mm |
|
Case Form Factor |
Mid Tower |
|
Motherboard Form Factor Support |
Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX |
|
Product Name |
MAG PANO 100R PZ WHITE |
|
Drive Mount Support |
3 x 2.5” 2 x 2.5”/3.5” combo |
|
Dimension |
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches |
|
I/O Ports |
1 x USB 20Gbps Type-C 2 x USB 5Gbps Type-A 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
|
Case Expansion Slots |
8 |
|
Pre-install Fan |
Side: 3 x 120 mm Rear: 1 x 120 mm |
|
Fan Support |
Top: 3 x 120 mm / 3 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm |
|
Maximum PSU Length |
200 mm / 7.87 inches |
|
Maximum GPU Length |
380 mm / 14.96 inches |
|
Maximum CPU Cooler Length |
166 mm / 6.54 inches |
|
Radiator Layout |
Top: 120 / 240 / 360 mm Front: NA Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 120 / 240 / 360 mm |
|
Lightning |
Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB |
|
Power Supply |
ATX |
|
Warranty |
1 Year |
