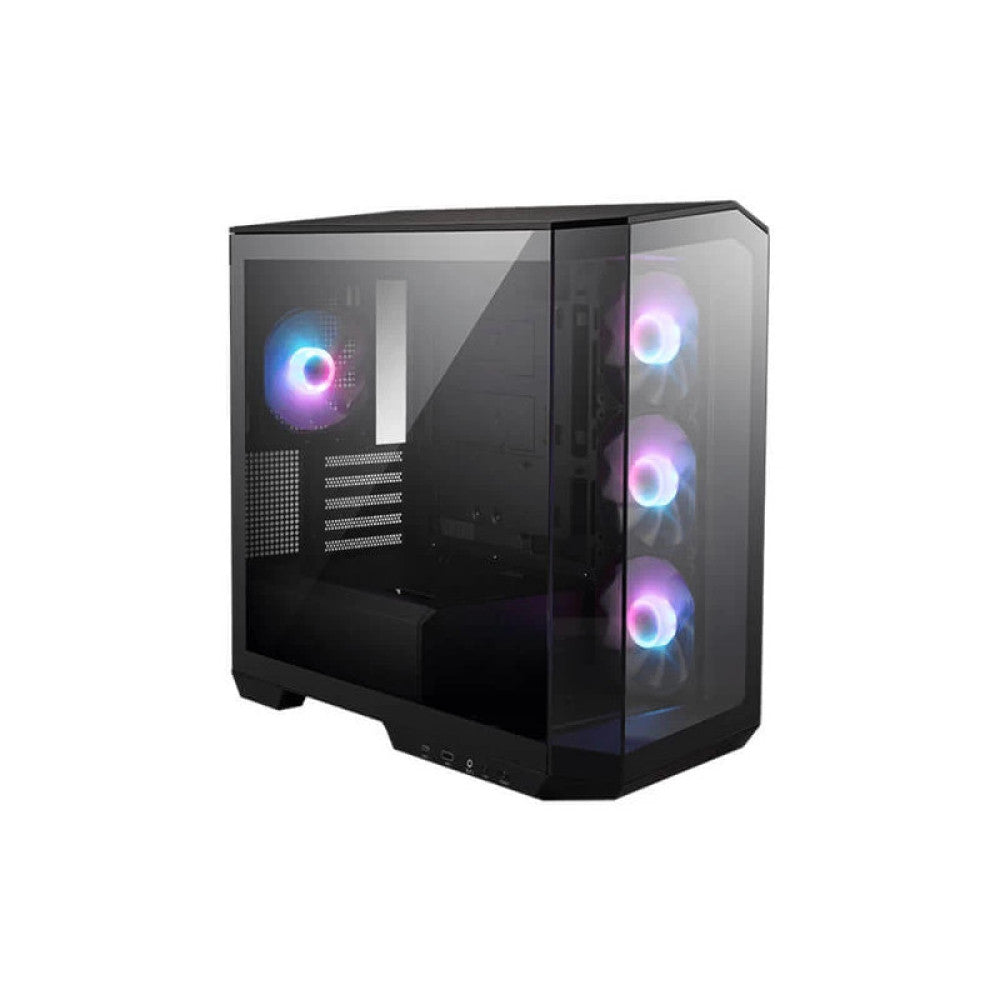

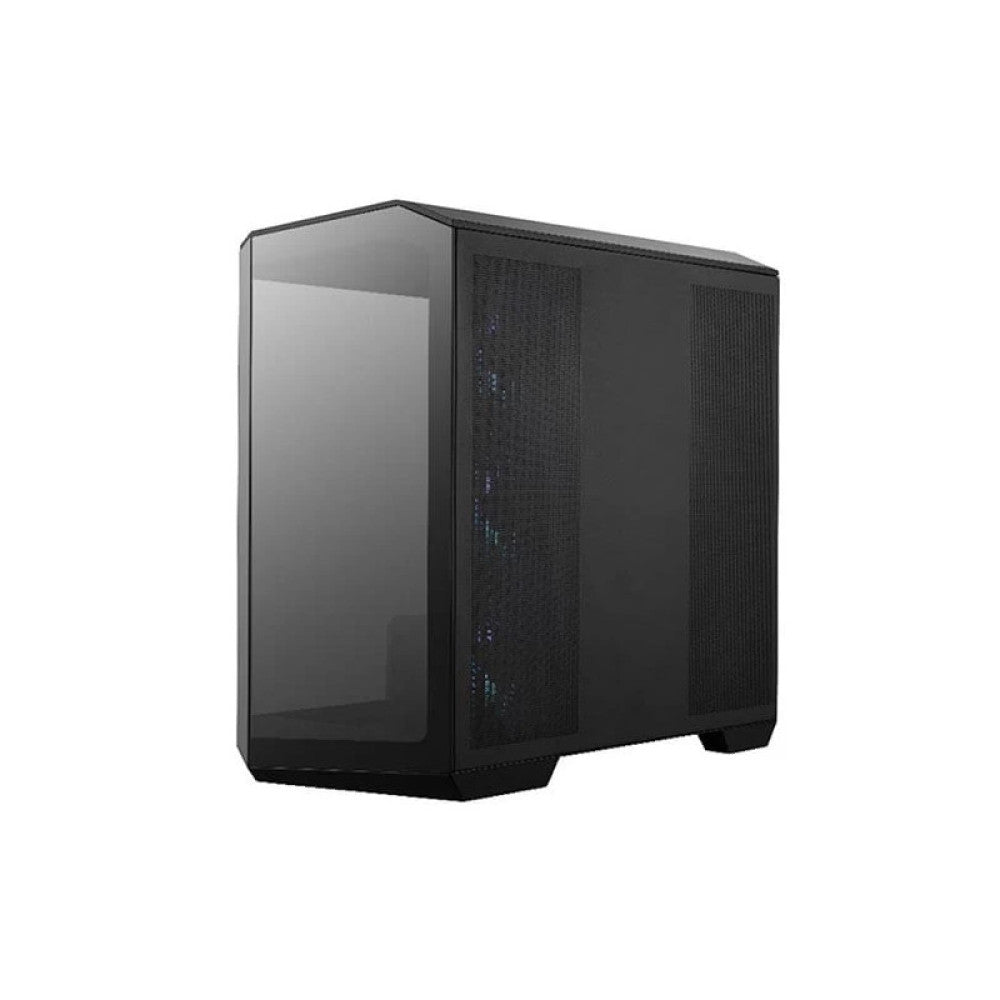

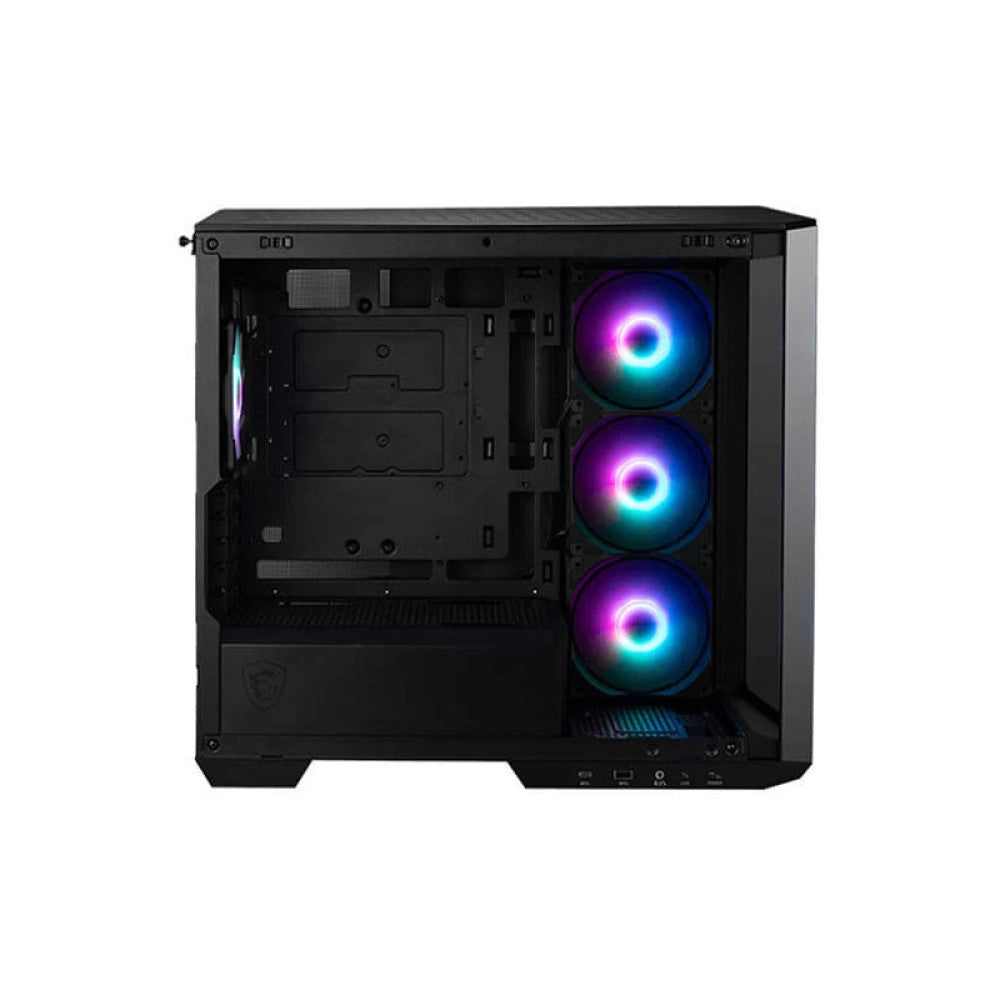

MSI MAG Pano M100R PZ Gaming Cabinet
MSI MAG Pano M100R PZ Gaming Cabinet
SKU:MAG PANO M100R PZ
!! Please Verify Product Availability and Pricing before Placing an Order, as Prices may vary due to Market Volatility !! For Confirmation, Please Call/WhatsApp: +91 9382450367
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Micro-ATX Back-connect motherboard compatible.
- Supports up to 360 mm AIO liquid cooler on the top.
- 270-degree panoramic tempered glass.
- Supports up to 10 x 120 mm system fans.
- Built-in 1-to-4 ARGB-PWM fans and control board, providing striking lighting and vivid lighting effects.
- The Magnetic Dust Filter at the bottom being easily removed for cleaning.
- DIY Friendly cables make your DIY process easier and create more possibilities to your system.
|
Product Specification |
|
|
PRODUCT NAME |
MAG PANO M100R PZ |
|
COLOR |
Black |
|
CASE FORM FACTOR |
Micro- ATX Tower |
|
MOTHERBOARD FORM FACTOR SUPPORT |
M-ATX(Back-connect supported) / ITX |
|
I/O PORTS |
1 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2x2 Type-C 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button |
|
DRIVE MOUNT SUPPORT |
1 x 2.5” 1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
|
EXPANSION SLOTS |
5 |
|
MAXIMUM GPU LENGTH |
390 mm / 15.35 inches *Support horizontal installation only. |
|
MAXIMUM CPU COOLER HEIGHT |
175 mm / 6.9 inches |
|
POWER SUPPLY SUPPORT |
ATX |
|
MAXIMUM PSU LENGTH |
200 mm / 7.87 inches |
|
FAN SIZE SUPPORT |
Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |
|
PRE-INSTALLED FAN SIZE |
Side: 3 x 120 mm Rear: 1 x 120 mm |
|
PRE-INSTALLED FAN TYPE |
Side: 3 x ARGB Fan (Reverse-blade) Rear: 1 x ARGB Fan |
|
RADIATOR SIZE SUPPORT |
Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
|
DIMENSIONS (DXWXH) |
440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
|
Warranty |
1 Year |
