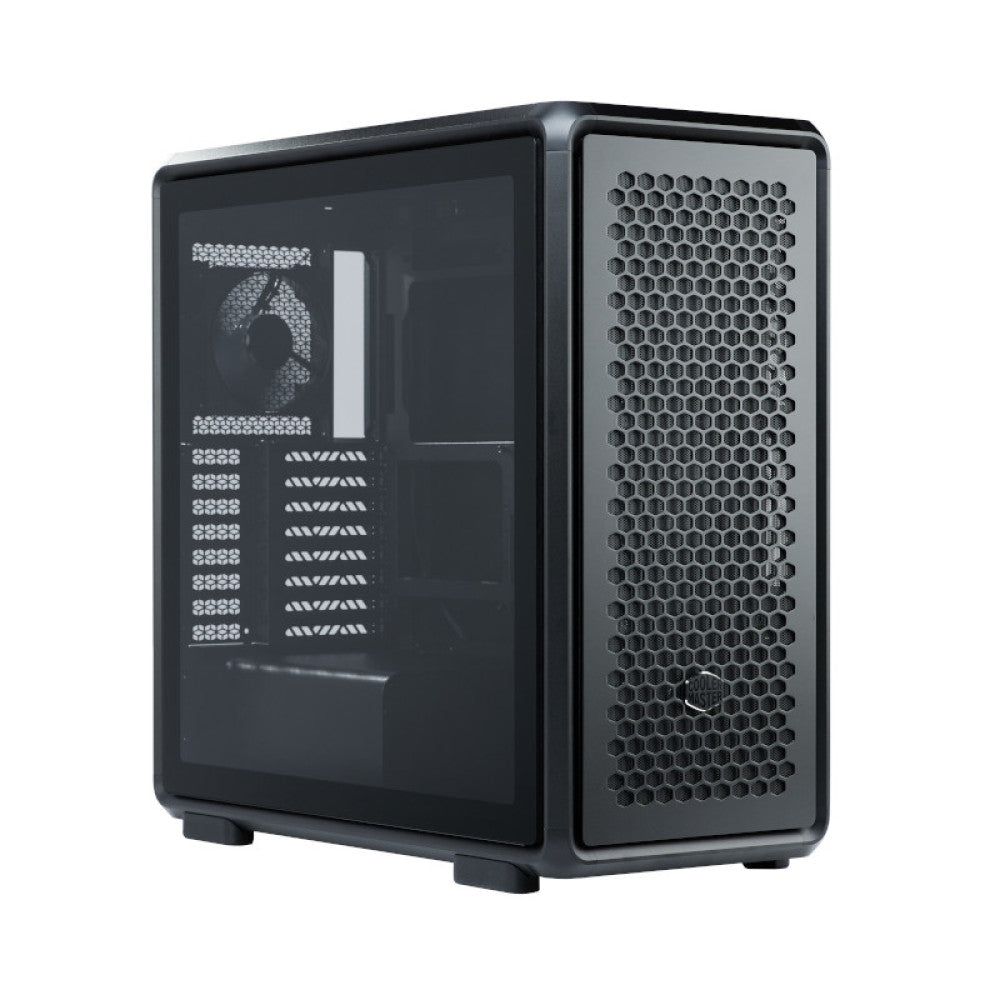

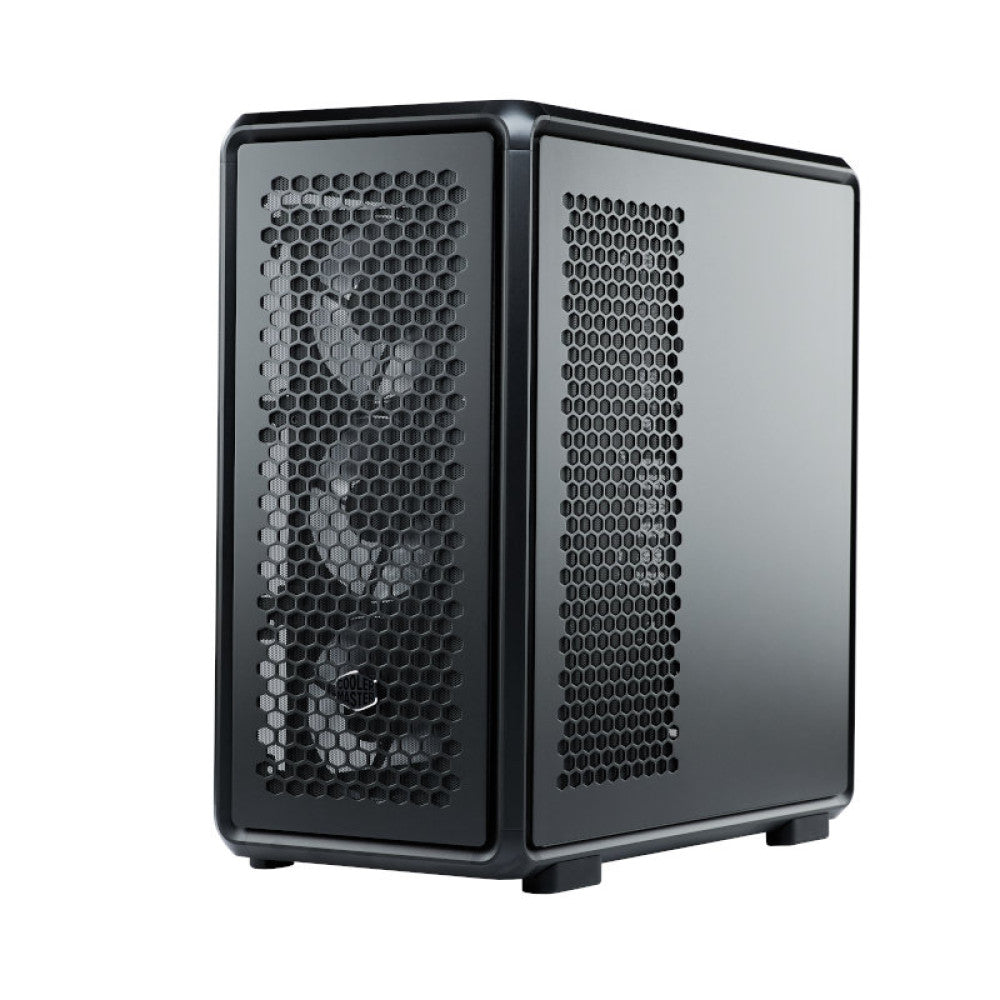

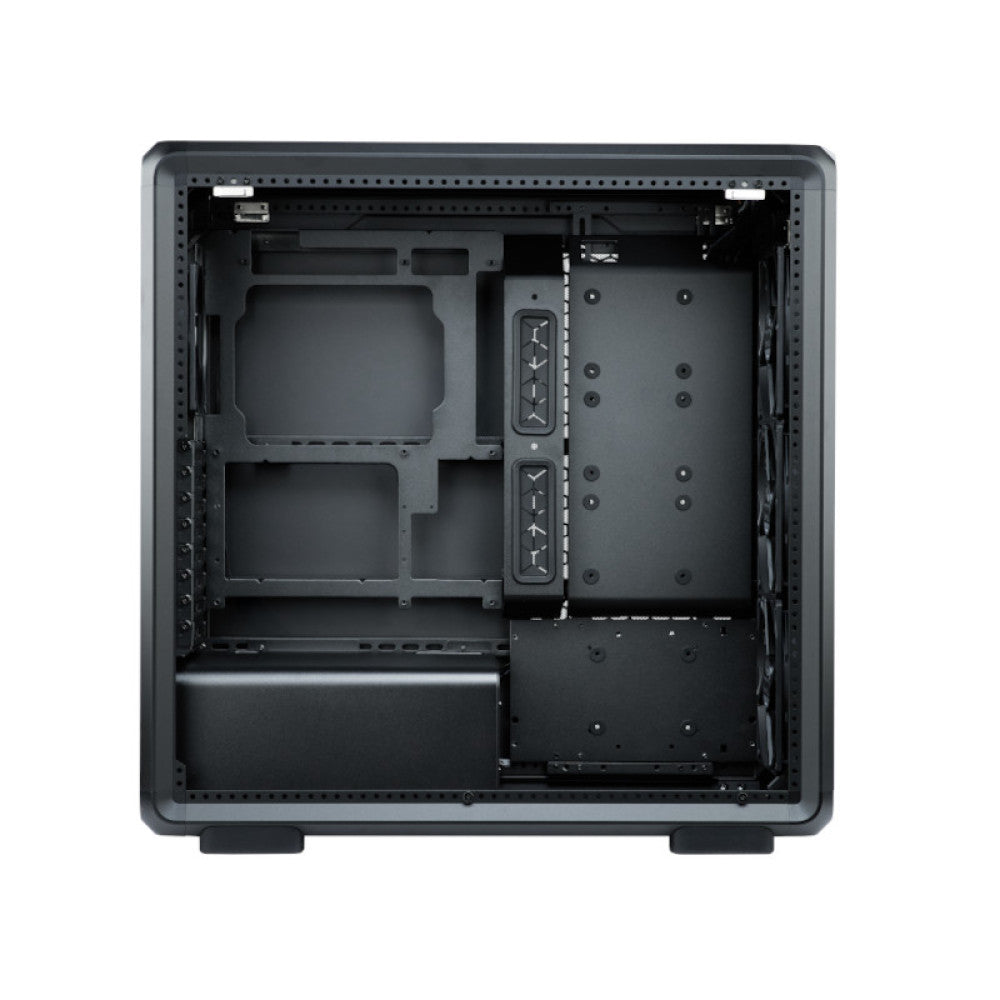

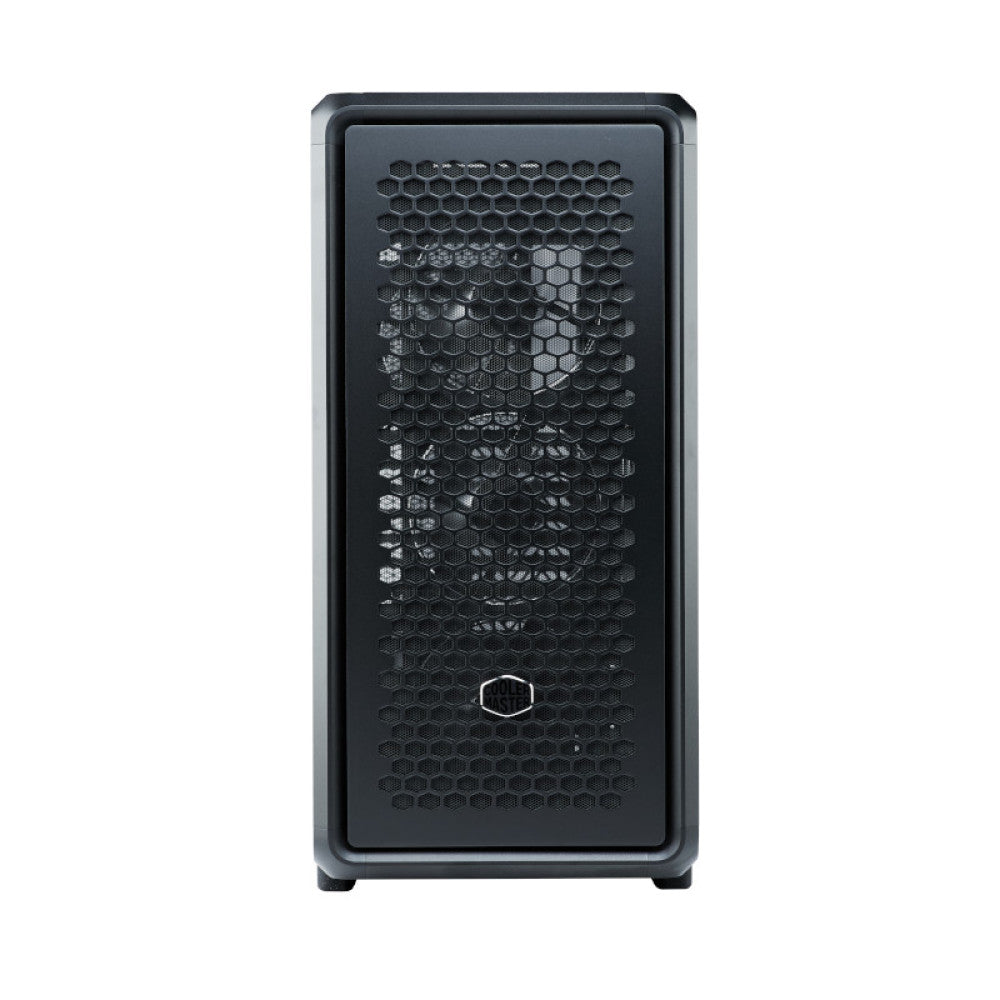

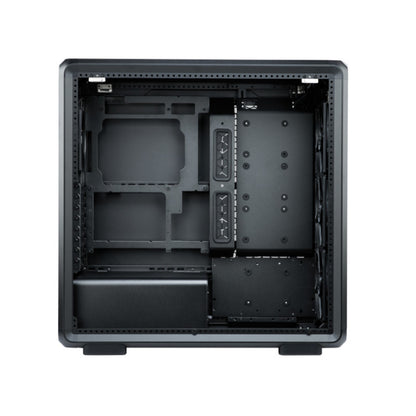

Cooler Master MasterFrame 600 Open-Frame Mid Tower Cabinet - Black

Model Number

MF600-KGNN-S00

Exterior Color

Black

Materials

Exterior: SGCC Steel, Aluminum

Side Panel: Tempered Glass / Aluminum

Dimensions (L X W X H)

Incl. Protrusions: 531 x 261 x 544 mm

Excl. Protrusions: 514 x 244 x 514 mm

Volume

73.6 L (No Protrusions)

Motherboard Support

Mini-ITX, Mini-DTX, Micro-ATX, ATX , SSI-CEB

(E-ATX up To 305 x 330mm)

Expansion Slots

8

Drive Bays

5.25" Drive Bays 0

3.5" Drive Bays 0

2.5" / 3.5" Drive Bays 2

2.5" Drive Bays 3

I/O Panel

USB Ports:  2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C

Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic)

Pre-Installed Fans

Front: 3x Mobius 140, 3x SickleFlow 140 ARGB

Top: N/A

Rear: 1x Mobius 120, 1x SickleFlow 120 ARGB

Fan Support

Front: 3x 120mm, 3x 140mm,2x 180mm, 2x 200mm

Top: 3x 120mm, 2x 140mm,2x 180mm , 1x200mm

Rear 1x 120mm

Side 3x 120mm, 3x 140mm

* Up to3x 140mmif I/O module is moved to the front panel

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420 mm

Top 120 / 140 / 240 / 280 / 360 / 420 mm

Rear 120 mm

Side 240 / 280 / 360 / 420 mm

* Total Length Limit: 458 mm

* Up to 420mm if I/O module is moved to the front panel

Clearances

CPU Cooler: 190 mm

Power Supply: 235 mm

Graphics Card: L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)

Cable Routing

Behind MB Tray: 43 mm

Dust Filters

Removable Filters: Top, Front, Bottom, Right Side panel

Power Supply Support

ATX

Included Accessories

GPU Support Bracket: GPU Support Bracket/ ARGB PWM Hub

Warranty

2 Years
