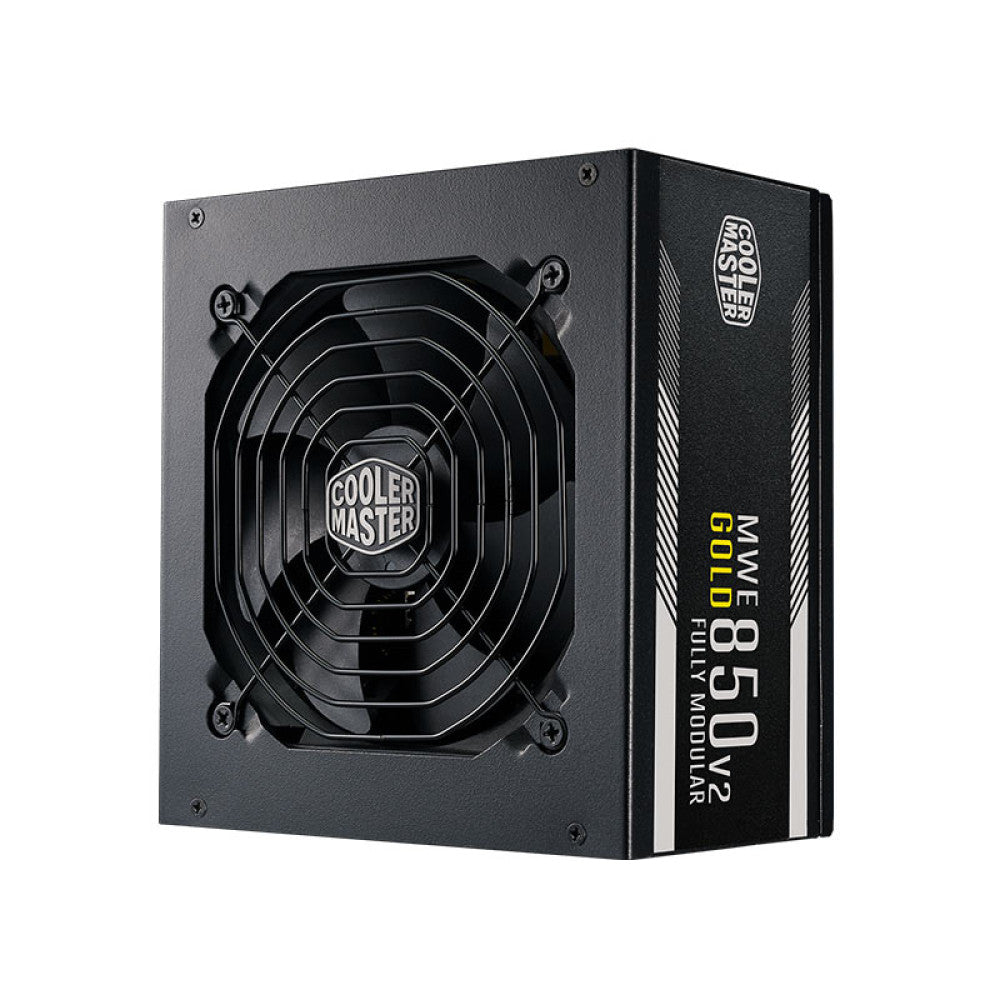

Cooler Master MWE 850 Watt V2 80 Plus Gold Certified Fully Modular Power Supply
Cooler Master MWE 850 Watt V2 80 Plus Gold Certified Fully Modular Power Supply
SKU:MPE-8501-AFAAG-IN
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MPE-8501-AFAAG
MWE GOLD 850 - V2 FULL MODULAR
FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT
- 80 Plus Gold Efficiency
- 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resilience
- Full Modular Cabling
- 5 Year Warranty
|
Product Specification |
|
|
MODEL |
MPE-8501-AFAAG |
|
ATX VERSION |
ATX 12V |
|
PFC |
Active PFC |
|
INPUT VOLTAGE |
90-264V |
|
INPUT CURRENT |
12-6A |
|
INPUT FREQUENCY |
47-63Hz |
|
DIMENSIONS (L X W X H) |
160 x 150 x 86 mm |
|
FAN SIZE |
120mm |
|
FAN BEARING |
HDB |
|
FAN SPEED |
1500 RPM |
|
NOISE LEVEL @ 20% |
0 dBA |
|
NOISE LEVEL @ 50% |
17.8 dBA |
|
NOISE LEVEL @ 100% |
25.9 dBA |
|
EFFICIENCY |
90% @ Typical Load |
|
80 PLUS RATING |
80 PLUS Gold |
|
ERP 2014 LOT 3 |
Yes |
|
OPERATING TEMPERATURE |
0-50°C |
|
POWER GOOD SIGNAL |
100 - 150 ms |
|
HOLD UP TIME |
>16ms at 100% Load |
|
MTBF |
>100,000 Hours |
|
PROTECTIONS |
OVP, OPP, OTP, SCP, OCP, UVP |
|
REGULATORY |
TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI |
|
ATX 24-PIN CONNECTORS |
1 |
|
EPS 4+4 PIN CONNECTORS |
1 |
|
EPS 8 PIN CONNECTOR |
1 |
|
SATA CONNECTORS |
12 |
|
PERIPHERAL 4-PIN CONNECTORS |
4 |
|
PCI-E 6+2 PIN CONNECTORS |
4 |
|
SERIE |
MWE Gold Series |
|
80 PLUS |
Gold |
|
MODULAR |
Full Modular |
|
WATTAGE |
Above 750W |
|
Warranty |
5 years |
