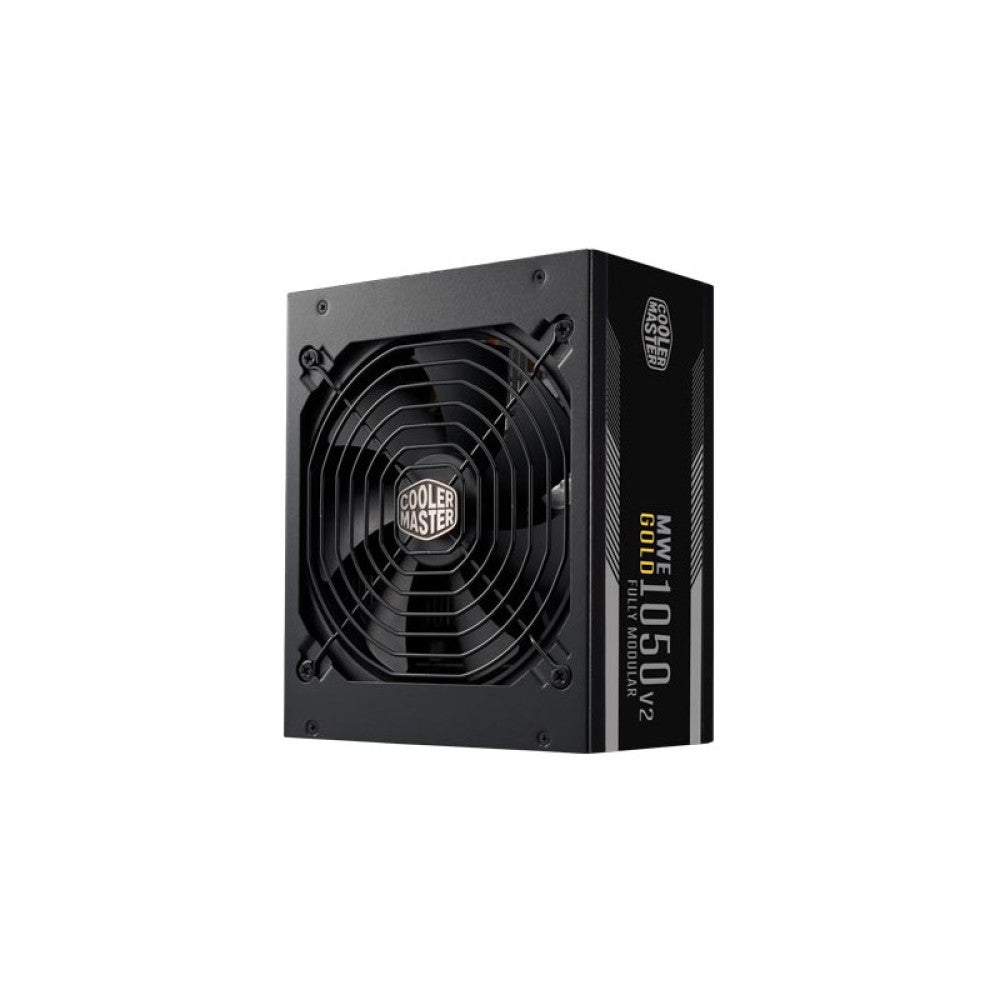

Cooler Master MWE Gold 1050 Watt V2 80 Plus Gold Certified Fully Modular Power Supply with PCI-E 5.0 12VHPWR Connector

MODEL

MPE-A501-AFCAG-3IN

ATX VERSION

ATX Rev 3.0

PFC

Active PFC

INPUT VOLTAGE

100-240V

INPUT CURRENT

13-6A

INPUT FREQUENCY

50-60Hz

DIMENSIONS (L X W X H)

180 x 150 x 86 mm

FAN SIZE

140mm Silent Fan

FAN BEARING

FDB

EFFICIENCY

>90% @ Typical Load

80 PLUS RATING

80 PLUS Gold

OPERATING TEMPERATURE

0-50°C

POWER GOOD SIGNAL

100 - 150 ms

HOLD UP TIME

>16ms at 100% Load

MTBF

>100,000 Hours

PROTECTIONS

OVP, UVP, OPP, OTP, SCP, OCP

REGULATORY

TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, BIS, UKCA

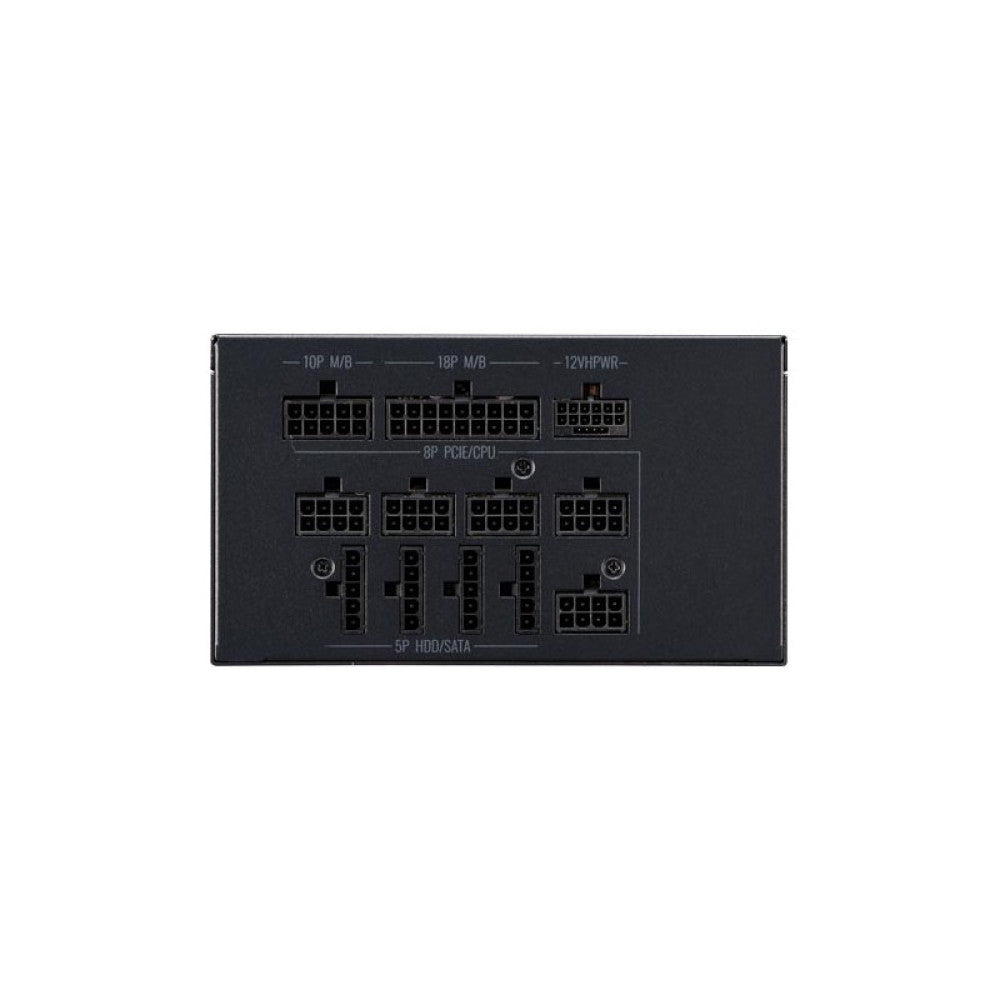

ATX 24-PIN CONNECTORS x1

1

EPS 4+4 PIN CONNECTORS x1

1

EPS 8 PIN CONNECTOR x1

1

SATA CONNECTORS x3

12

PERIPHERAL 4-PIN CONNECTORS x1

4

PCI-E 6+2 PIN CONNECTORS x3

3

12VHPWR 12+4Pin x1

1

Warranty

10 years
