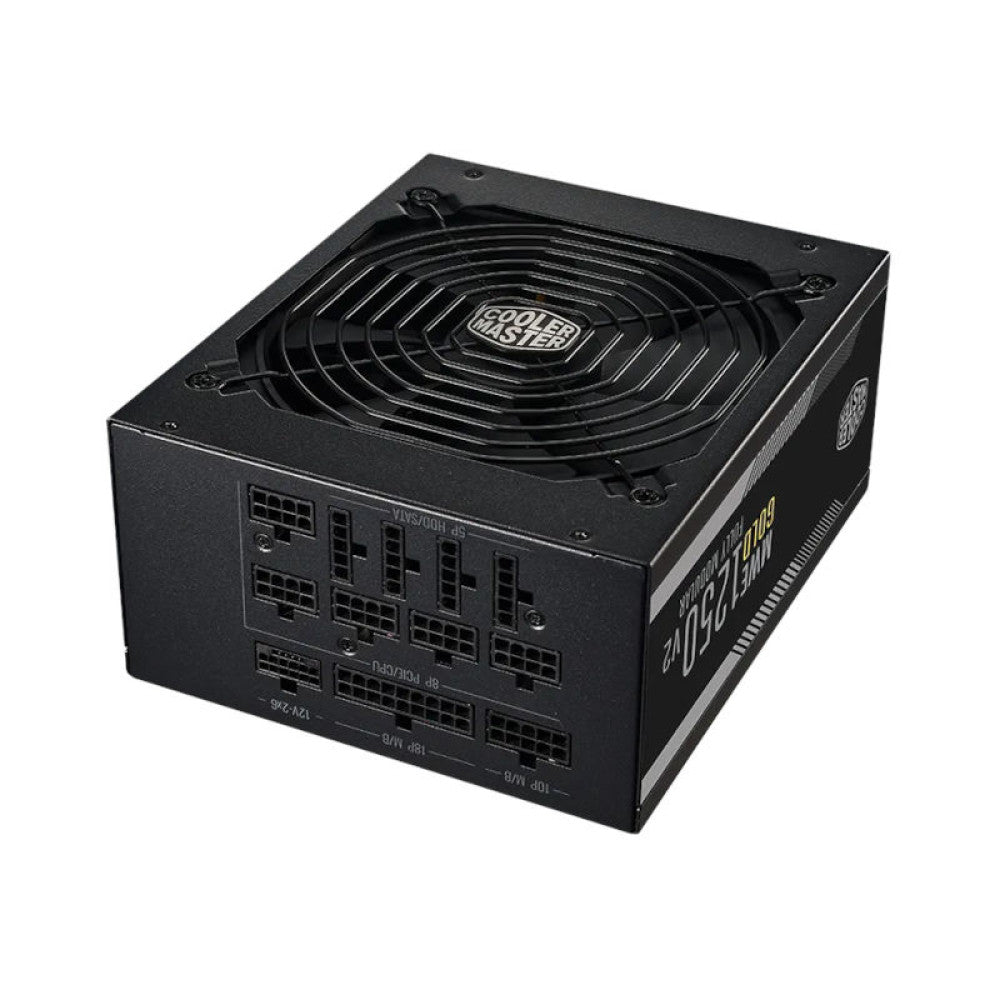

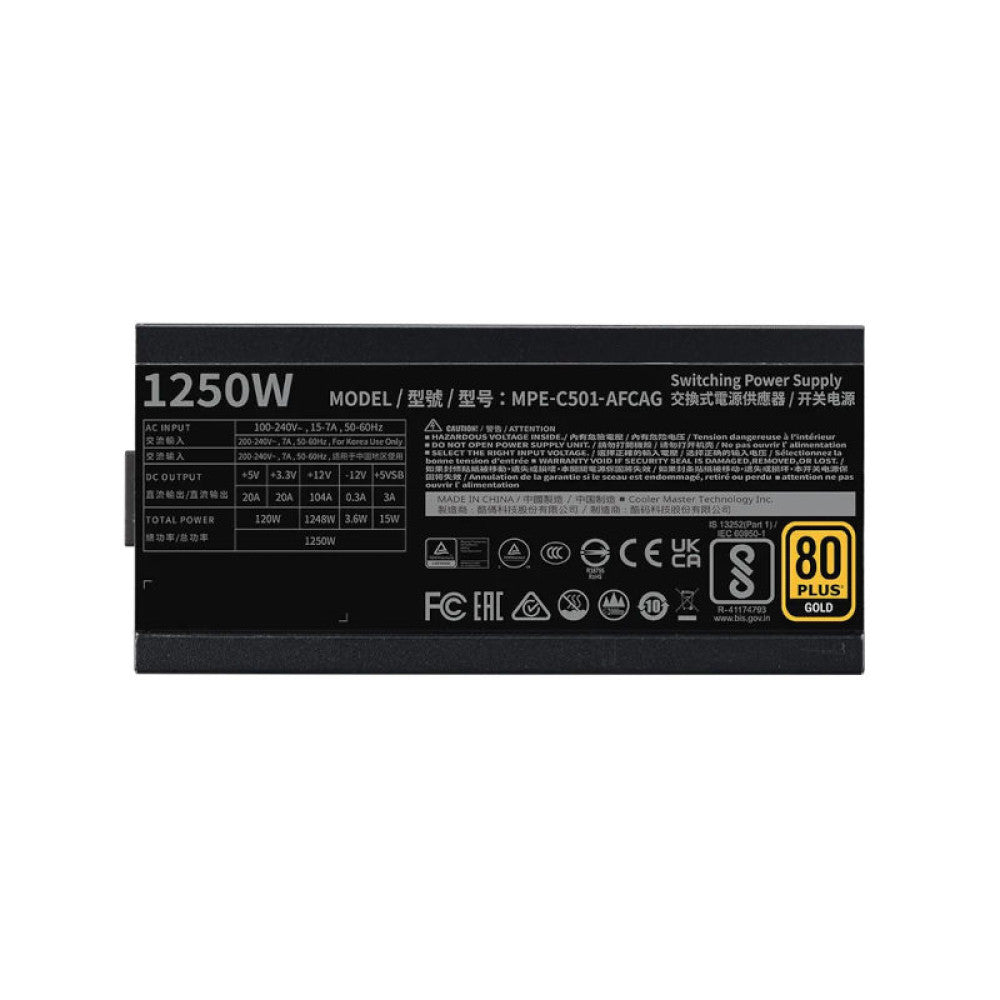

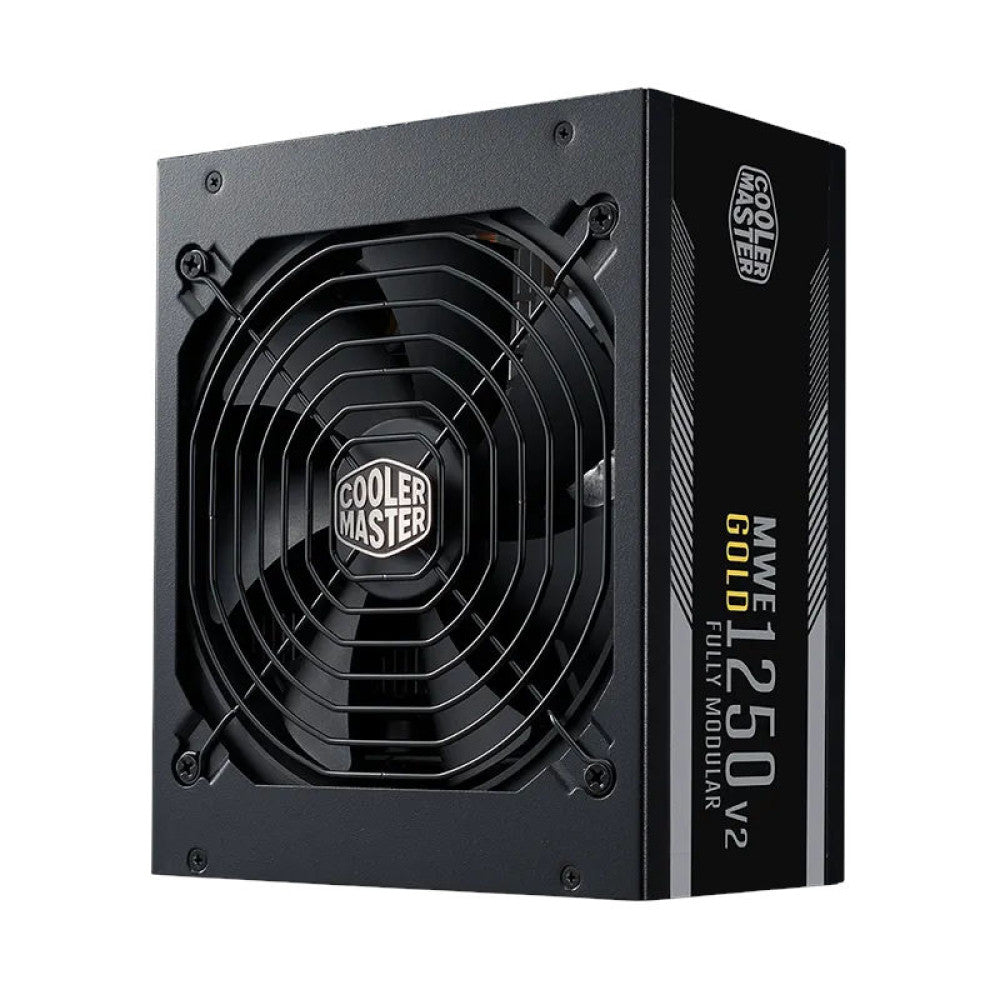

Cooler Master MWE Gold 1250 V2 - 1250 Watt ATX 3.1 80+ Gold Fully Modular Power Supply
Cooler Master MWE Gold 1250 V2 - 1250 Watt ATX 3.1 80+ Gold Fully Modular Power Supply
SKU:MPE-C501-AFCAG-3EIN
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MPE-C501-AFCAG-3EIN
- 80 PLUS Gold Efficiency
- High-quality Japanese capacitors
- 140mm Silent Fan
- High Temperature Resilience
- Fully Modular Cabling
- 10 Year Warranty
|
Product Specification |
|
|
MODEL |
MPE-C501-AFCAG-3EIN |
|
ATX VERSION |
ATX Rev 3.1 |
|
PFC |
Active PFC |
|
INPUT VOLTAGE |
100-240V |
|
INPUT CURRENT |
15-7A |
|
INPUT FREQUENCY |
50-60Hz |
|
DIMENSIONS (L X W X H) |
180 x 150 x 86 mm |
|
FAN SIZE |
140mm |
|
FAN BEARING |
Two Ball Bearing |
|
EFFICIENCY |
>90% @ Typical Load |
|
80 PLUS RATING |
80 PLUS Gold |
|
ErP 2014 Lot 3 |
Yes |
|
OPERATING TEMPERATURE |
0-50°C |
|
POWER GOOD SIGNAL |
100 - 150 ms |
|
HOLD UP TIME |
>16ms at 100% Load |
|
MTBF |
>100,000 Hours |
|
PROTECTIONS |
OVP/ OPP/ SCP/ OCP/ UVP/ OTP/ Inrush Protection |
|
REGULATORY |
TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS |
|
ATX 24-PIN |
x1 = 1x (650mm) |
|
EPS 4+4 PIN |
x1 = 1x (650mm) |
|
EPS 8 PIN |
x1 = 1x (650mm) |
|
SATA |
x12 = 3x (500+120+120+120mm) |
|
PERIPHERAL 4-PIN |
x4 = 1x (500+120+120+120mm) |
|
PCI-E 6+2 PIN |
x3 = 3x (550mm) |
|
12V-2x6 |
x1 = 1x (650mm) |
|
Weight |
3.02KG(Net) / 3.42KG(Gross) |
|
Dimension |
333 x 197 x 122mm (13.1 x 7.63 x 4.72") |
|
Warranty |
10 years |
