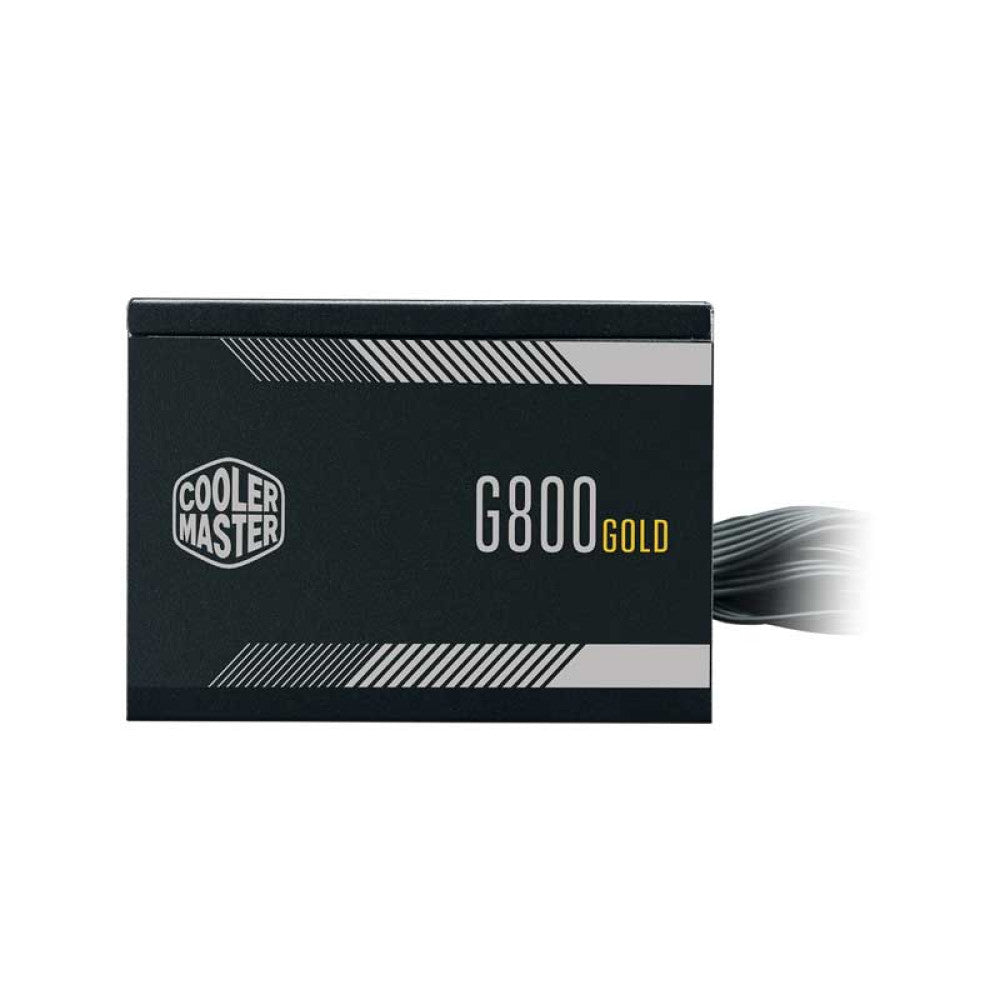

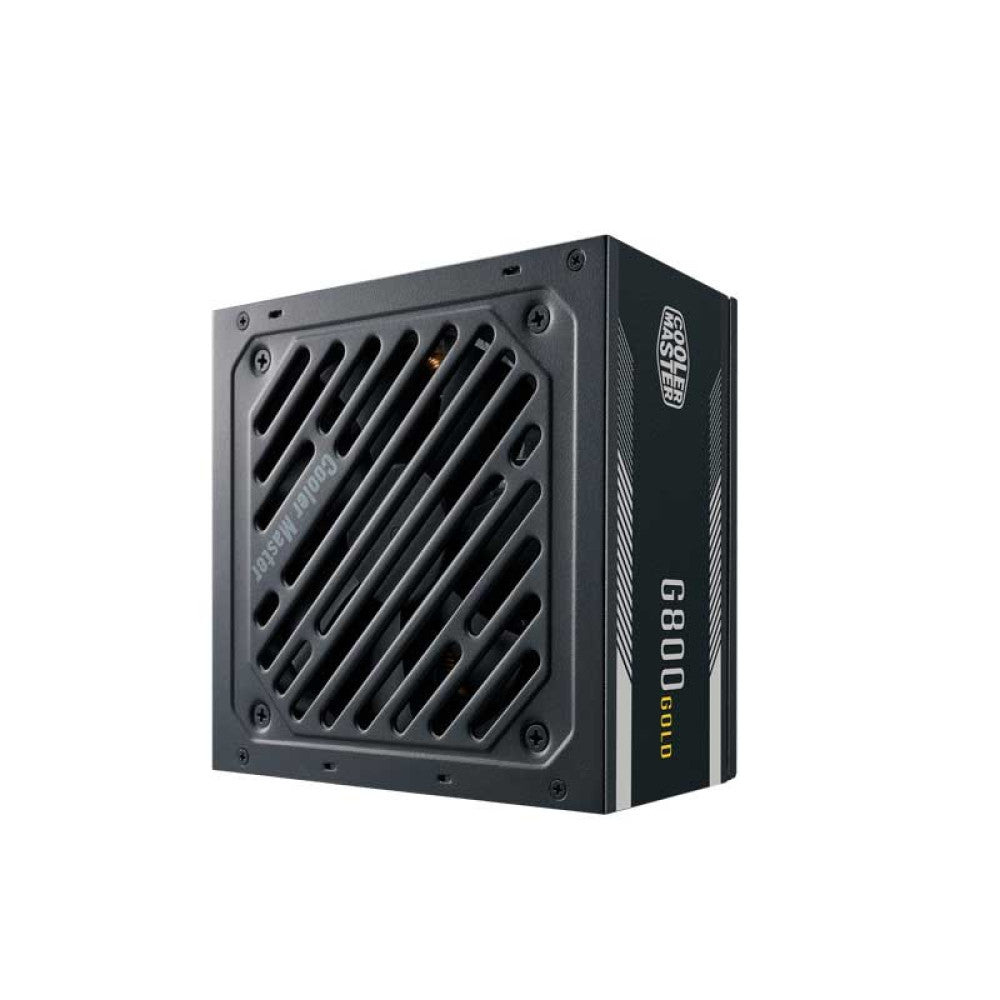

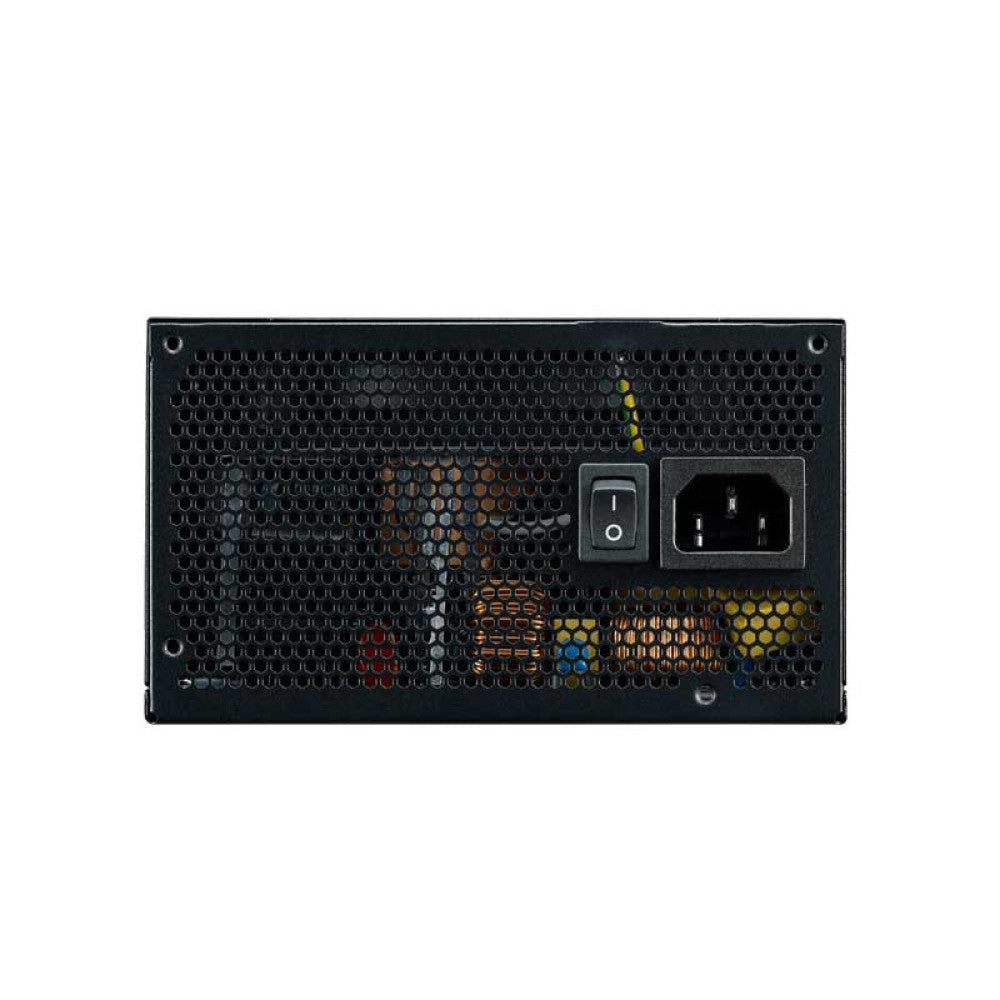

Cooler Master G800 Gold 800 Watt 80 Plus Gold Certified Power Supply
Cooler Master G800 Gold 800 Watt 80 Plus Gold Certified Power Supply
SKU:MPW-8001-ACAAG-IN
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MPW-8001-ACAAG
ENTRY LEVEL 80 PLUS GOLD ATX POWER SUPPLY UNIT
- 80 PLUS Gold Efficiency
- Intel ATX 12V version 2.52
- 2 EPS Connectors
- 120mm HDB Fan
- High Temperature Resistance
- 5 Year Warranty
|
Product Specification |
|
|
Model |
MPW-8001-ACAAG |
|
ATX Version |
ATX 12V V2.52 |
|
PFC |
Active PFC |
|
Input Voltage |
100-240V |
|
Input Current |
12-6A |
|
Input Frequency |
47-63Hz |
|
Dimensions (L X W X H) |
140 x 150 x 86 mm |
|
Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Efficiency |
≥90% @ Typical Load |
|
80 Plus Rating |
80 PLUS Gold |
|
ERP 2014 Lot 3 |
Yes |
|
Operating Temperature |
0-40°C |
|
Power Good Signal |
100 - 150 ms |
|
Hold Up Time |
≥15ms at 100% load |
|
MTBF |
>100,000 Hours |
|
Protections |
OVP, UVP, OPP, OTP, SCP, OCP |
|
Regulatory |
CB, cTUVus, TUV, CE, RoHS2.0, FCC, CCC, BSMI, KC+KCC, BIS, EAC |
|
ATX 24-Pin Connectors |
1 |
|
EPS 4+4 Pin Connectors |
1 |
|
EPS 8 Pin Connector |
1 |
|
SATA Connectors |
6 |
|
Peripheral 4-Pin Connectors |
3 |
|
PCI-E 6+2 Pin Connectors |
4 |
|
Series |
G Series |
|
80 Plus |
Gold |
|
Modular |
Non Modular |
|
Wattage |
Above 750W |
|
Warranty |
5 years |
