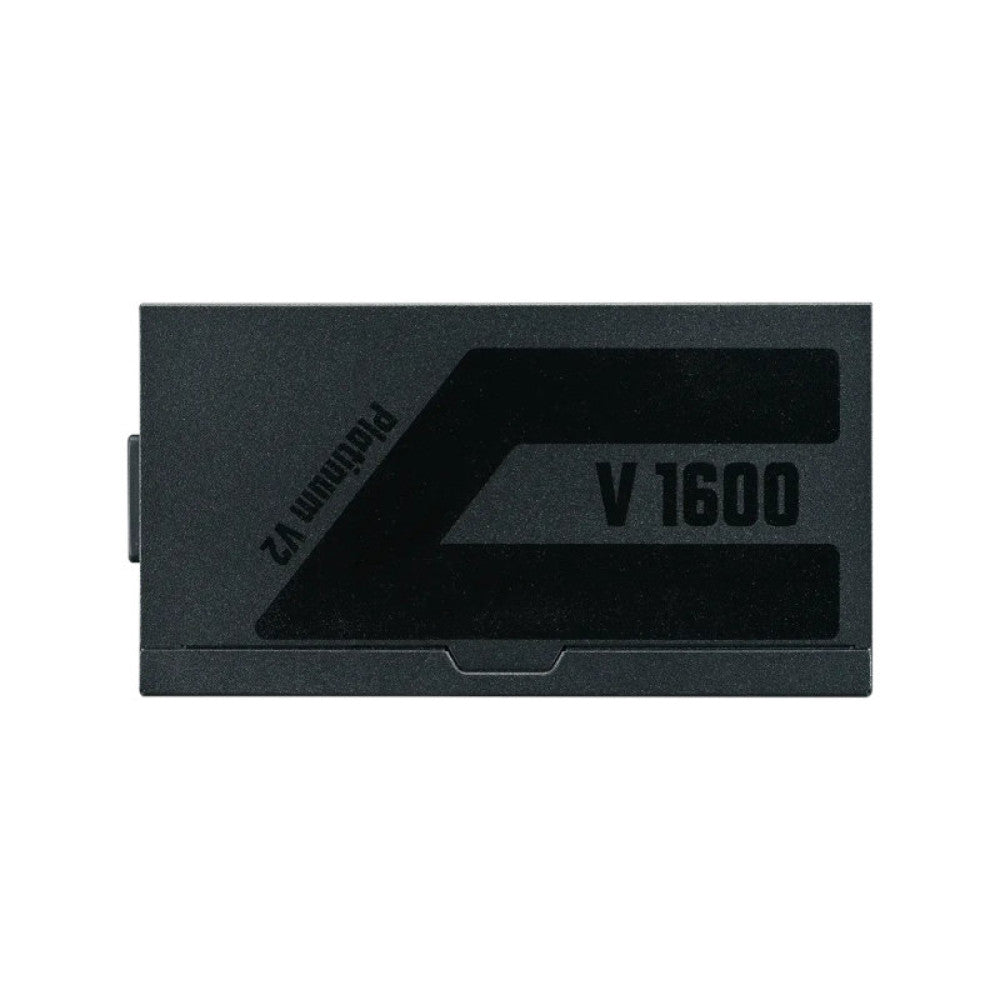

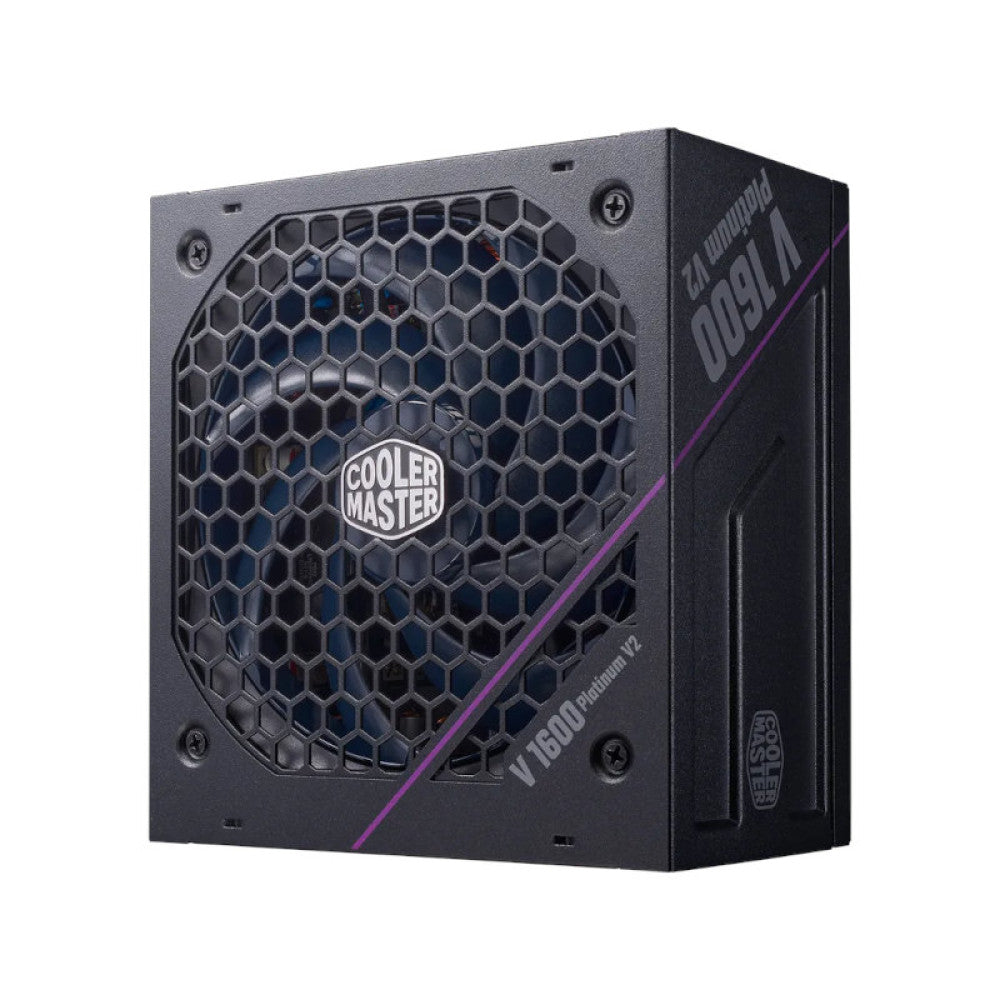

Cooler Master V Platinum 1600 V2 Fully Modular 1600 Watt 80 Plus Platinum ATX 3.1 Power Supply
Cooler Master V Platinum 1600 V2 Fully Modular 1600 Watt 80 Plus Platinum ATX 3.1 Power Supply
SKU:MPZ-G002-AFAP-BIN
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MPZ-G002-AFAP-BIN
- Dual 40 series GPU support
- ATX 3.1 support & two durable 90° 12V-2x6 cables
- Advanced heat dissipation
- Ultra-quiet Mobius fan
- 80 Plus Platinum certification
- 12-year warranty
|
Product Specification |
|
|
Product Name |
V Platinum 1600 V2 |
|
Item Code |
MPZ-G002-AFAP-BIN |
|
ATX Version |
ATX 12V Ver. 3.1 |
|
PFC |
Active PFC |
|
Input Voltage |
100 - 240V |
|
Input Current |
16 - 8A |
|
Input Frequency |
50 - 60Hz |
|
Dimensions (L x W x H) |
160 x 150 x 86mm |
|
Fan Size |
135 mm |
|
Fan Bearing |
LDB (Mobius FAN) |
|
Fan Speed |
2400±10% rpm |
|
Efficiency |
≥ 92% @ Typical Load |
|
80 PLUS Rating |
80 PLUS Platinum |
|
ErP 2014 Lot 3 |
Yes |
|
Operating Temperature |
0 ~ 50℃ |
|
Power Good Signal |
100 - 150ms |
|
Hold Up Time |
≥ 16ms |
|
MTBF |
>100,000 hours |
|
Protections |
OPP / OVP / OTP / OCP/ SCP / UVP / Surge & Inrush Protection |
|
Regulatory |
cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
|
Connectors |

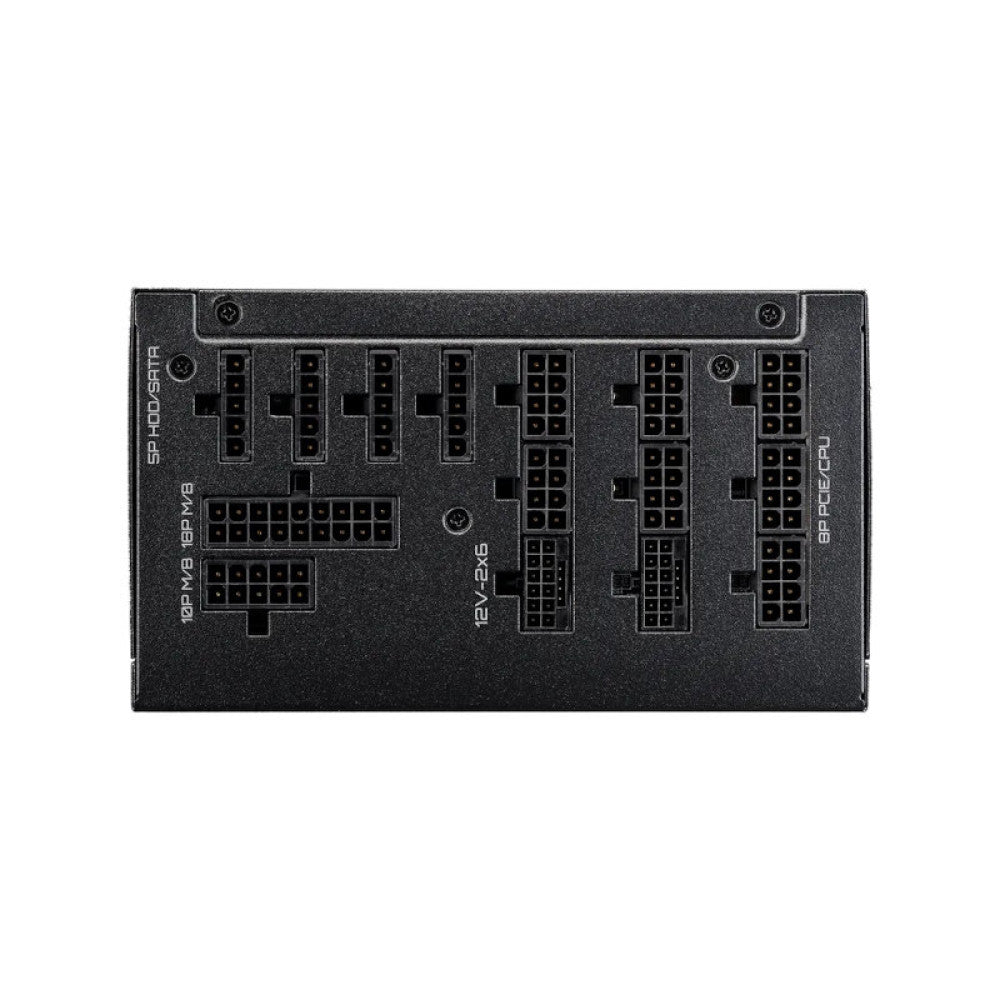

ATX 24 Pin: x1 = 1x (650mm) EPS 4+4 Pin: x1 = 1x (650mm) EPS 8 Pin: x1 = 1x (650mm) SATA: x16 = 4x (500+120+120+120mm) Peripheral 4 Pin: x4 = 1x (500+120+120+120mm) PCI-e 6+2 Pin: x5 = 5x (550mm) 12V-2x6: x2 = 2x (650mm) |
|
Weight |
Net: 3.55 kg Gross: 4.40 kg |
|
Package Dimensions |
320 x 195 x 125mm |
|
Warranty |
12 Years |
