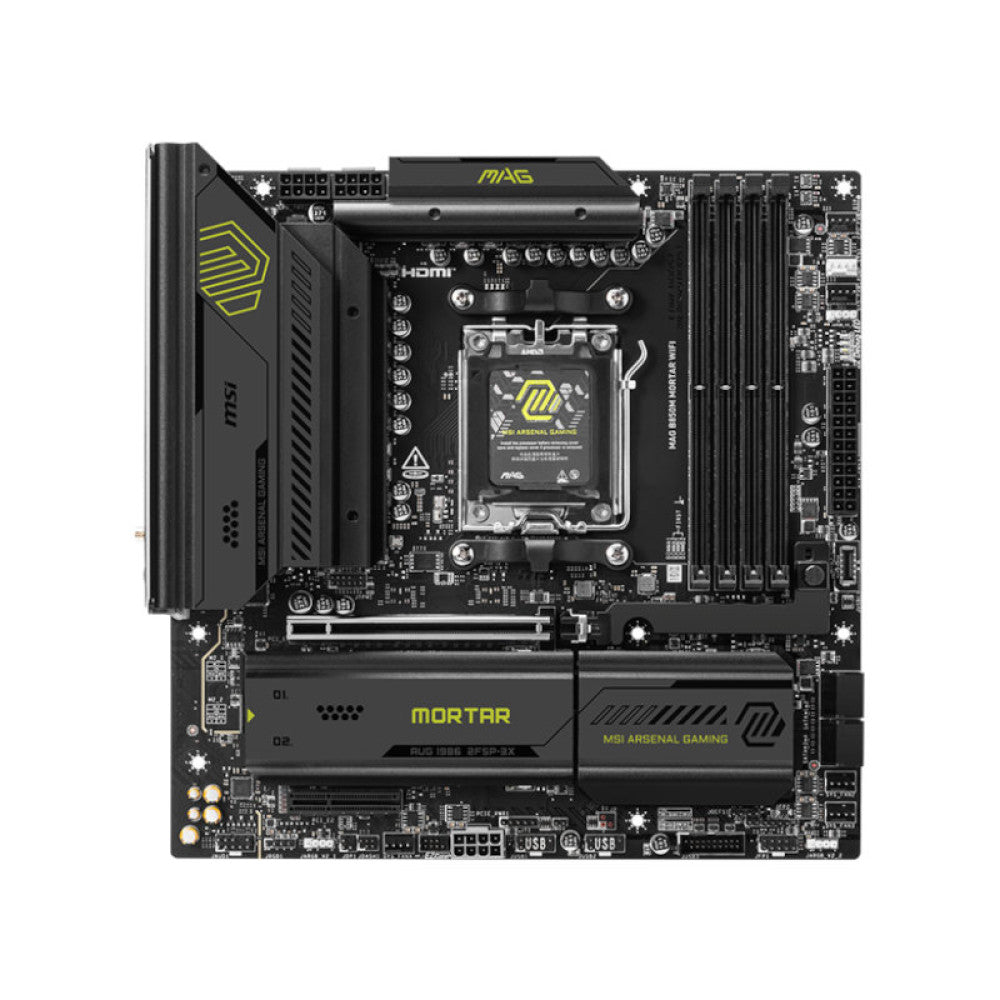

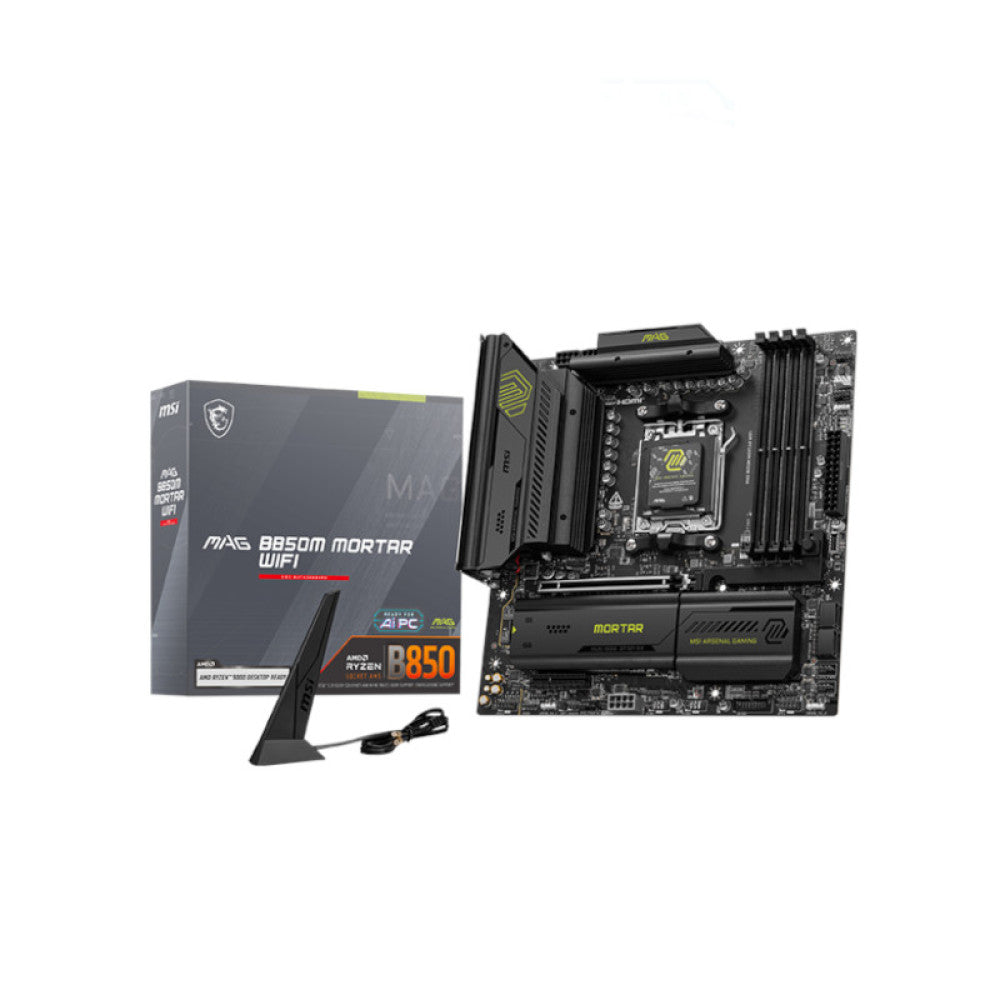

MSI MAG B850M Mortar WIFI M-ATX Motherboard

MSI MAG B850M Mortar WIFI M-ATX Motherboard

MAG-B850M-MORTAR-WIFI

Rs. 21,670.00
Rs. 31,999.00 Rs. 21,670.00
32% OFF Sold out
Taxes included. Shipping calculated at checkout.

!! Please Verify Product Availability and Pricing before Placing an Order, as Prices may vary due to Market Volatility !! For Confirmation, Please Call/WhatsApp: +91 9382450367

  • 100% Genuine Products
  • Easy Returns and Refunds
  • Shipped in 1-2 Days

Model: MAG-B850M-MORTAR-WIFI

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
  • Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
  • 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Product Specification

Platform

AMD

Socket

AM5

Cpu Type

Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset

B850

Memory Speed

up to 8200+

Max Memory Support

256 GB

Supported Memory Type

DDR5

Channel Supported

Dual Channel

Memory Feature

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit brand website

Graphics Port

1 x HDMI

Expansion Slots

1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)

Wireless Networking

WiFi 7,Bluetooth 5.4

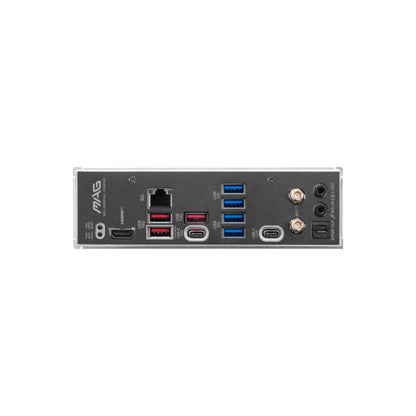

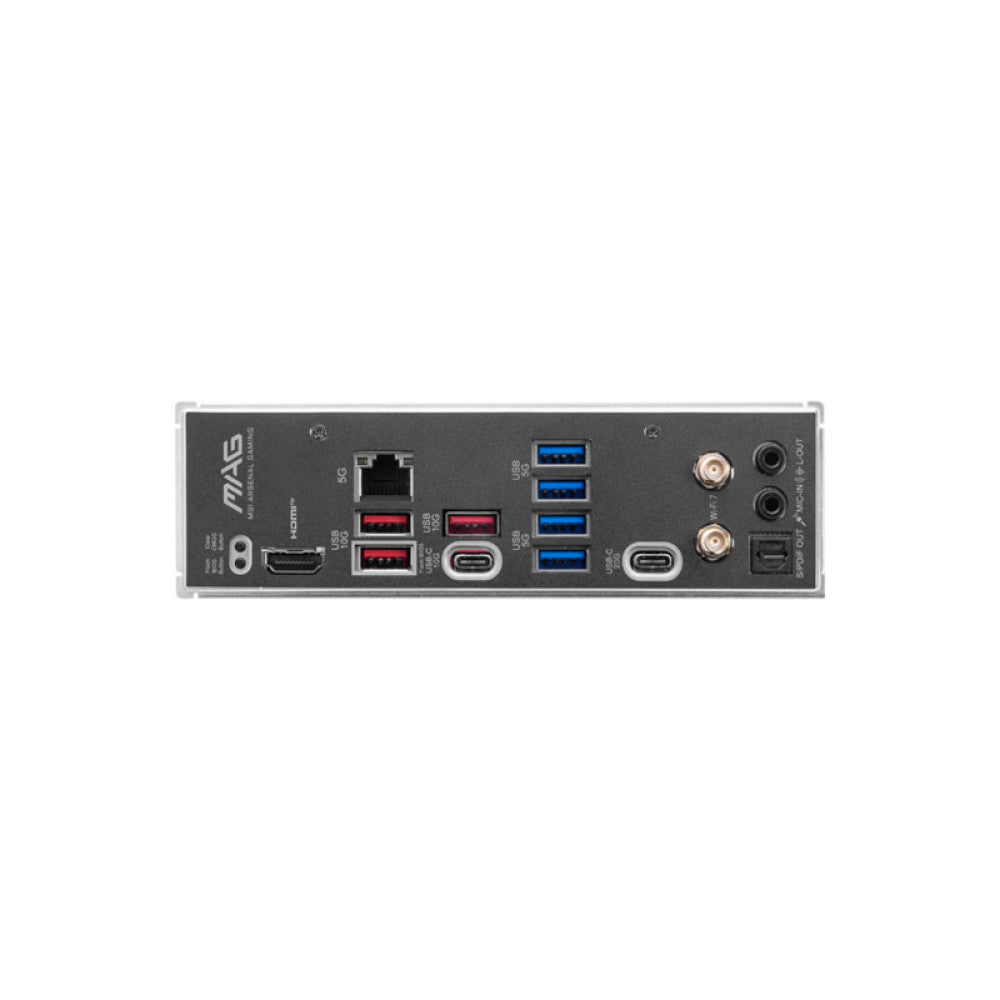

Back Panel I/O Ports

Clear CMOS Button
5G LAN
USB 10Gbps Type-A
USB 5Gbps Type-A
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-A
USB 10Gbps Type-C
USB 20Gbps Type-C
Wi-Fi / Bluetooth
Optical S/PDIF Out

Internal I/O Connector

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

Form Factor

Micro-ATX

Warranty

3 Years
