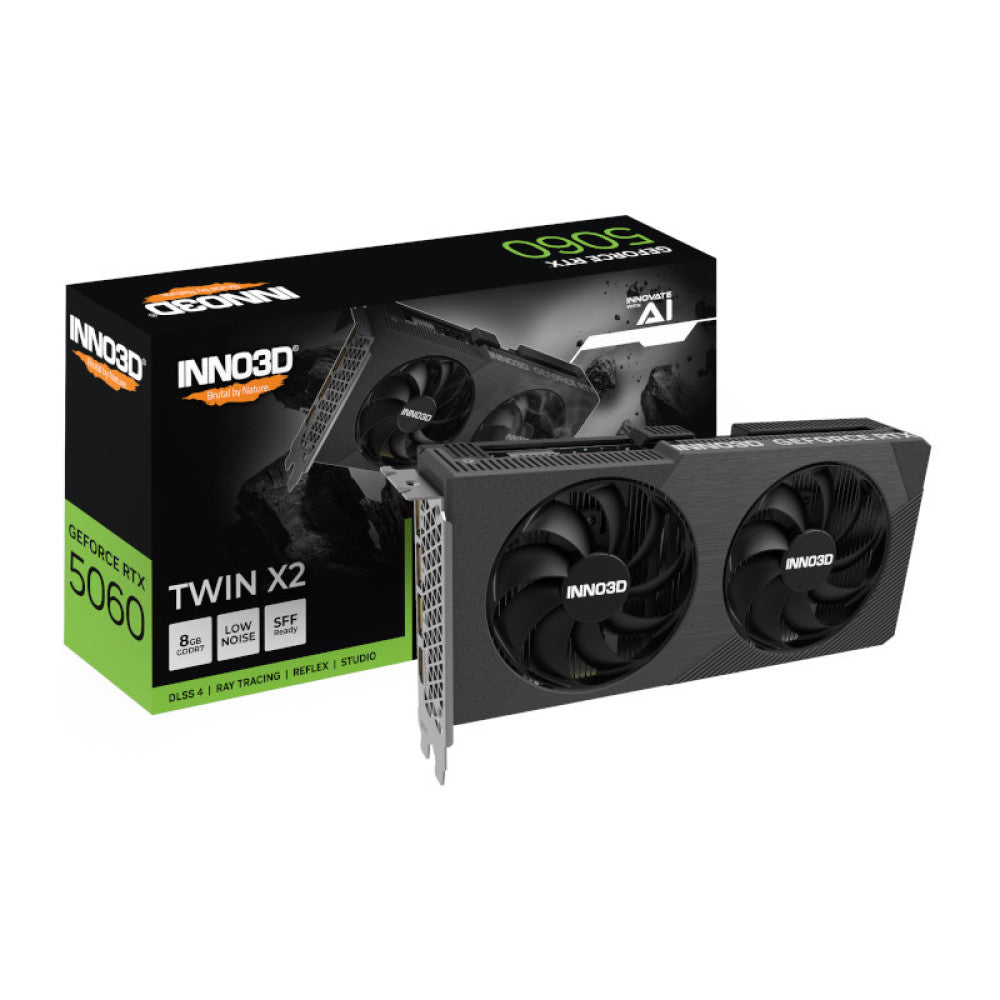

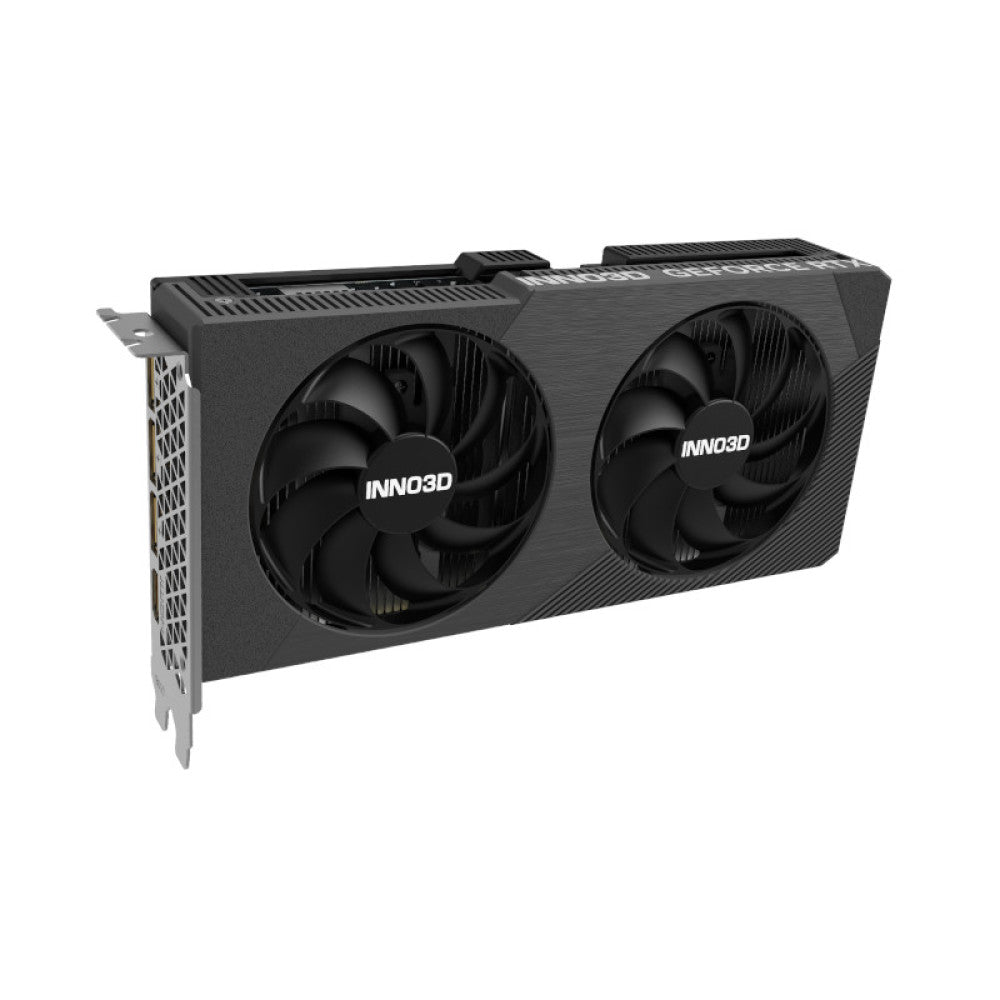

INNO3D GeForce RTX 5060 Twin X2 8GB GDDR7

GPU Engine Specs

CUDA Cores: 3840

Boost Clock (MHz): 2497MHz

Base Clock (MHz): 2280MHz

Thermal and Power Spec

Minimum System Power Requirement (W): 550W

Supplementary Power Connectors: 1x PCIe 8-pin cables

Memory Specs

Memory Clock: 28Gbps

Standard Memory Config: 8GB

Memory Interface: GDDR7

Memory Interface Width: 128-bit

Memory Bandwidth (GB/sec): 448 GB/sec

Feature Support

Real-Time Ray Tracing: Yes

Ray Tracing Cores: 4th Generation, 58 TFLOPS

Tensor Cores: 5th Generation, 614 AI TOPS

NVIDIA Architecture: Blackwell

Microsoft DirectX: 12 Ultimate

NVIDIA DLSS: 4

NVIDIA Ansel: Yes

NVIDIA FreeStyle: Yes

Bus Support: PCI Express Gen 5

NVIDIA ShadowPlay: Yes

OS Certification: Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights: Yes

NVIDIA G-SYNC™-Ready: Yes

Game Ready Drivers: Yes

NVIDIA Studio Drivers: Yes

NVIDIA GPU Boost™: Yes

Vulkan API: 1.4

OpenGL: 4.6

NVIDIA Encoder: 1x Ninth Generation

NVIDIA Decoder: 1x Sixth Generation

Accessories

NA

Graphics Card Dimensions

Length: 225

Height: 116

Width: 41

Display Support

Multi Monitor: up to 4

Maxmium Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC

HDCP: 2.3

Standard Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b

Warranty

3 Years
