Noctua NF-F12 5V PWM Cabinet Fan
Noctua NF-F12 5V PWM Cabinet Fan
SKU:NF-F12-5V-PWM
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: NF-F12-5V-PWM

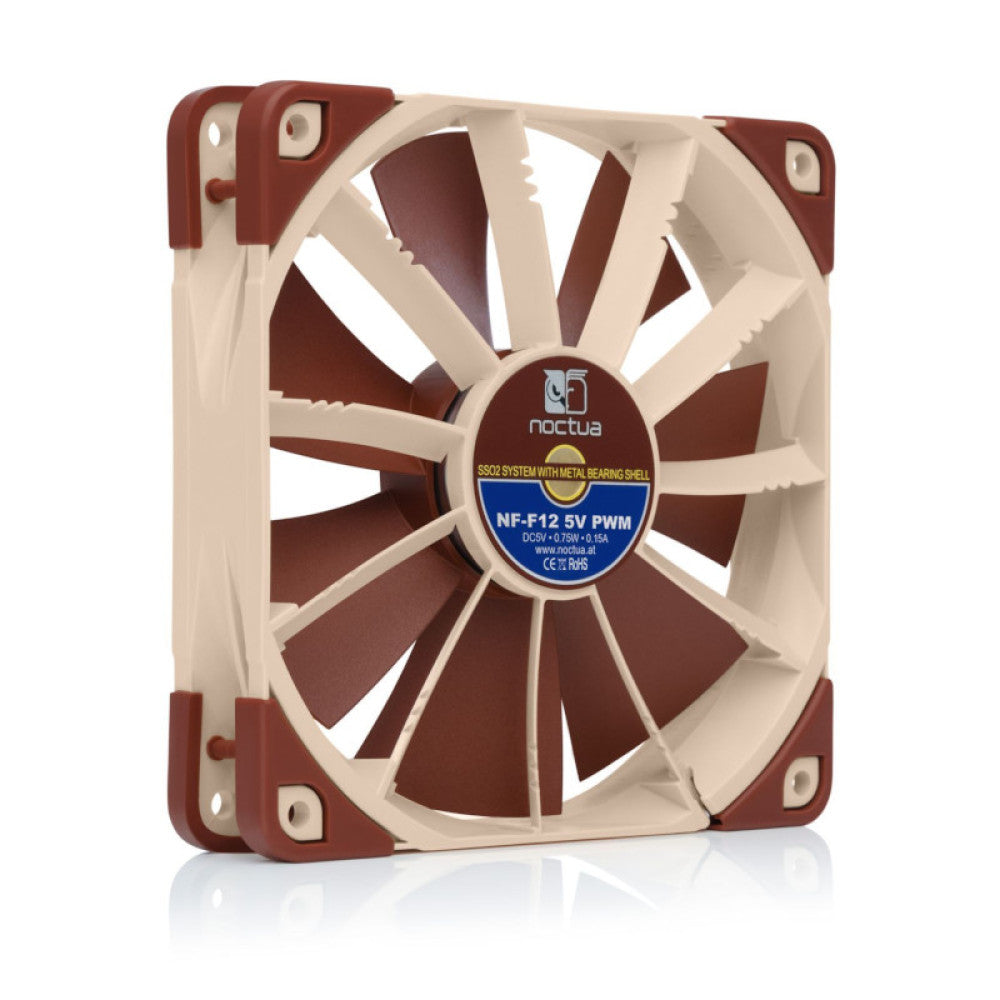

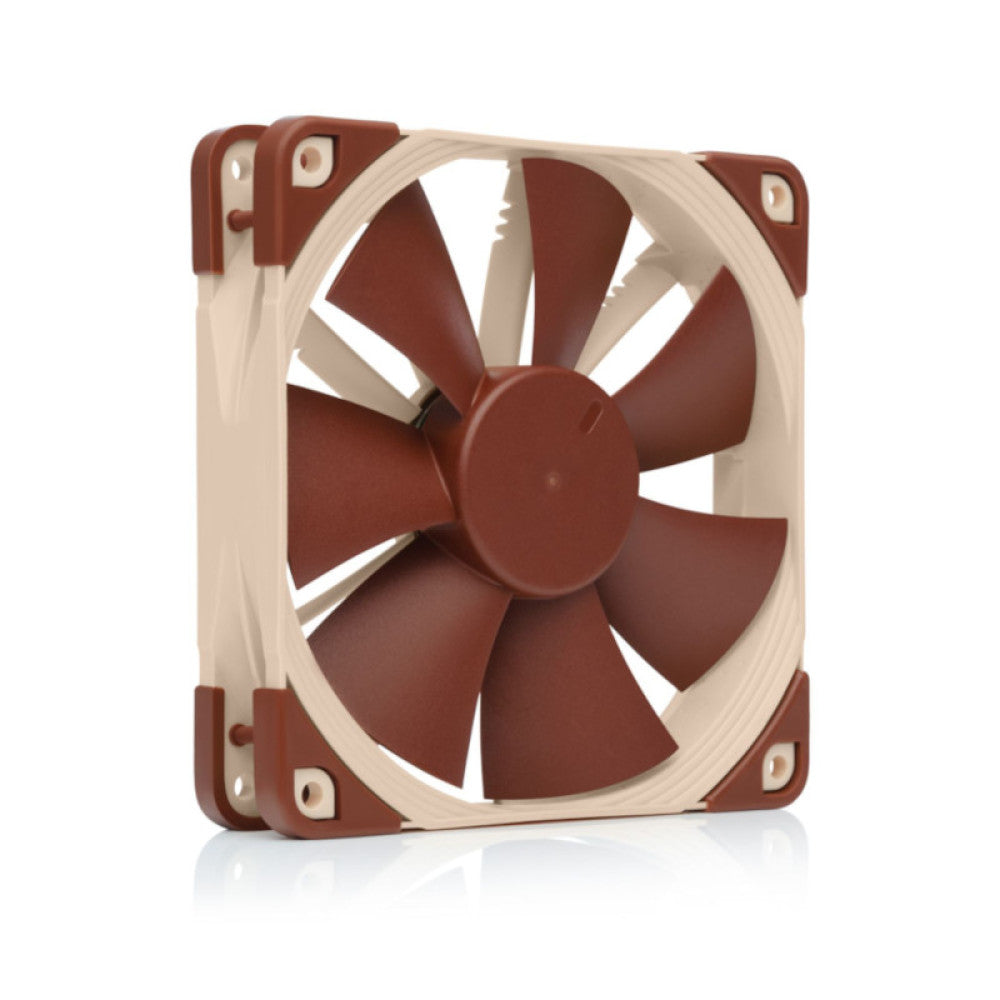

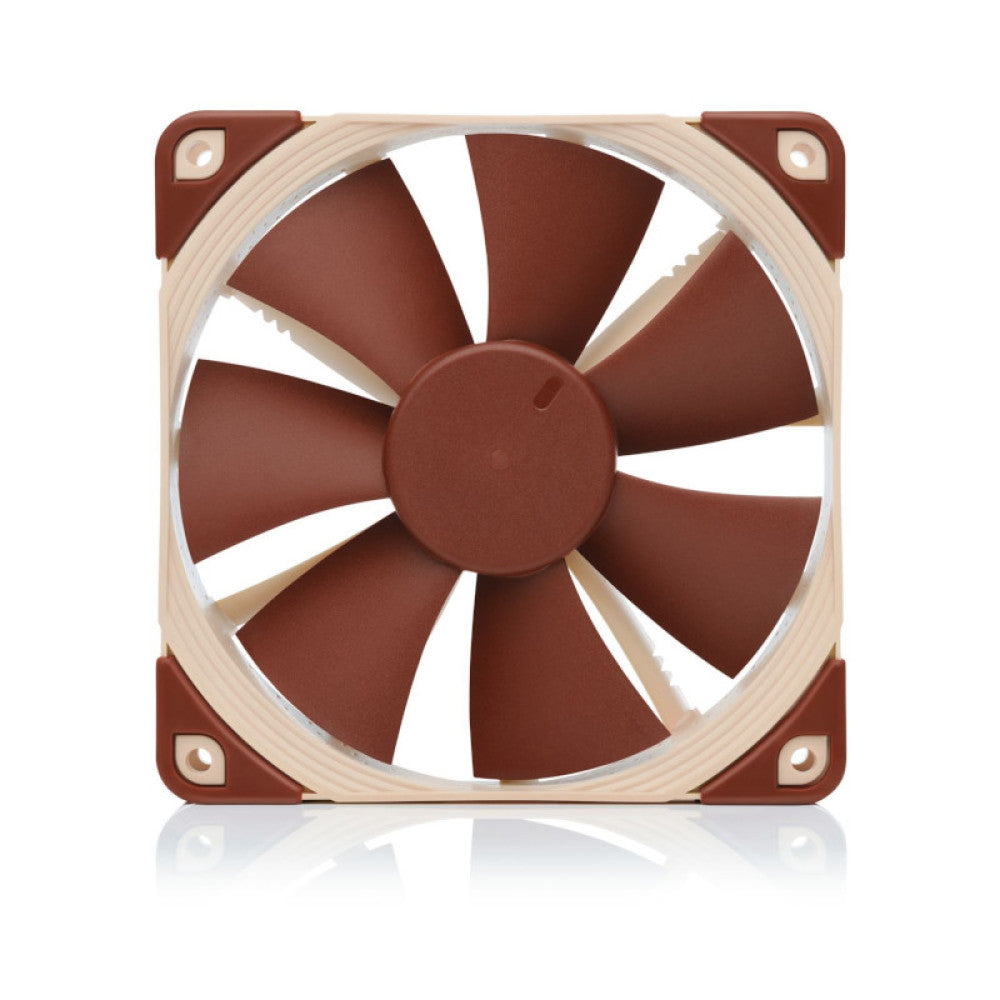

The NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua’s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow™ system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin™ adaptor set and 6-year manufacturer’s warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications that require PWM control.
|
Product Specification |
|
|
Notes and warnings |
Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
|
Size |
120x120x25 mm |
|
Mounting hole spacing |
105x105 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Bearing |
SSO2 |
|
Blade geometry |
Heptaperf™ |
|
Frame technology |
Focused Flow™ |
|
Rotational speed (+/- 10%) |
1500 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
300 RPM |
|
Airflow |
93.4 m³/h |
|
Acoustical noise |
22.4 dB(A) |
|
Static pressure |
2.61 mm H₂O |
|
Input power (typical) |
0.65 W |
|
Input power (max.) |
0.75 W |
|
Input current (typical) |
0.13 A |
|
Max. input current |
0.15 A |
|
Operating voltage |
5 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
30cm extension cable NA-AV1 anti-vibration mounts USB power adaptor cable OmniJoin adaptor set Fan screws |
|
Warranty |
6 Years |
