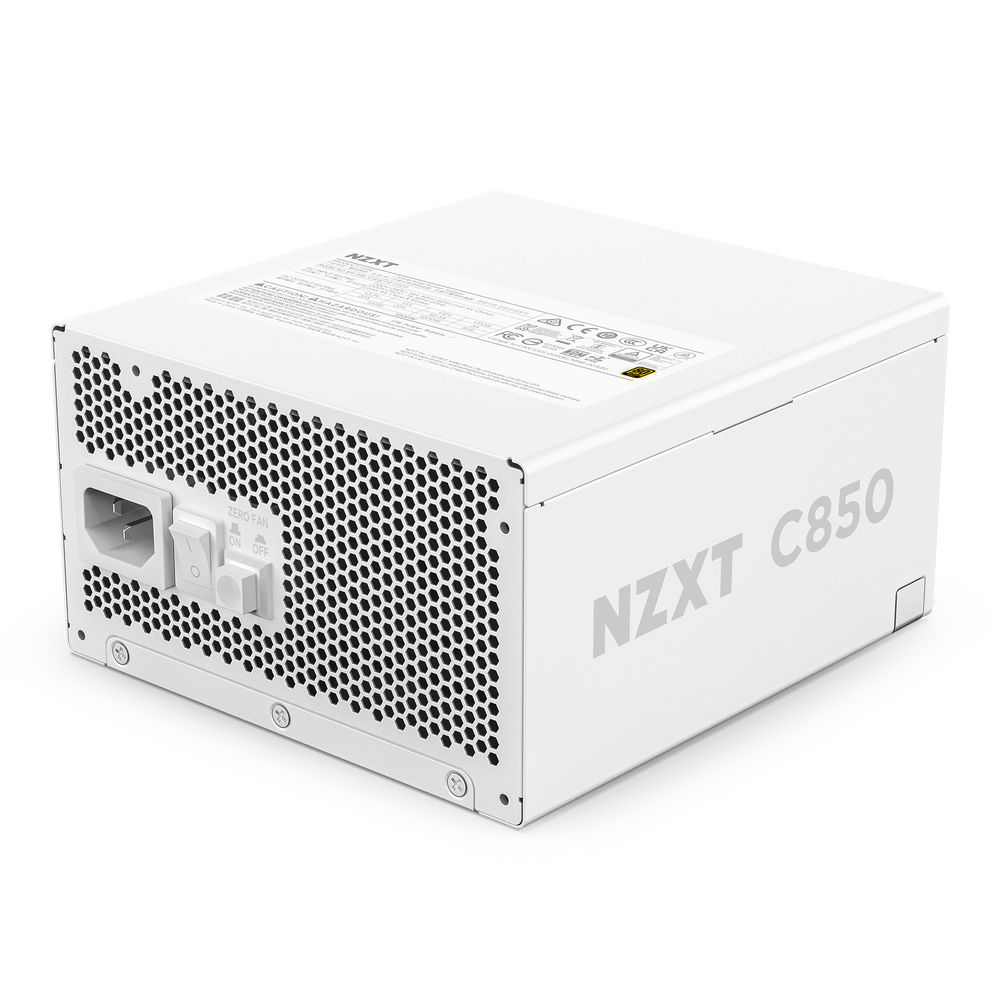

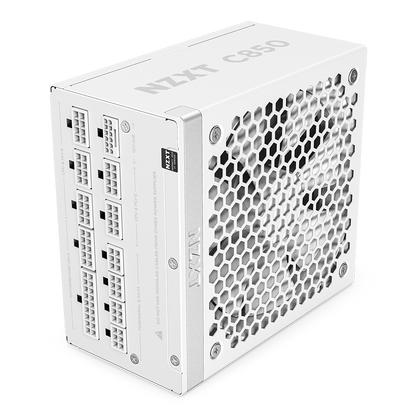

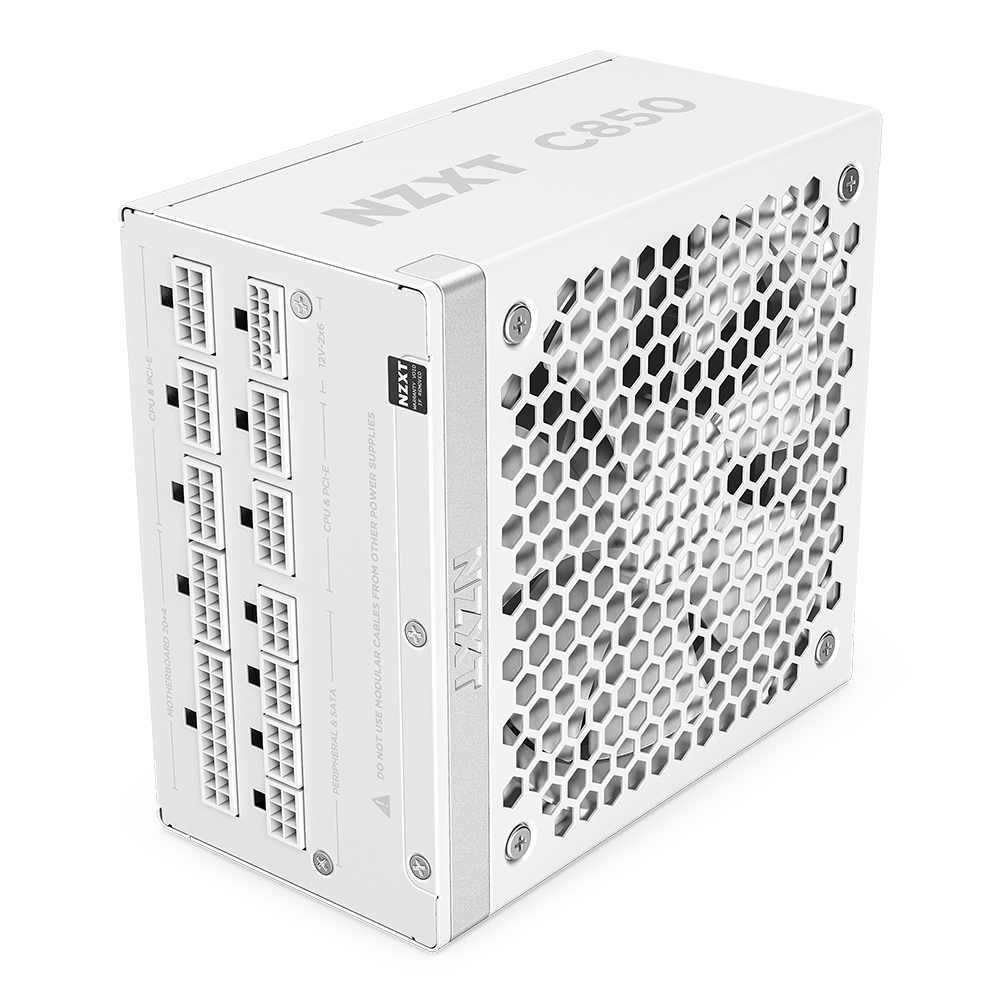

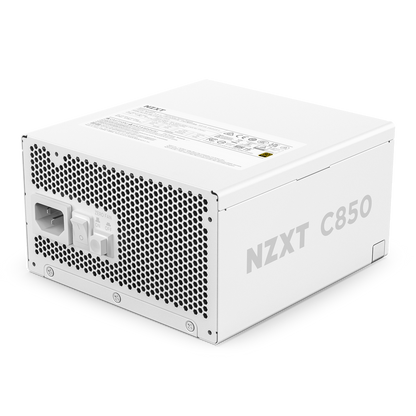

NZXT C850 Gold ATX 3.1 850 Watt 80 PLUS Gold Fully Modular Power Supply (White)
NZXT C850 Gold ATX 3.1 850 Watt 80 PLUS Gold Fully Modular Power Supply (White)
SKU:PA-8G2BW-UK
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: PA-8G2BW-UK
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 50 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.
- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
|
Product Specification |
|
|

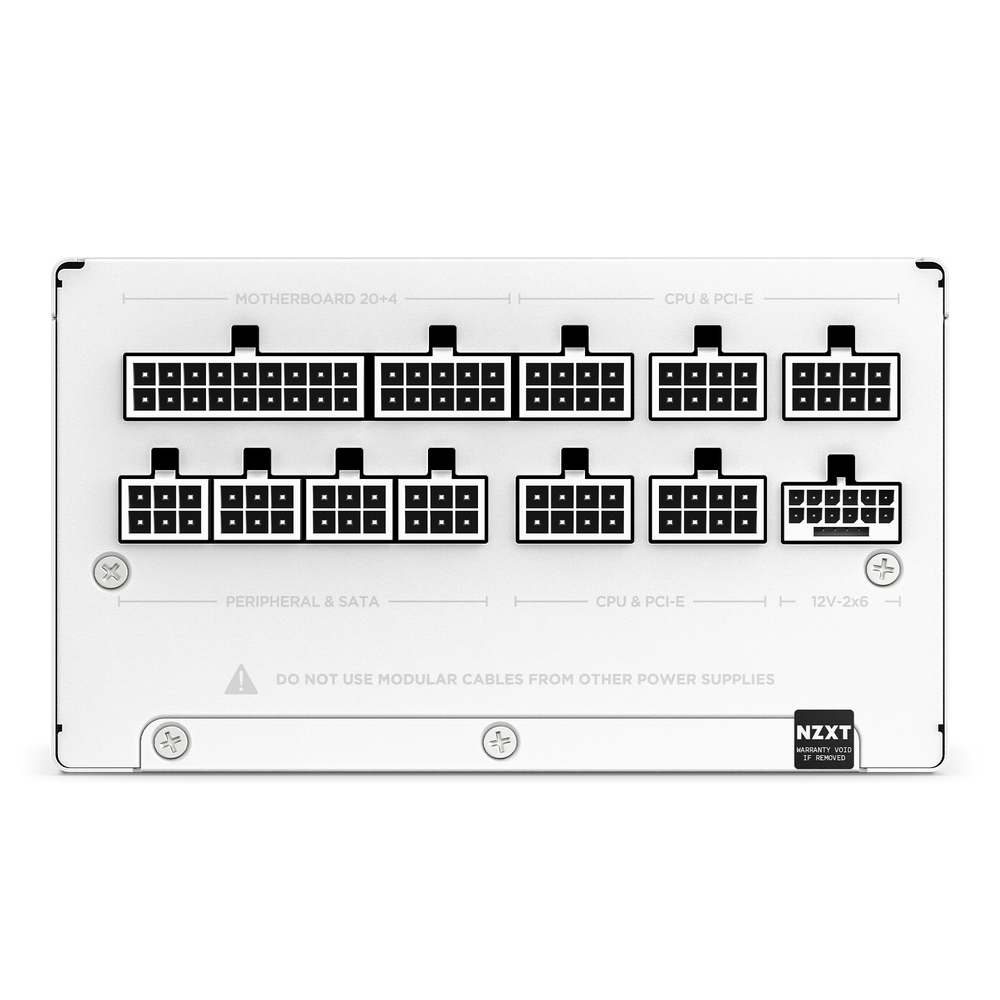

Output Connectors |
24-pin ATX Power Cable:: 1 4+4-pin CPU Power Cable: 1 8-pin CPU Power Cable: 1 6+2-pin PCIe Power Cable: 3 16-pin (12+4) 12V-2x6 PCIe Cable: 1 SATA Cable: 12 Peripherals Cable: 4 |
|
Cable Specs |
24-pin ATX Power Cable: 600mm with nylon sleeving 4+4-pin CPU Power Cable: 700mm with nylon sleeving 8-pin CPU Power Cable: 700mm with nylon sleeving 6+2-pin PCIe Power Cable: 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving SATA Cable: 500 + 150mm Peripherals Cable: 500 + 150mm |
|
AC Input Rating |
100 - 240Vac: 10A-5A 50Hz-60Hz 200 - 240Vac: - |
|
DC Output Rating |
3.3V / +5V: 22A (120W) 12V: 70.83A (850W) 5Vsb: 3A (15W) Total: 8500W |
|
Energy Efficiency |
Rating: 80 Plus Gold 10% loading: 85.8% @115Vac 20% loading: 89.5% @115Vac 50% loading: 91.7% @115Vac 100% loading: 89.2% @115Vac |
|
Electrical Features |
PF Correction: Active @0.99 Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |
|
Fan Specs |
Dimensions: 135 x 135 x 25 mm Speed: 2300 ± 10% RPM Airflow: 93.02 CFM (Min.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
|
Operation |
MTBF: 100,000 hours Temperature: 0 - 50 °C |
|
Dimensions |
Width: 150 mm Height: 86 mm Depth: 160 mm |
|
General |
Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v3.1 / EPS12V v2.92 Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
|
Warranty |
10 years |
