NZXT H6 Flow (ATX) Mid Tower Cabinet
NZXT H6 Flow (ATX) Mid Tower Cabinet
SKU:CC-H61FB-01
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: CC-H61FB-01
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.

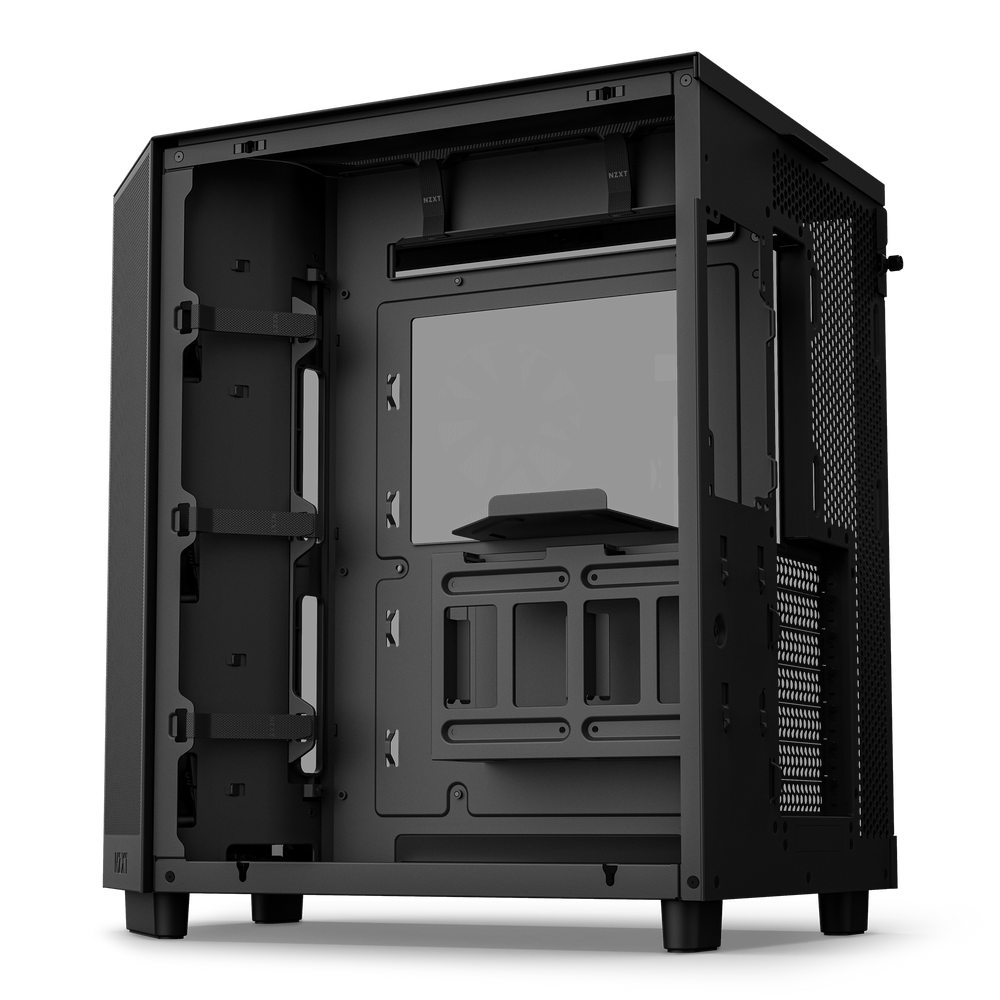

- An intuitive cable management system simplifies the build process by using wide channels and straps.

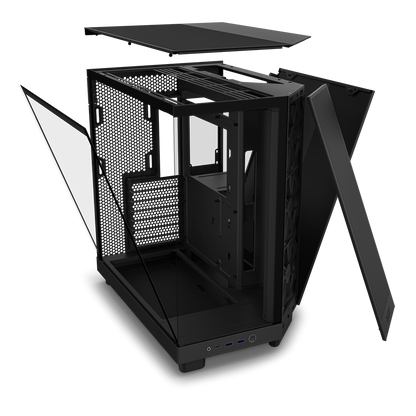

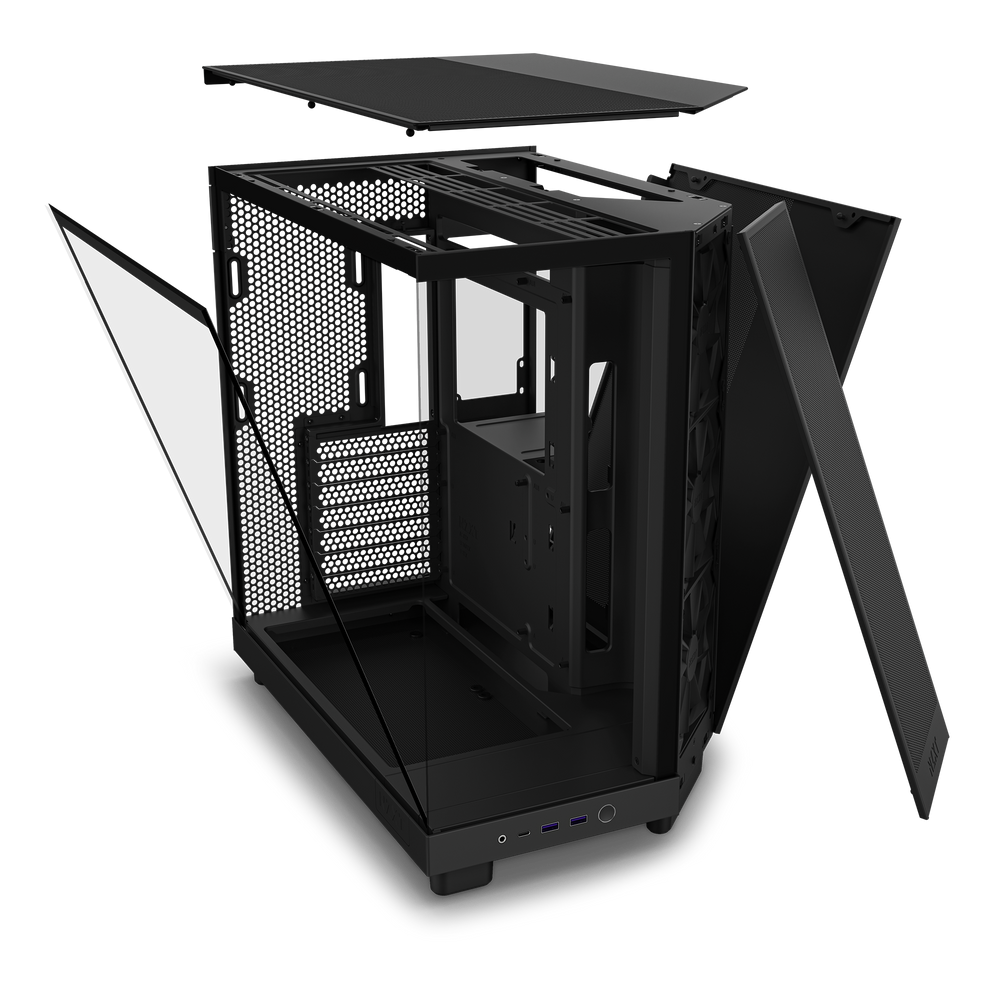

- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Product Specification
|
Key Specs |
|
|
Motherboard Support |
ATX, Micro-ATX, Mini-ITX |
|
Enclosure Type |
Mid Tower |
|
Case Material |
SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only) |
|
Drive Bays |
|
|
2.5″ |
2 |
|
3.5″ |
1 |
|
Dimensions |
|
|
Height (with Feet) |
435 mm / 17.13 in |
|
Width |
287 mm / 11.3 in |
|
Depth |
415 mm / 16.34 in |
|
Weight |
9.4Kg |
|
Fan Support |
|
|
Front-Right |
3 x 120 mm (3 x F120Q included) |
|
Top |
3 x 120 mm / 2 x 140 mm |
|
Bottom |
2 x 140 mm |
|
Rear |
1 x 120mm |
|
Filters |
High-Performance Mesh |
|
Compatibility & Clearance |
|
|
CPU Cooler Height |
163 mm / 6.42 in |
|
GPU Length |
365 mm / 14.37 in |
|
PSU Length |
200 mm / 7.87 in |
|
Cable Management |
91 mm / 3.58 in |
|
Top Radiator |
30 mm / 1.18 in |
|
Radiator Support |
|
|
Top |
Up to 360mm |
|
Rear |
Up to 120mm |
|
Fan Specs |
|
|
Model |
F120Q Airflow Fan (Case Version) |
|
Speed |
1200 ± 240 RPM |
|
Airflow |
62.18 CFM |
|
Static |
1.05 mm – H₂O |
|
Noise |
25.1 dBA |
|
Fan Controller |
3 – Pin |
|
Front I/O Ports |
|
|
USB 3.2 Gen 1 Type-A |
2 |
|
USB 3.2 Gen 2 Type-C |
1 |
|
Headset Audio Jack |
1 |
|
Expansion Slots |
|
|
Standard |
7 |
|
Vertical |
0 |
|
Warranty |
2 Years |
