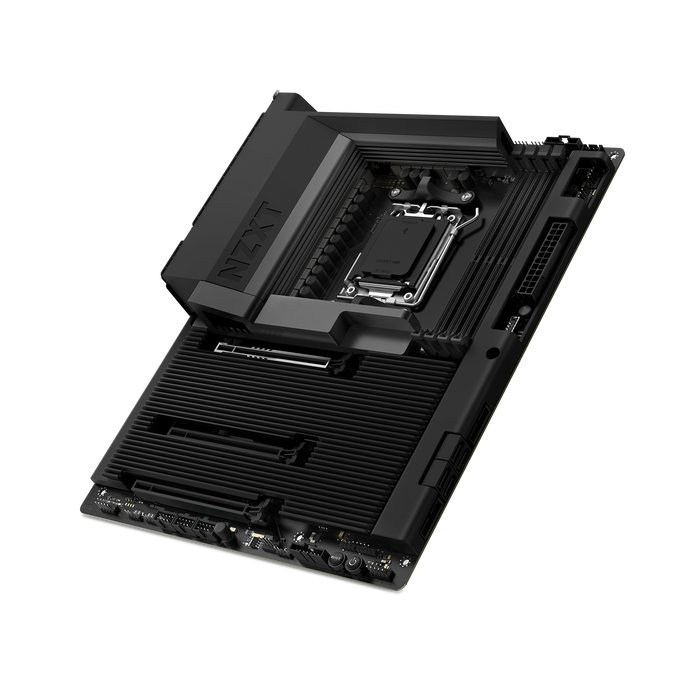

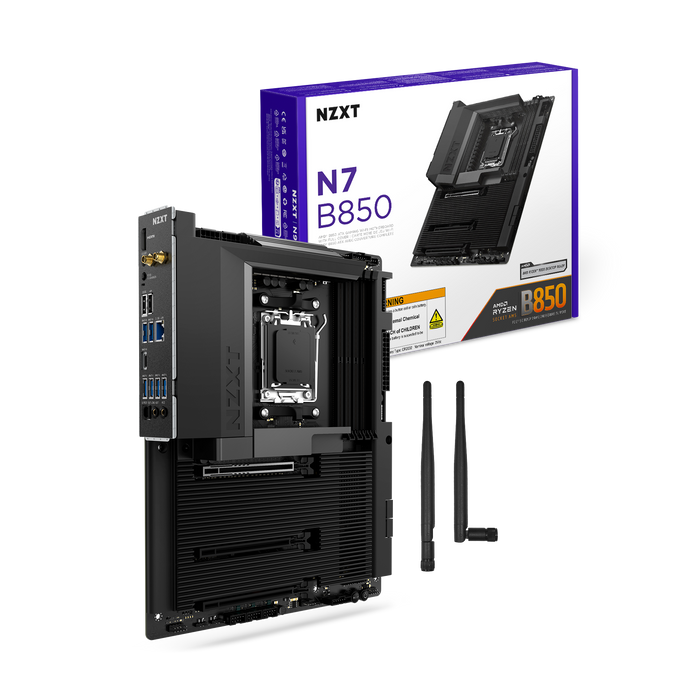

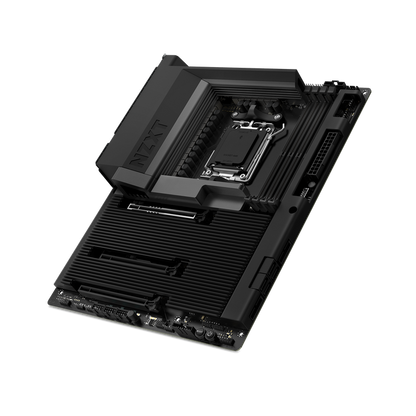

NZXT N7 B850 WIFI ATX Motherboard

NZXT N7 B850 WIFI ATX Motherboard

N7-B85XT-B1

Rs. 25,760.00
Rs. 54,999.00 Rs. 25,760.00
53% OFF Sold out
Taxes included. Shipping calculated at checkout.

!! Please Verify Product Availability and Pricing before Placing an Order, as Prices may vary due to Market Volatility !! For Confirmation, Please Call/WhatsApp: +91 9382450367

  • 100% Genuine Products
  • Easy Returns and Refunds
  • Shipped in 1-2 Days

Model: N7-B85XT-B1

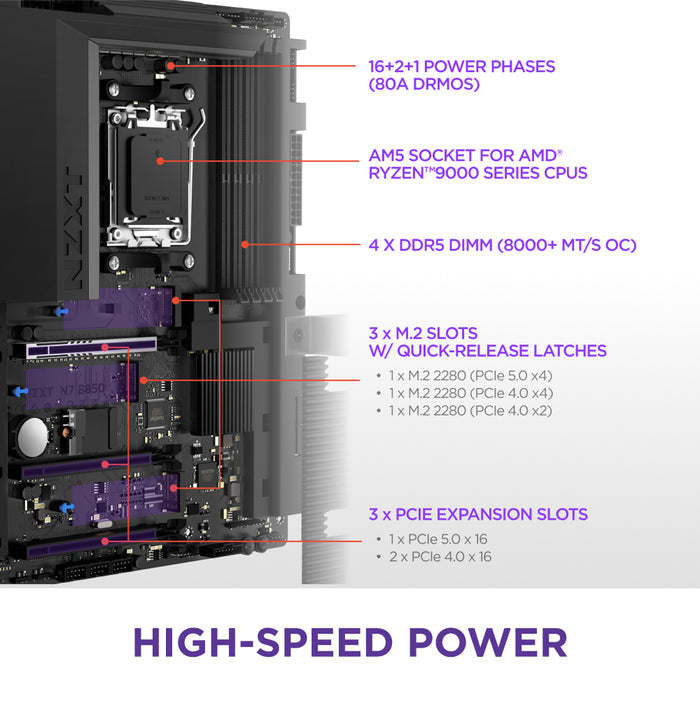

  • AMD® AM5 Socket: Ready for AMD® Ryzen™ 9000, 8000, and 7000 series desktop processors.
  • Optimal Power: 16+2+1 power phase design with 80A DrMOS and an eight-layer 2-ounce copper PCB ensure stable power delivery.

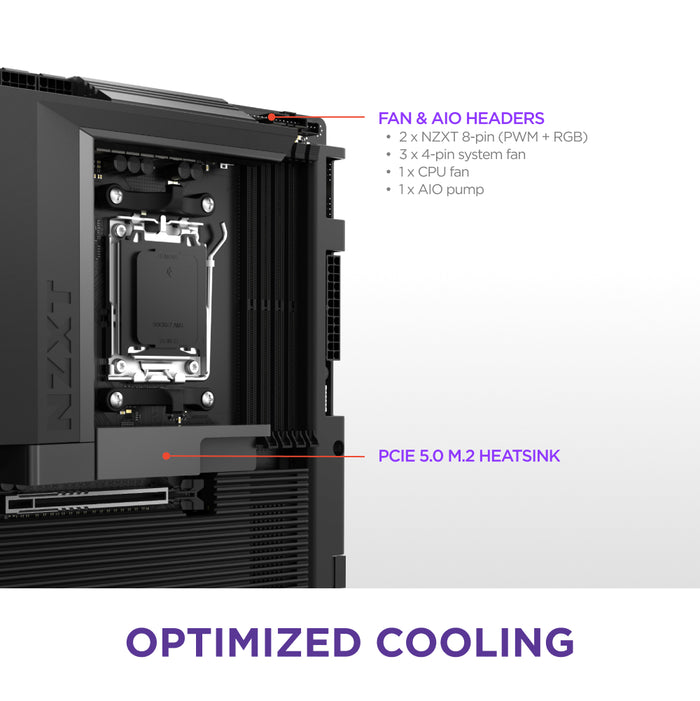

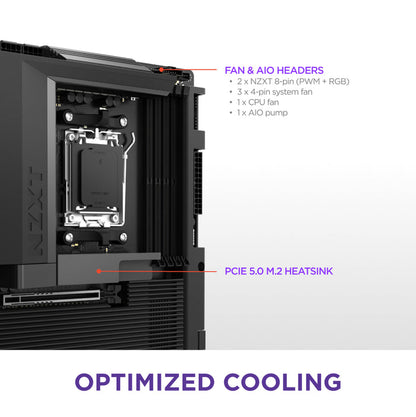

  • M.2 Heatsink: An aluminum heatsink on the top-most PCIe 5.0 M.2 slot keeps temperatures low.
  • PCIe® 5.0 Expansion: One PCIe® 5.0 x16 slot for next-gen GPUs and two PCIe® 4.0 x16 slots for high-speed expansion.
  • High-Speed Storage: Three M.2 slots, including one PCIe® 5.0 with a quick-release latch and two PCIe® 4.0 provide ultra-fast storage speeds and quick load times.
  • DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
  • Fast Connectivity: Wi-Fi 6E and 2.5GbE enable high-speed data transfers and low-latency networking.
  • Sleek, Minimal Design: A full PCB cover provides a clean, modern aesthetic that integrates seamlessly into any build.

Product Specification:

Platform

AMD

Socket

AM5

Cpu Type

Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset

B850

Memory Speed

up to 8000+

Supported Memory Type

DDR5

Channel Supported

Dual Channel

Memory Feature

Extreme Memory Profile (XMP)
EXTended Profiles for Overclocking (EXPO)

Graphics Port

HDMI:1

Expansion Slots

PCIe 5.0 ×16 slot (PCIEX16_1) : 1 (supports ×16 mode)
PCIe 4.0 ×16 slots (PCIEX16_2 & PCIEX16_3): 2 (supports ×2 mode)
M.2 Socket (Key E) :1 (supports Type 2230 Wi-Fi/BT PCIe module)

Wireless Networking

WiFi 6E, Bluetooth 5.2

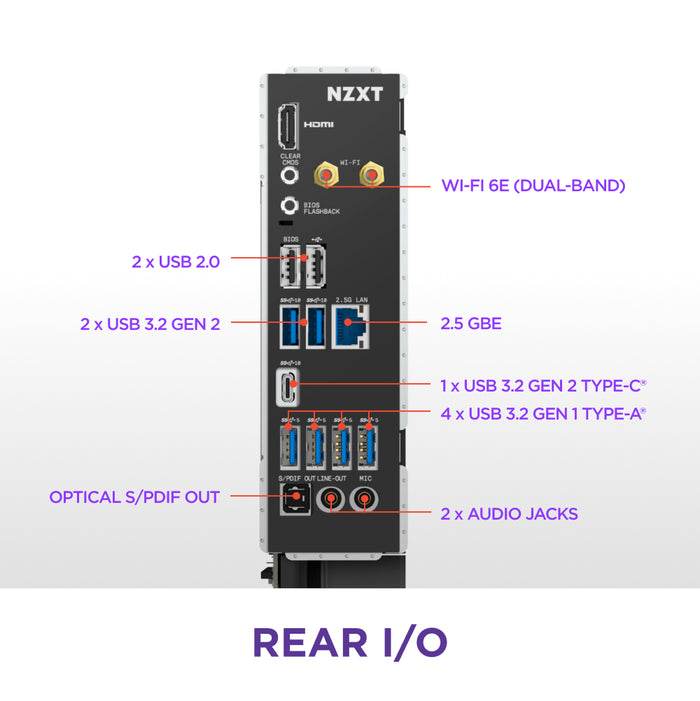

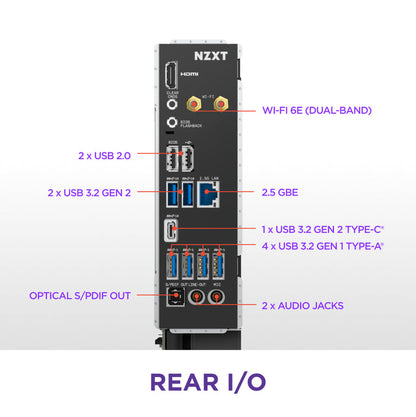

Back Panel I/O Ports

Wireless antenna SMA connectors:2
USB 3.2 Gen 2 Type-C port:1
USB 3.2 Gen 2 Type-A ports:2
USB 3.2 Gen 1 Type-A ports : 4
USB 2.0 ports:2
Clear CMOS button:1
LAN (RJ45) port:1
Audio jacks:2
Optical S/PDIF Out port:1

Internal I/O Connector

24-pin ATX power connector :1
8-pin ATX 12V power connectors:2
CPU_FAN connector (4-pin):1
AIO_PUMP connector (4-pin):1
SYS_FAN connectors (4-pin):3
NZXT RGB LED connector:1
5V ARGB LED connectors:2
NZXT 8-pin PWM connectors:2
USB 2.0 header (up to 6 ports):3
USB 3.2 Gen1 header (up to 4 ports):2
USB 3.2 Gen2x2 front panel header:1
Front panel audio connector:1
Power button:1
Reset button:1
POST LEDs:1

Form Factor

ATX

Warranty

3 Years
