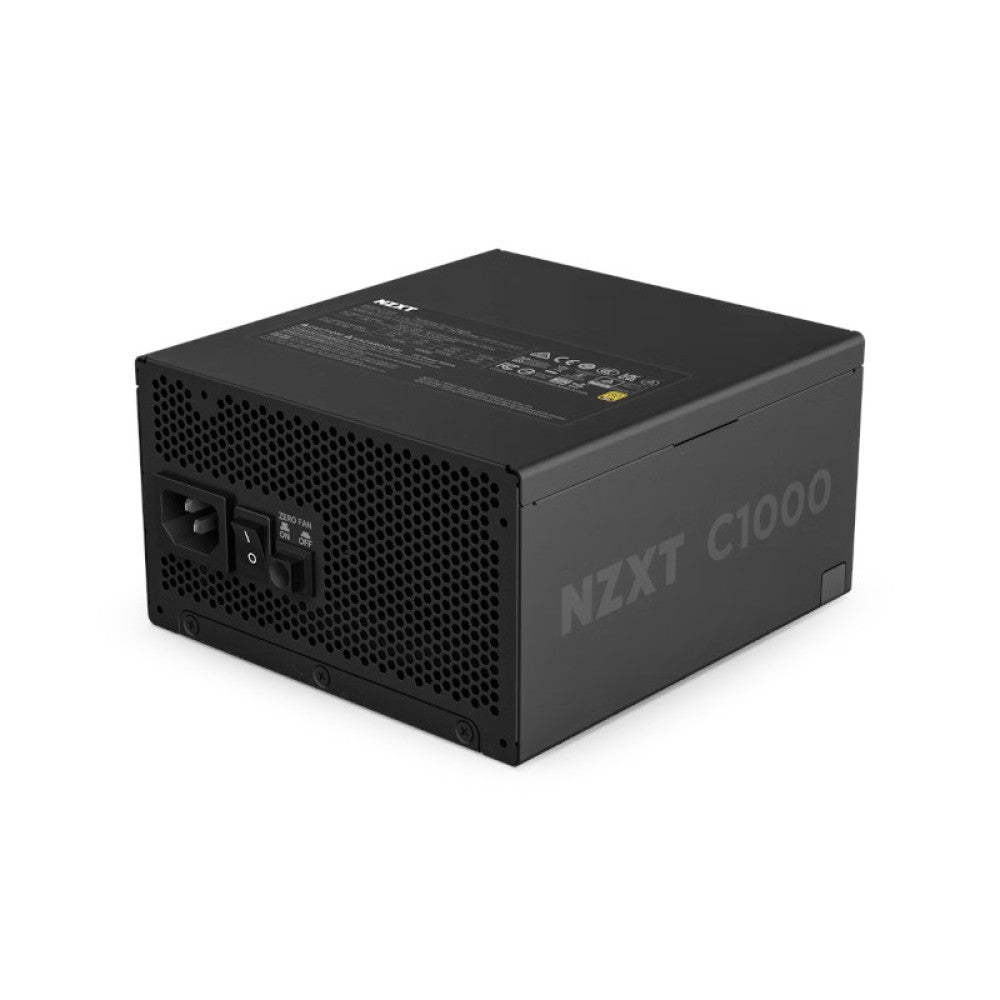

NZXT C1000 Gold ATX 3.1 1000 Watt 80 PLUS Gold Fully Modular Power Supply
NZXT C1000 Gold ATX 3.1 1000 Watt 80 PLUS Gold Fully Modular Power Supply
SKU:PA-0G2BB-UK
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: PA-0G2BB-UK
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
- Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
- Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
- 135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
- 100% premium Japanese capacitors improve hold-up time and minimal ripple noise, ensuring reliable and stable power delivery.

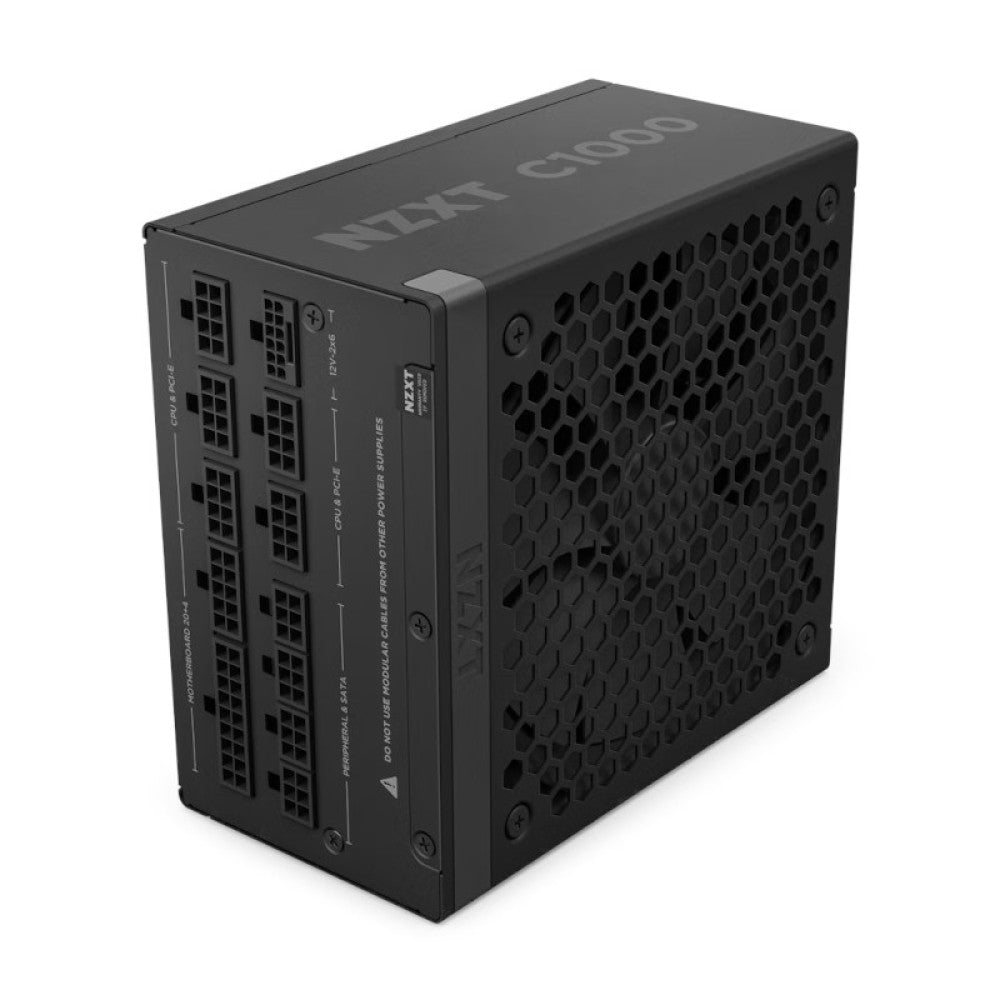

- Fully modular design allows for only connecting essential cables, reducing clutter for better airflow and a neater build.
- Compact form factor frees up valuable room for cable management and more case airflow.
- Thanks to high-quality construction and rigorous product testing, NZXT PSUs are backed by a 10-year warranty.
|
Product Specification |
|
|

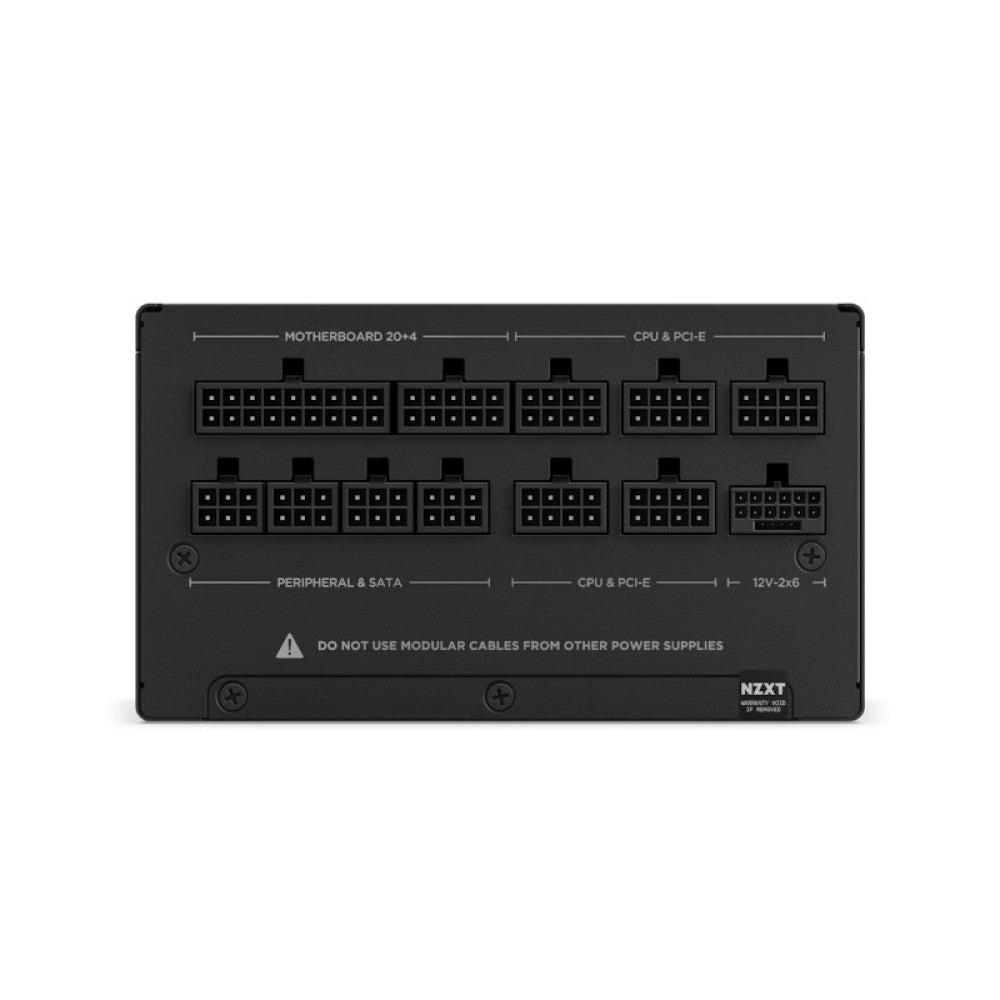

Output Connectors |
24-pin ATX Power Cable:: 1 4+4-pin CPU Power Cable: 1 8-pin CPU Power Cable: 1 6+2-pin PCIe Power Cable: 3 16-pin (12+4) 12V-2x6 PCIe Cable: 1 SATA Cable: 12 Peripherals Cable: 4 |
|
Cable Specs |
24-pin ATX Power Cable: 600mm with nylon sleeving 4+4-pin CPU Power Cable: 700mm with nylon sleeving 8-pin CPU Power Cable: 700mm with nylon sleeving 6+2-pin PCIe Power Cable: 650mm with nylon sleeving 16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving SATA Cable: 500 + 150mm Peripherals Cable: 500 + 150mm |
|
AC Input Rating |
100 - 240Vac: 13A 50Hz-60Hz 200 - 240Vac: 6.5A 50Hz-60Hz (China & South Korea) |
|
DC Output Rating |
3.3V / +5V: 22A (120W) 12V: 83.3A (1000W) 5Vsb: 3A (15W) Total: 1000W |
|
Energy Efficiency |
Rating: 80 Plus Gold 10% loading: 85.5% @115Vac 20% loading: 89.7% @115Vac 50% loading: 91.9% @115Vac 100% loading: 89.3% @115Vac |
|
Electrical Features |
PF Correction: Active @0.99 Protections: OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) / |
|
Fan Specs |
Dimensions: 135 x 135 x 25 mm Speed: 2300 ± 10% RPM Airflow: 93.02 CFM (Min.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
|
Operation |
MTBF: 100,000 hours Temperature: 0 - 50 °C |
|
Dimensions |
Width: 150 mm Height: 86 mm Depth: 160 mm |
|
General |
Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v3.1 / EPS12V v2.92 Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65 |
|
Warranty |
10 years |
