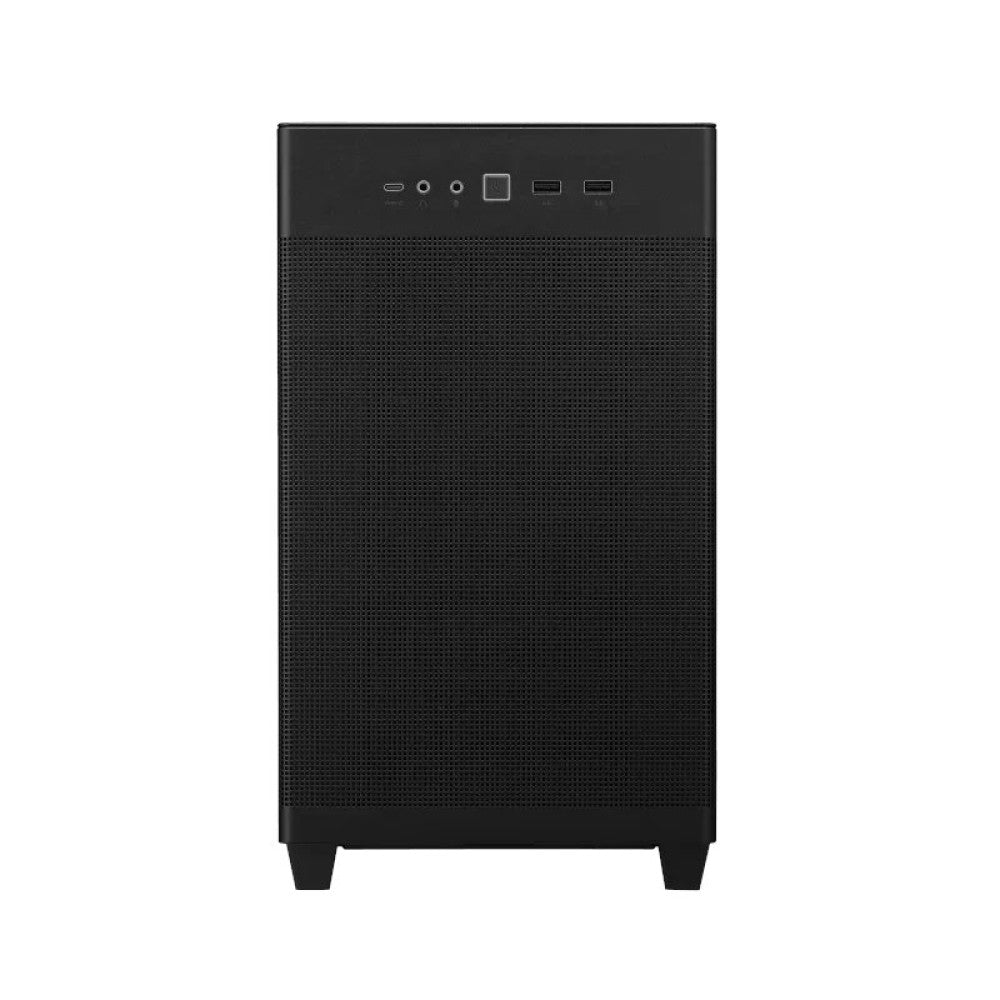

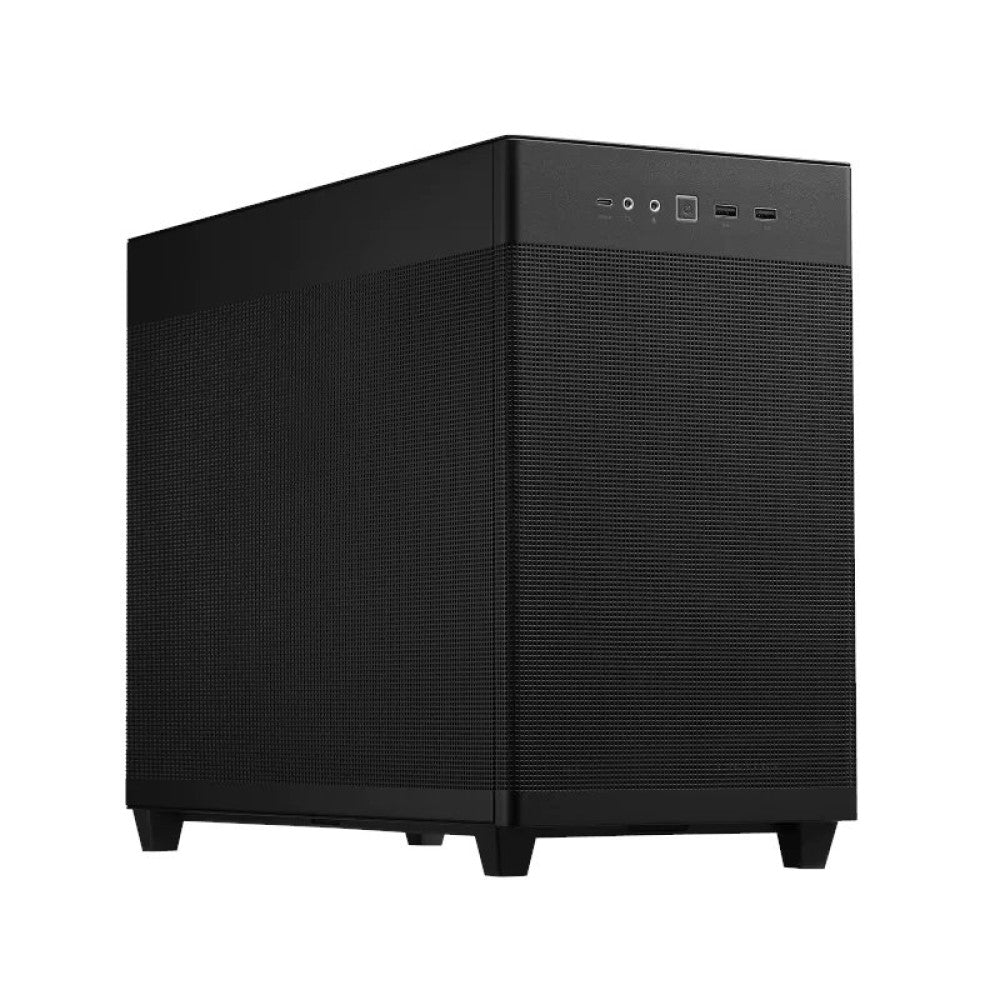

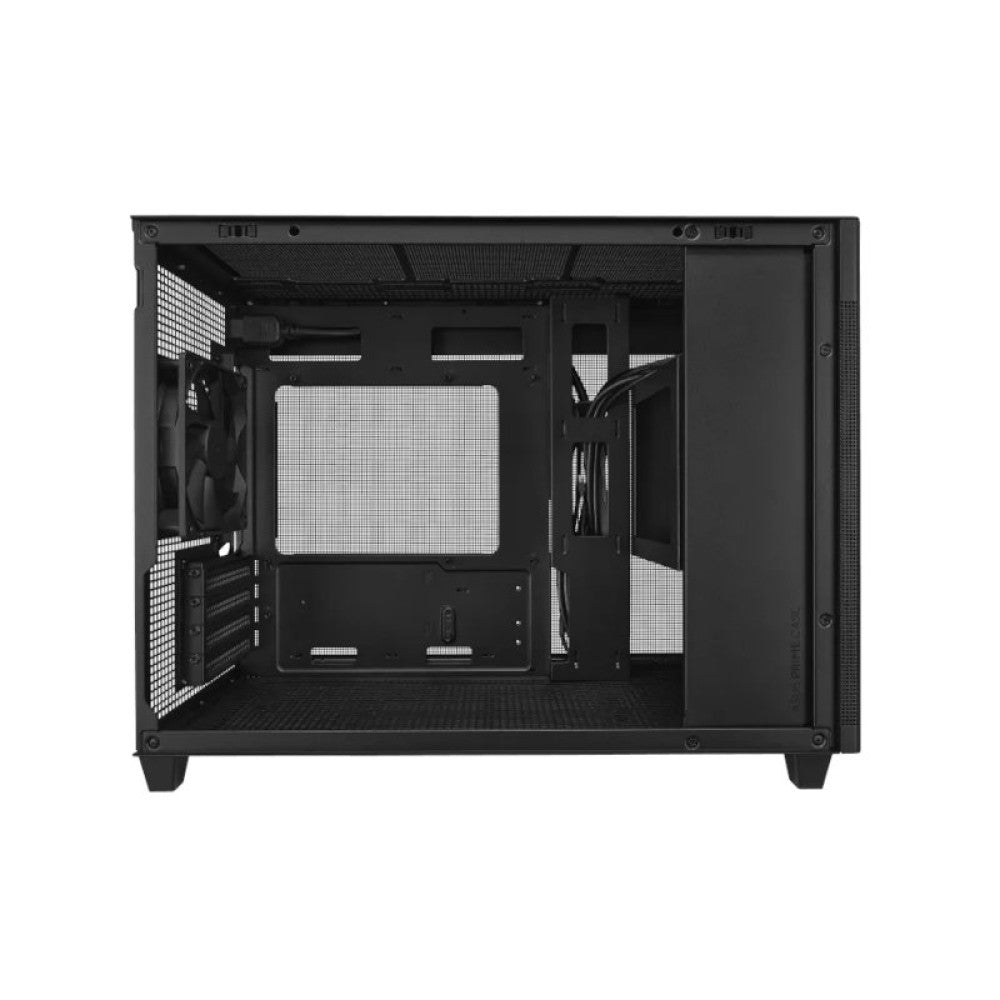

ASUS Prime AP201 MicroATX Cabinet - Black
ASUS Prime AP201 MicroATX Cabinet - Black
SKU:PRIME-AP201-BLACK
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
The ASUS Prime AP201 is a stylish 33-liter MicroATX case with tool-free side panels and a quasi-filter mesh, with support for 360 mm coolers, graphics cards up to 338 mm long, and standard ATX PSUs.
- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

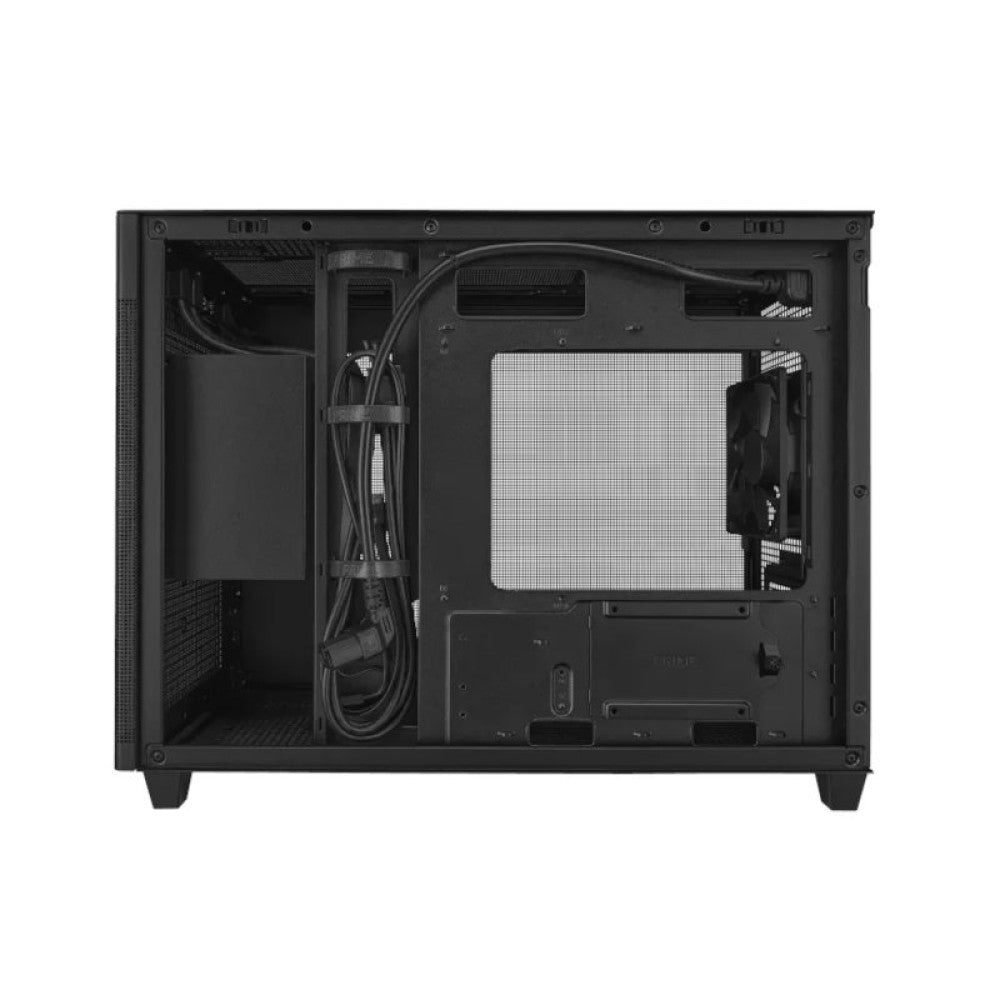

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
|
Product Specification |
|
|
Model |
ASUS Prime AP201 MicroATX Case |
|
Case Size |
Small Tower |
|
Motherboard Support |
Micro-ATX Mini-ITX |
|
Drive Bays |
1 x 2.5" Bay 3 x 2.5"/3.5" Combo Bay |
|
Expansion Slots |
4 |
|
Front I/O Port |
1 x Headphone 1 x Microphone 2 x USB 3.2 Gen1 1 x USB 3.2 Gen2 Type C |
|
Radiator Support (Top) |
120 mm 140 mm 240 mm 280 mm 360 mm |
|
Radiator Support (Rear) |
120 mm |
|
Cooling Support (Top) |
3 x 120 mm 2 x 140 mm |
|
Cooling Support (Rear) |
1 x 120 mm |
|
Pre-installed Fans |
1 x 120 mm (Rear) |
|
Maximum CPU Cooler Height |
170 mm |
|
Maximum GPU Length |
338 mm |
|
Maximum PSU Length |
140-180 mm |
|
Removable Dust Filters |
Bottom |
|
Maximum Cable Management Space |
32 mm |
|
Dimensions |
205 x 350 x 460 mm |
|
Weight |
5.8 Kg (Mesh Edition) |
|
Warranty |
1 Year |
