MSI Pro B650M-E Motherboard
MSI Pro B650M-E Motherboard
SKU:PRO B650M-E
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
|
Product Specification |
|
|
Processor |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
Chipset |
AMD B650 |
|
Memory |
2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
Expansion Slot |
1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
Onboard Graphics |
1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
Storage |
1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
LAN |
Realtek® RTL8111H Gigabit LAN |
|
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
Internal Connectors |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
LED Feature |
4x EZ Debug LED |
|

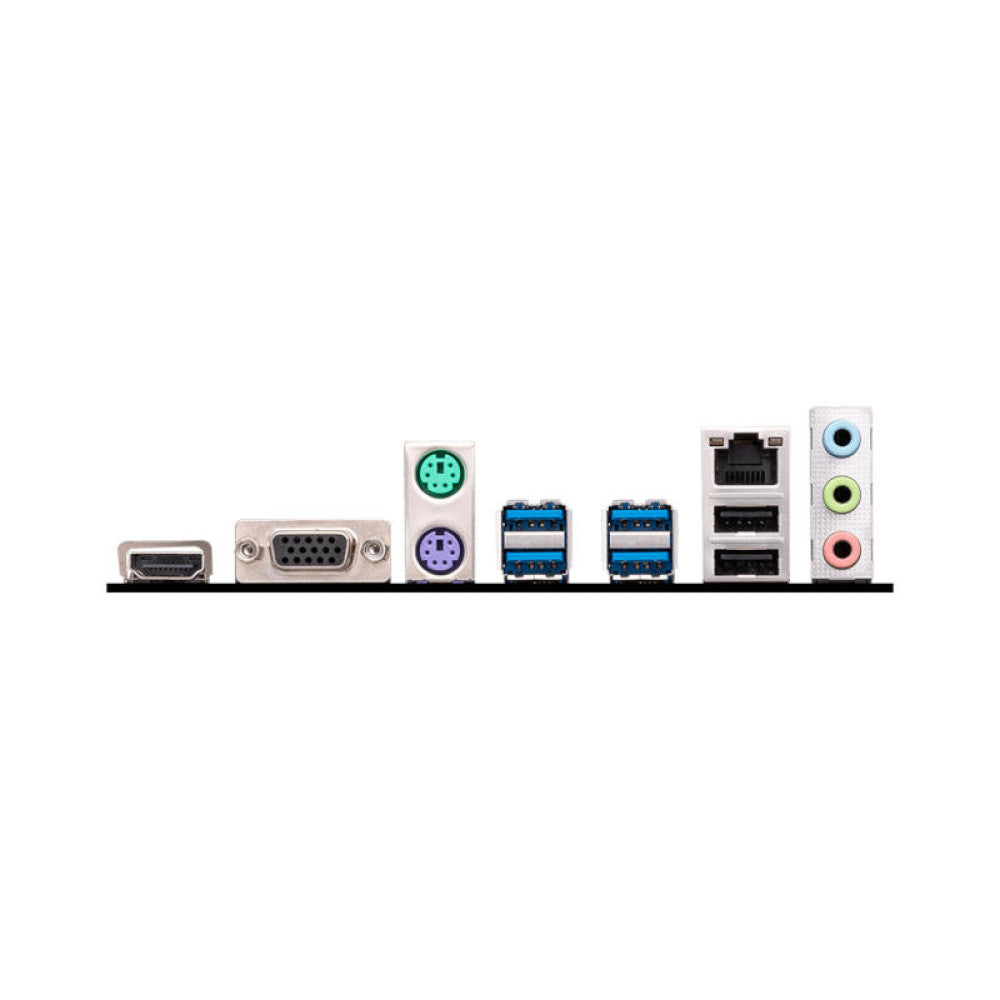

Back Panel Ports |
HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
|
Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
Dimensions |
mATX 211mmx243.84mm |
|
Warranty |
3 Years |
