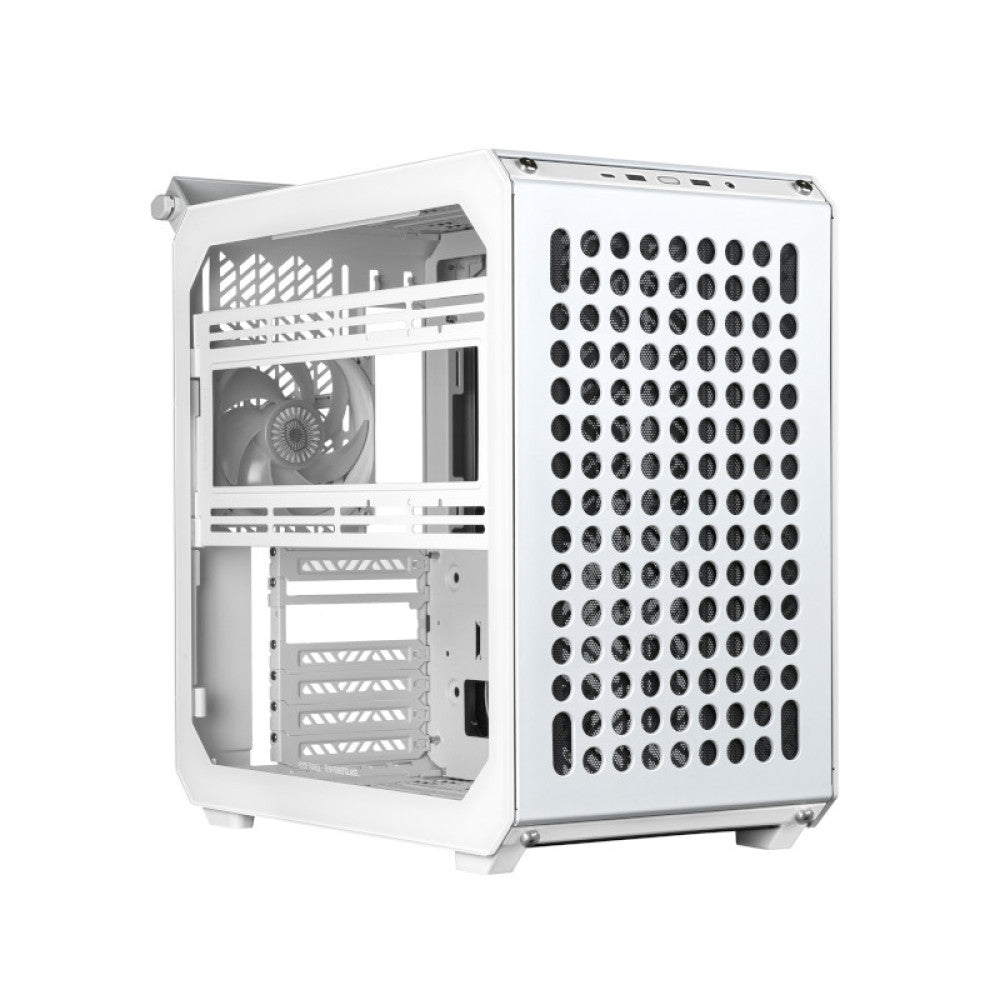

Cooler Master Qube 500 Mid Tower Cabinet - White

Product Name

QUBE 500

Product Number

Q500-WGNN-S01

Exterior Color

White

Dimensions

(L x W x H)

Incl. Protrusions: 406 x 231 x 415mm

Motherboard Support

ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU)

Expansion Slots

7

Drive Bays

Max. 4x 3.5” HDD

Max. 3x 2.5” SSD

I/O Panel

2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C

3.5mm Combo x 1

Fan Support

Front: 120/140mm x 1 (x2 if PSU is mounted in bottom)

Top: 120/140mm x 2

Rear: 120mm x 1

Bottom: 120/140mm x 2

Left Side: 120/140mm x 2

Radiator Support

Front: 120/140 mm (240/280mm w/ PSU in bottom)

Top: 120/140/240/280mm (280mm can be used within 53mm thickness)

Rear: 120mm

Bottom: 120/140/240/280mm

Left Side: 120/140/240/280mm

Clearances

CPU Cooler: 164mm~172mm (Remove the water cooling bracket)

Power Supply: 173mm to first GPU slot, 216 maximum space (w/o cable management space) / 332mm space mounted in bottom (w/o cable management space)

Graphics card: 365mm

Power Supply Support

SFX / SFX-L / ATX

Warranty

2 Years
