Deepcool Assassin IV VC VISION CPU Air Cooler
Deepcool Assassin IV VC VISION CPU Air Cooler
SKU:R-ASN4-BKNVMD-G
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: R-ASN4-BKNVMD-G

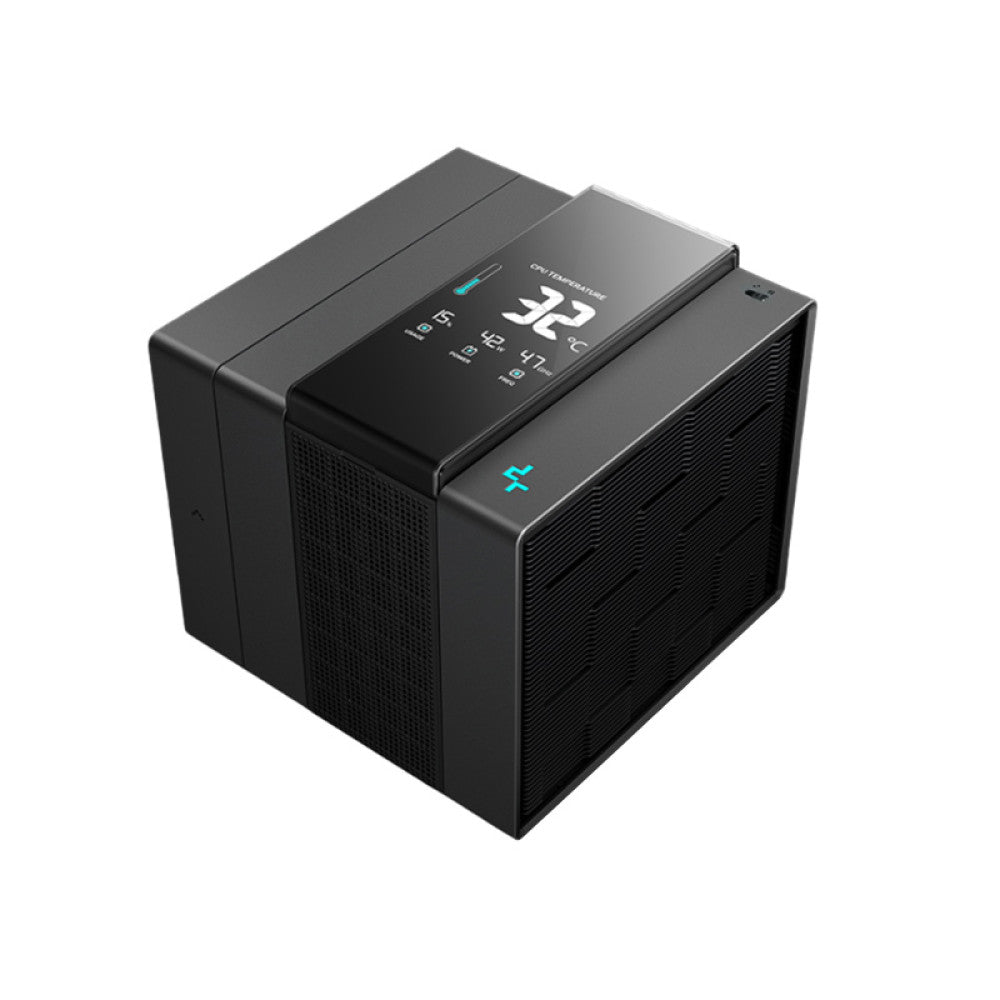

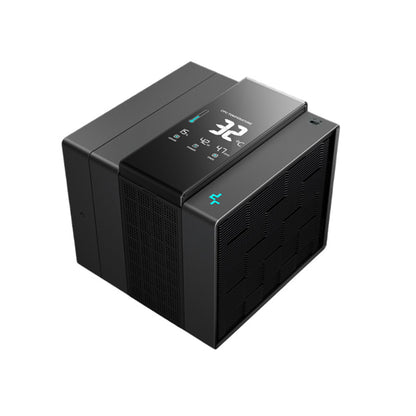

DeepCool's flagship air cooler series gets a drastic addition in the form of the ASSASSIN IV VC VISION. The cooling capacity gets a nice bump with the inclusion of a vapor chamber at the base that pushes the TDP to 300W! The upgrades don't stop there, as a high-end quad-segmented digital display has also been added to the already impressive ASSASSIN IV cooler. An aesthetical cooling powerhouse that has two sound profiles and a digital screen—air coolers can have it all.
|
Product Specification |
|
|
Model |
R-ASN4-BKNVMD-G |
|
Application For |
Intel: LGA2066/2011-v3/2011/1700/1200/1150/1151/1155 AMD: AM5/AM4 |
|
Product Dimensions |
147×144×172 mm(L×W×H) |
|
Heatsink Dimensions |
140×110×160 mm(L×W×H) |
|
Net Weight |
1780 g |
|
Heatpipe |
Ø6 mm×7 pcs |
|
Fan Dimensions |
140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H) |
|
Fan Speed (Performance Mode) |
500~1800 RPM±10% / 500~1700 RPM±10% |
|
Fan Airflow (Performance Mode) |
61.25 CFM / 58.06 CFM |
|
Fan Air Pressure (Performance Mode) |
3.76 mmAq / 2.1 mmAq |
|
Overall Noise (Performance Mode) |
≤29.3 dB(A) |
|
Fan Speed (Quiet Mode) |
500~1450 RPM±10% / 500~1350 RPM±10% |
|
Fan Airflow (Quiet Mode) |
48.55 CFM / 46.75 CFM |
|
Fan Air Pressure (Quiet Mode) |
2.46 mmAq / 1.35 mmAq |
|
Overall Noise (Quiet Mode) |
≤22.6 dB(A) |
|
Fan Connector |
4-pin PWM |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.2 A / 0.2 A |
|
Fan Power Consumption |
2.4 W / 2.4 W |
|
Rated Voltage |
12 VDC |
|
Power Consumption (Performance Mode) |
4.8 W |
|
Power Consumption (Quiet Mode) |
3.6 W |
|
Display Module Rated Voltage |
0.08 A±10% |
|
Display Module Rated Current |
5 VDC |
|
Display Module Power Consumption |
0.4 W |
|
Display Area |
44.6x53.6 mm |
|
Warranty |
6 Years |
