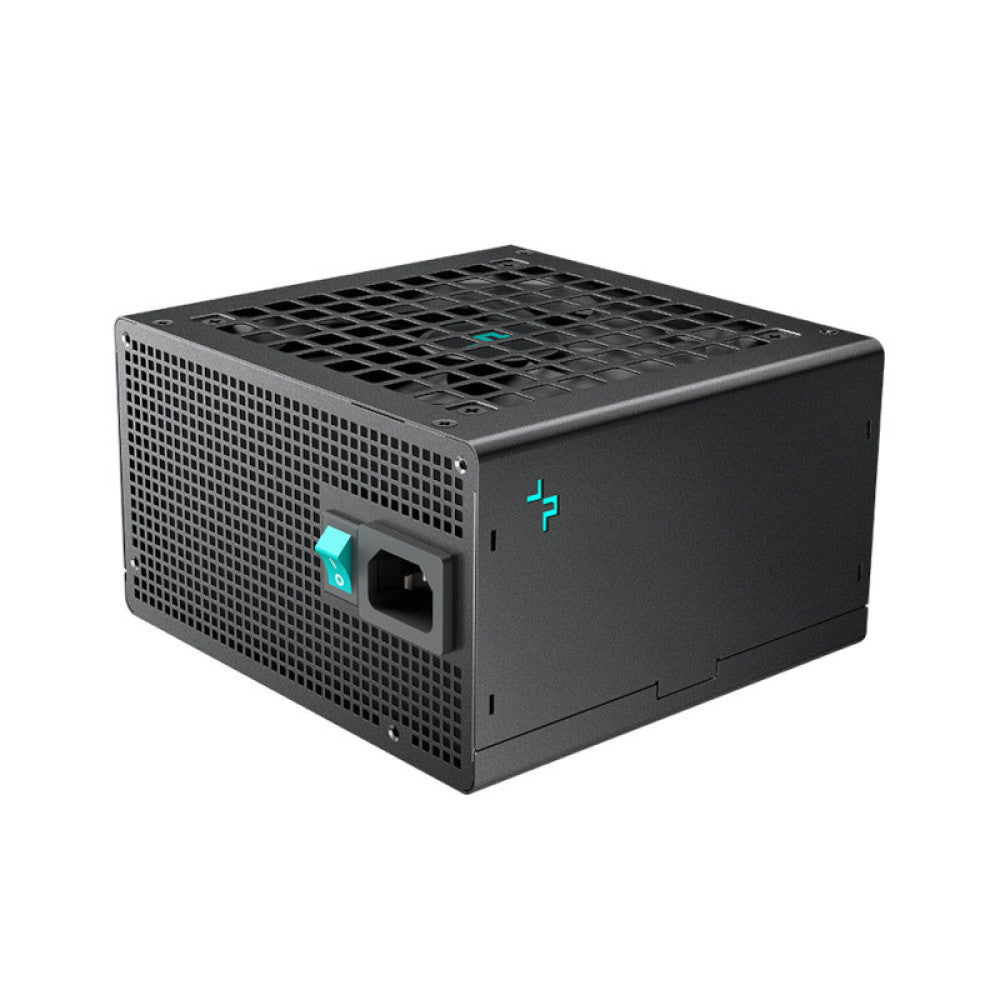

Deepcool PL750D 750 Watt 80 Plus Bronze ATX 3.0 Power Supply
Deepcool PL750D 750 Watt 80 Plus Bronze ATX 3.0 Power Supply
SKU:R-PL750D-FC0B-IN-V2
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: R-PL750D-FC0B-IN-V2
The PL750D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL's ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
|
Product Specification |
|
|
Model No. |
R-PL750D-FC0B-IN-V2 |
|
Cables |
Main Power Connector (20+4)Pin x 1 – 1PCS CPU(4+4)Pin x 1– 2PCS PCI-E(6+2)Pin x 1 – 1PCS PCI-E(6+2)Pin x 2 – 1PCS 12V-2x6(16Pin) x 1 – 1PCS SATA x 4 + 4Pin Peripheral x 1 – 2PCS |
|
Type |
ATX12V V3.0 |
|
Product Dimensions |
150×140×86mm (W x L x H) |
|
Efficiency certification |
80Plus Bronze |
|
Fan Size |
120mm |
|
Fan Bearing |
HYB(Hydro Bearing) |
|
Topology |
Active PFC+DC to DC |
|
Capacitors |
Chinese Electrolytic Capacitors |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
≥16ms |
|
Efficiency |
≥85% Under Typical Load(50% Loading) |
|
Protection |
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
|
Operation Temperature |
0 - 40℃ |
|
Regulatory |
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
|
Erp Regulation |
ErP 2014 |
|
Environment Protection |
WEEE/中国 RoHS/Triman/P65 |
|
MTBF |
100,000 Hours |
|
Warranty |
5 Years |
