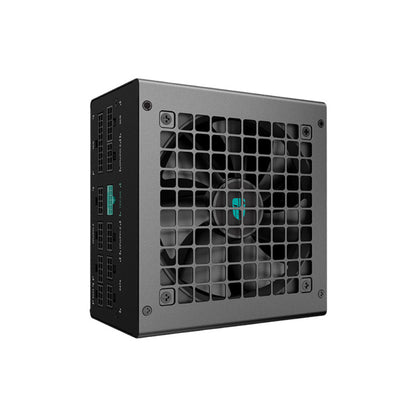

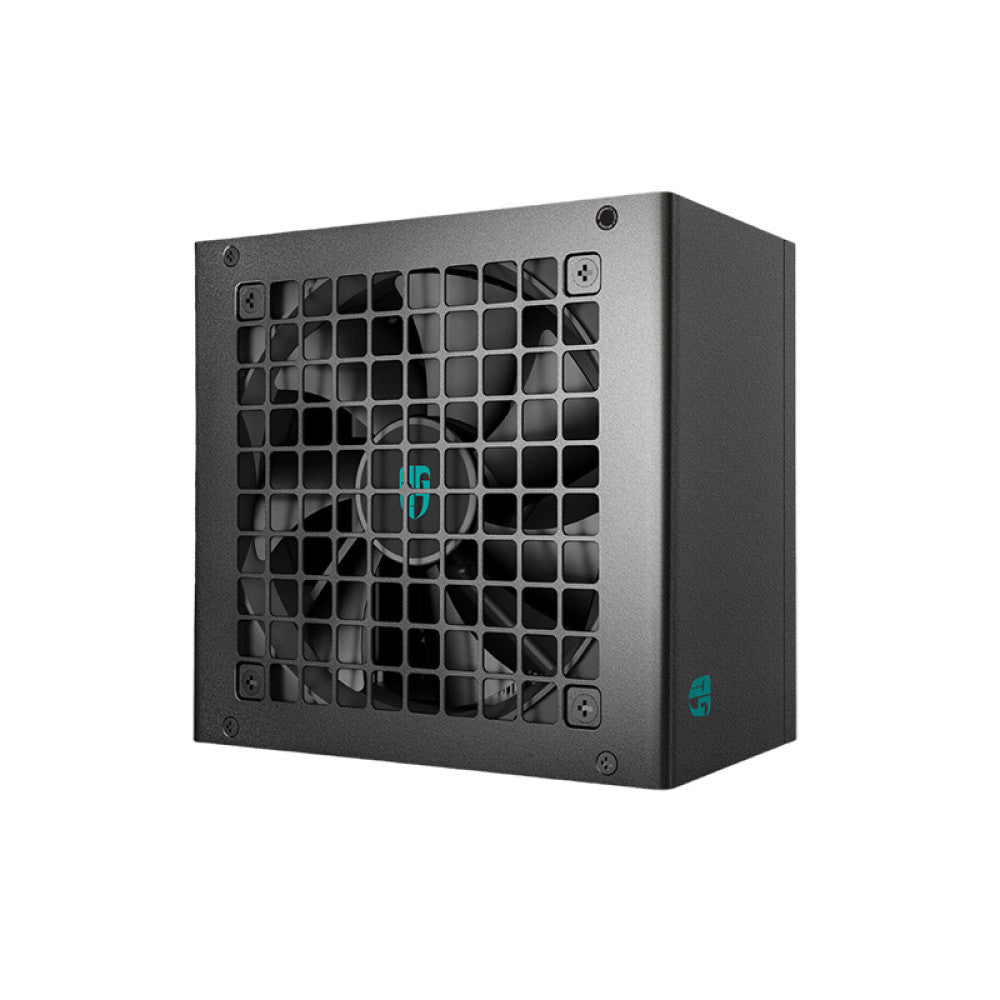

Gamer Storm PN750M 750 Watt 80 Plus Gold ATX 3.1 Fully Modular Power Supply

Model No.

R-PN750M-FC0B-JGIN

Cables

Main Power Connector (20+4)Pin x 1 – 1PCS

CPU(4+4)Pin x 1 – 2PCS

PCI-E(6+2)Pin x 1 – 3PCS

12V-2x6(16Pin) x 1 – 1PCS

SATA x 4 + 4Pin Peripheral x 1 – 2PCS

Type

ATX12V V3.1

Product Dimensions

150×140×86mm (W x L x H)

Efficiency certification

80Plus Gold

Fan Size

120mm

Fan Bearing

FDB (Fluid Dynamic Bearing)

Topology

Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors

Japanese Bulk Capacitor

Power Good Signal

100-150ms

Hold Up Time

≥16ms(80% Load)

Efficiency

≥90% Under Typical Load(50% Loading)

Protection

OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO

Operation Temperature

0 - 40℃

Regulatory

CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH

Erp Regulation

ErP 2014

Environment Protection

WEEE/中国 RoHS/Triman/P65

MTBF

100,000 Hours

Warranty

10 Years
