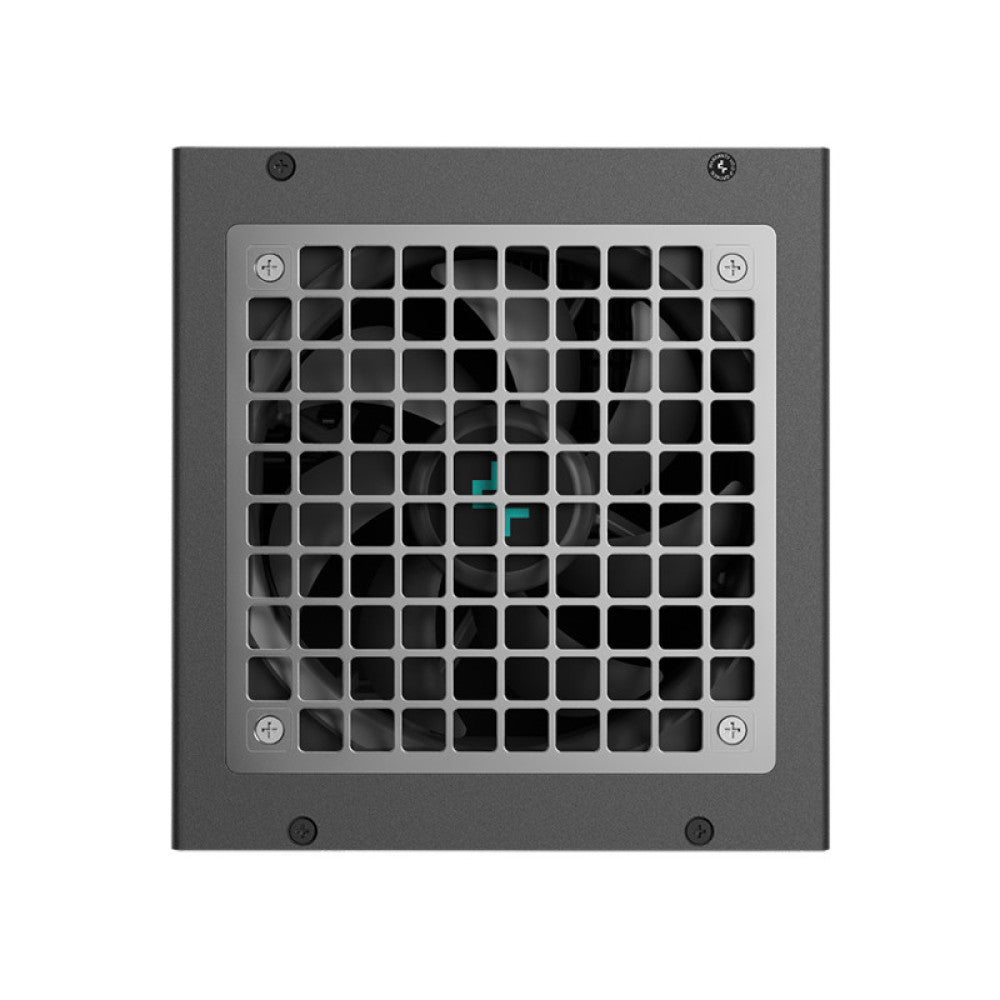

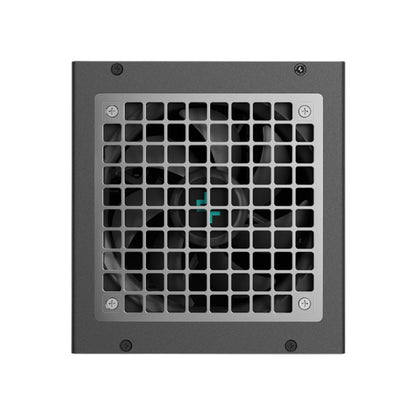

Deepcool PX1000P 1000 Watt 80 Plus Platinum Fully Modular ATX 3.0 Power Supply
Deepcool PX1000P 1000 Watt 80 Plus Platinum Fully Modular ATX 3.0 Power Supply
SKU:R-PXA00P-FC0B-IN
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: R-PXA00P-FC0B-IN
The DeepCool PX1000P is a newly designed power supply that meets the latest Intel ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 5 PCI-e ports, the PX1000P provides stable power for a wide range of modern high-power components.
|
Product Specification |
|
|
Type |
ATX12V V3.0 |
|
Product Dimensions |
150×160×86mm (W x L x H) |
|
Efficiency certification |
80Plus Platinum/Cybenetics_Platinum |
|
Fan Size |
120mm |
|
Fan Bearing |
FDB (Fluid Dynamic Bearing) |
|
Topology |
Interleaved PFC, Full-Bridge & LLC + DC to DC |
|
Capacitors |
Full Japan Electrolytic Capacitors |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
≥ 16ms |
|
Efficiency |
≥92% Under Typical Load (50% Loading) |
|
Protection |
OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP |
|
Operation Temperature |
0-50°C |
|
Regulatory |
CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/ |
|
Erp Regulation |
ErP 2014 |
|
Environment Protection |
WEEE/中国 RoHS/Triman |
|
MTBF |
100,000 Hours |
|

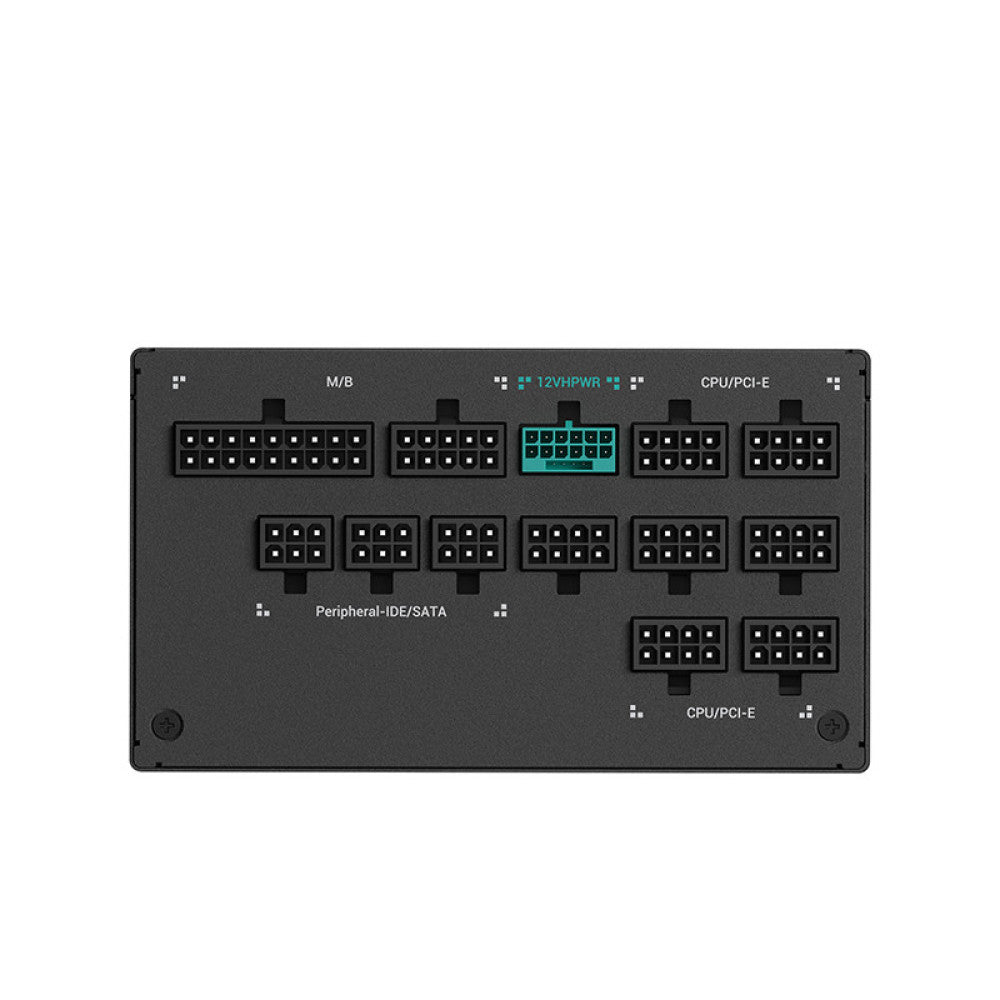

Connectors |
Main 20+4Pin x1 = 1 CPU 4+4Pin x1 = 2 PCI-E 6+2Pin x1 = 5 SATA x4 = 2 12VHPWR(16Pin) x1 = 1 4Pin Peripheral x4 =1 |
|
Warranty |
12 Years |
