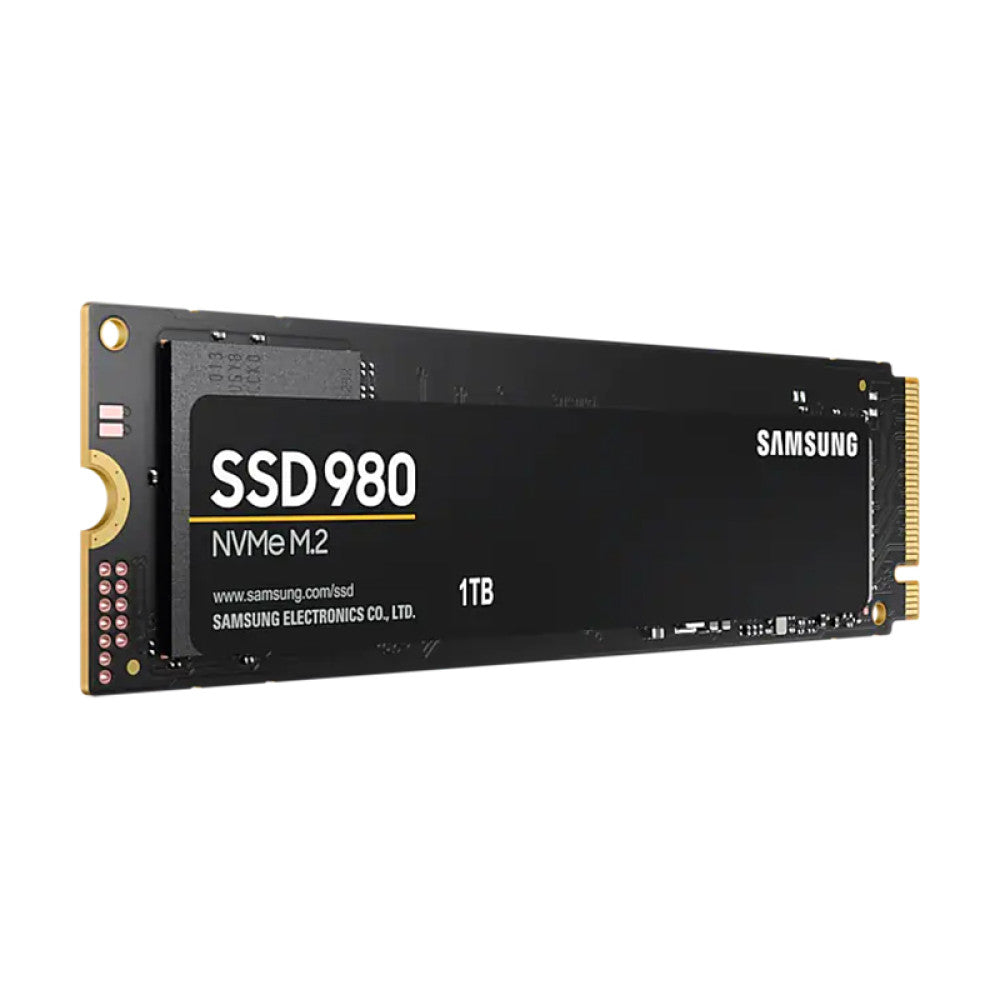

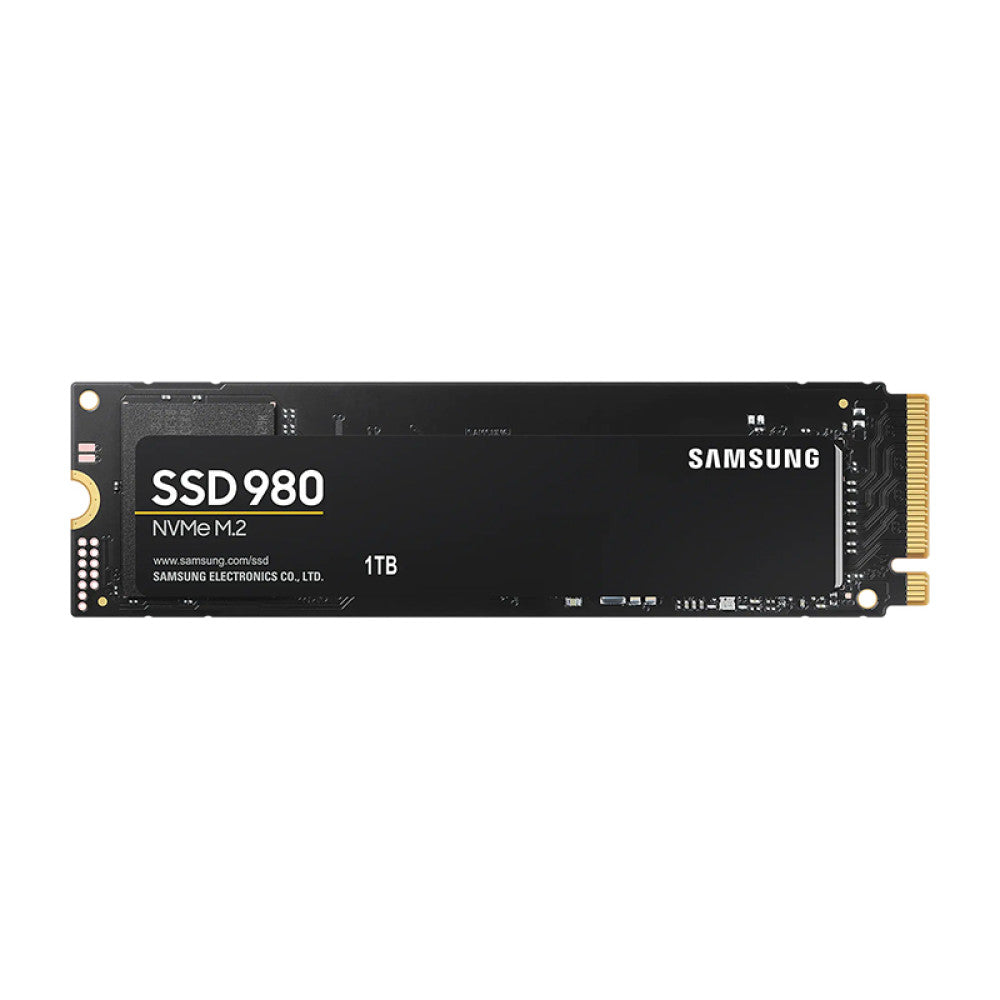

Samsung 980 1TB PCIe Gen3 NVMe M.2 SSD
Samsung 980 1TB PCIe Gen3 NVMe M.2 SSD
SKU:MZ-V8V1T0BW
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MZ-V8V1T0BW
- Samsung NVMe SSD powered by V-NAND technology
- Up to 3,500 MB/s sequential read and 3,000 MB/s write
- 5-year limited warranty
|
Product Specification |
|
|
General Feature |
Application : Client PCs Capacity : 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor : M.2 (2280) Interface : PCIe Gen 3.0 x4, NVMe 1.4 Dimension (Pack: WxHxD) : 80.15 x 22.15 x 2.38 (mm) Weight : Max 8.0 g Weight Storage Memory : Samsung V-NAND 3-bit MLC Controller : Samsung Pablo Controller Cache Memory : HMB(Host Memory Buffer) |
|
Special Feature |
TRIM Support : Supported S.M.A.R.T Support : Supported GC (Garbage Collection) : Auto Garbage Collection Algorithm Encryption Support : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support : Not supported Device Sleep Mode Support : Yes |
|
Performance |
Sequential Read : Up to 3,500 MB/s * Performance may vary based on system hardware & configuration Sequential Write : Up to 3,000 MB/s * Performance may vary based on system hardware & configuration Random Read (4KB, QD32) : Up to 500,000 IOPS * Performance may vary based on system hardware & configuration Random Write (4KB, QD32) : Up to 480,000 IOPS * Performance may vary based on system hardware & configuration Random Read (4KB, QD1) : Up to 17,000 IOPS * Performance may vary based on system hardware & configuration Random Write (4KB, QD1) : Up to 54,000 IOPS * Performance may vary based on system hardware & configuration |
|
Environment |
Average Power Consumption (system level)* : Average: 4.6 W*Maximum: 5.3 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration Power consumption (Idle) : Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage : 3.3 V ± 5 % Allowable voltage Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF) Operating Temperature : 0 - 70 ℃ Operating Temperature Shock : 1,500 G & 0.5 ms (Half sine) |
|
Accessories |
Installation Kit : Not Available |
|
Software |
Management SW : Magician Software for SSD management |
|
Warranty |
5-Year Limited Warranty or 600 TBW Limited Warranty |
