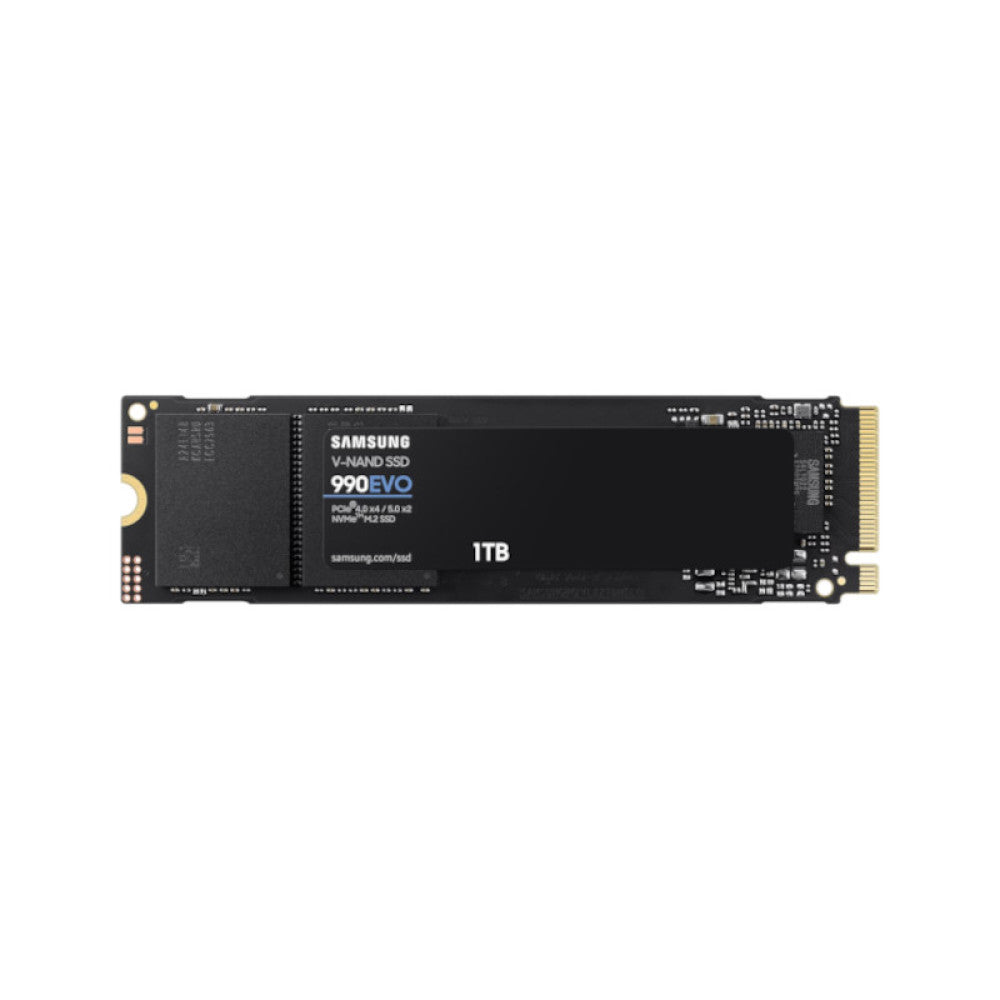

Samsung 990 Evo 1TB NVMe M.2 SSD
Samsung 990 Evo 1TB NVMe M.2 SSD
SKU:MZ-V9E1T0BW
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
Model: MZ-V9E1T0BW
- Sequential read speed up to 5000 MB/s
- Elevate everyday performance in Gaming, Business, Creative work with PCIe 4.0 x 4 and PCIe 5.0 x 2 compatibility
- 70% enhanced power efficiency supporting modern standby and longer battery life
|
Product Specification |
|
|
General Feature |
Application: Client PCs Capacity: 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor: M.2 (2280) Interface: PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 Dimension (WxHxD): 80 x 22 x 2.38 mm Weight: Max 9.0g Weight Storage Memory: Samsung V-NAND TLC Controller: Samsung in-house Controller Cache Memory: HMB(Host Memory Buffer) |
|
Special Feature |
TRIM Support: Supported S.M.A.R.T Support: Supported GC (Garbage Collection): Auto Garbage Collection Algorithm Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) WWN Support: Not supported Device Sleep Mode Support: Yes |
|
Performance |
Sequential Read: Up to 5,000 MB/s * Performance may vary based on system hardware & configuration Sequential Write: Up to 4,200 MB/s * Performance may vary based on system hardware & configuration Random Read (4KB, QD32): Up to 680,000 IOPS * Performance may vary based on system hardware & configuration Random Write (4KB, QD32): Up to 800,000 IOPS * Performance may vary based on system hardware & configuration Random Read (4KB, QD1): Up to 20,000 IOPS * Performance may vary based on system hardware & configuration Random Write (4KB, QD1): Up to 90,000 IOPS * Performance may vary based on system hardware & configuration |
|
Environment |
Average Power Consumption (system level): *Average: Read 4.9 W / Write 4.5 W* Actual power consumption may vary depending on system hardware & configuration Power consumption (Idle): Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration Power Consumption (Device Sleep): Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage: 3.3 V ± 5 % Allowable voltage Reliability (MTBF): 1.5 Million Hours Reliability (MTBF) Operating Temperature: 0 - 70 ℃ Operating Temperature Shock: 1,500 G & 0.5 ms (Half sine) |
|
Accessories |
Installation Kit: Not Available |
|
Software |
Management SW: Magician Software for SSD management |
|
Warranty |
5-Year Limited Warranty or 600 TBW Limited Warranty |
