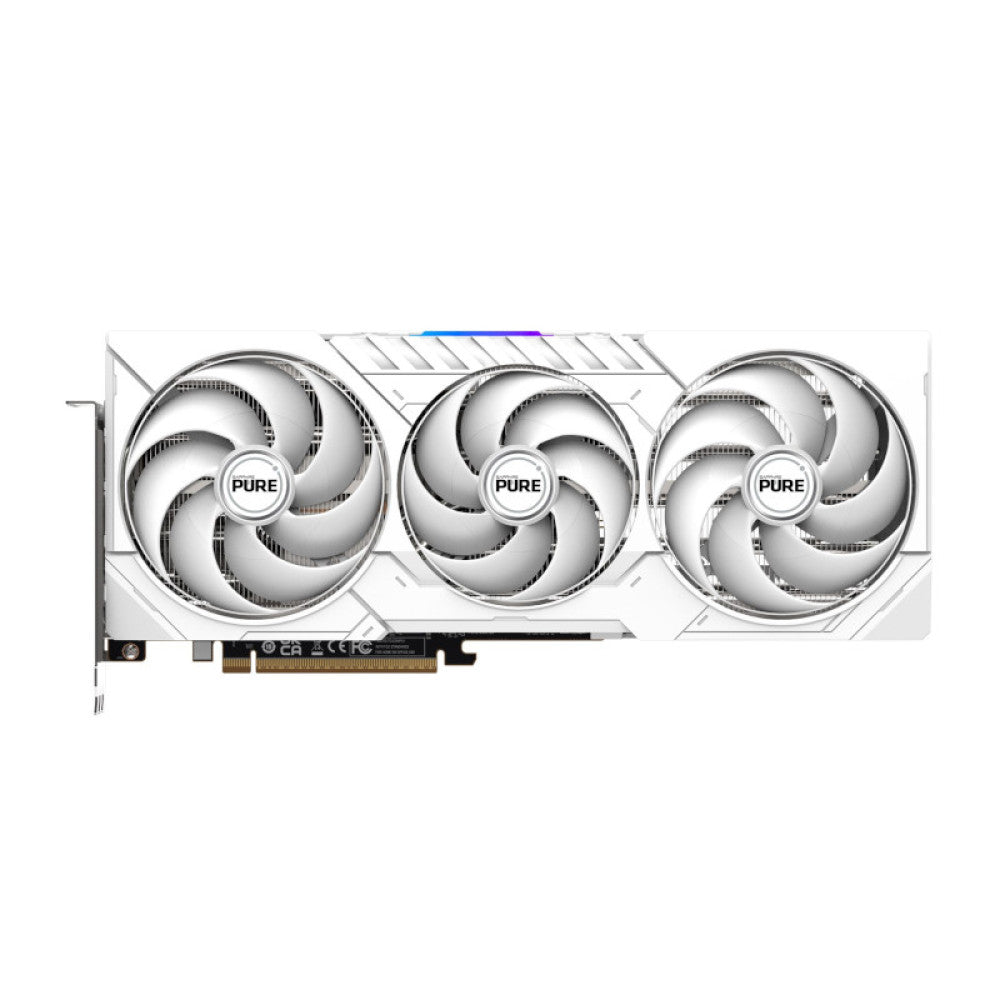

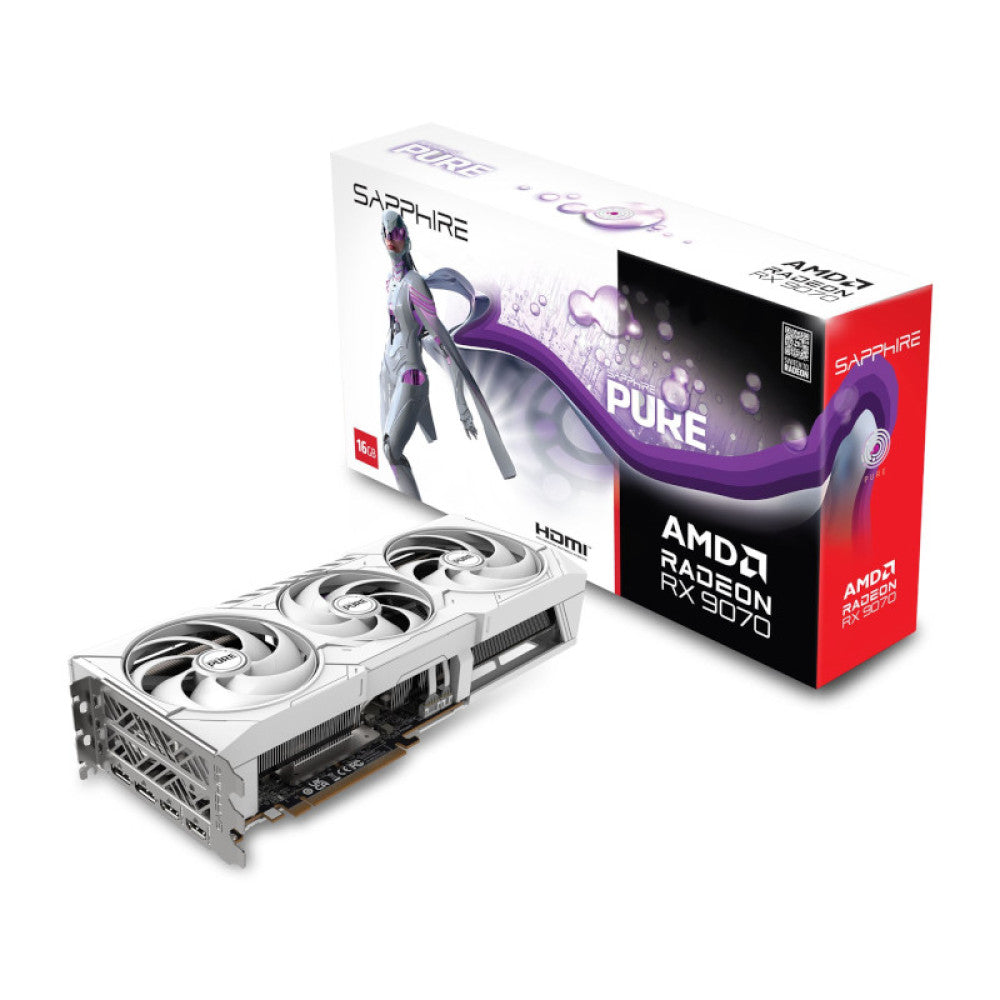

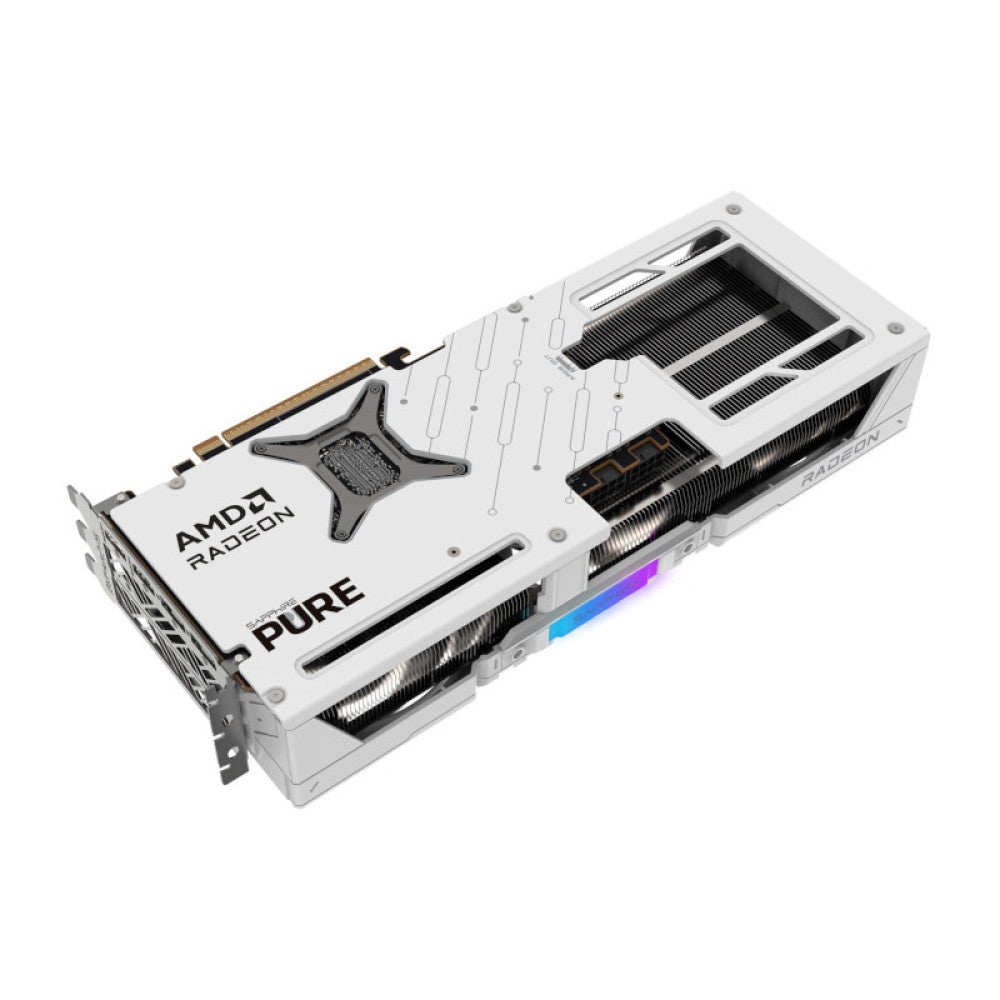

Sapphire Pure RX 9070 OC 16GB GDDR6 Graphics Card
Sapphire Pure RX 9070 OC 16GB GDDR6 Graphics Card
SKU:11349-02-20G
- 100% Genuine Products
- Easy Returns and Refunds
- Shipped in 1-2 Days
Couldn't load pickup availability
FEATURES
- GPU: Boost Clock: Up to 2700 MHz
- GPU: Game Clock: Up to 2210 MHz
- Memory: 16GB/256 bit DDR6. 20 Gbps Effective
- Stream Processors: 3584
- AMD RDNA™ 4 Architecture
- Ray Accelerator: 56
Product Specification |
|
|
GPU |
AMD Radeon™ RX 9070 Graphics Card AMD RDNA™ 4 Architecture |
|
Engine Clock |
Boost Clock: Up to 2700 MHz Game Clock: Up to 2210MHz |
|
Stream Processors |
3584 |
|
Compute Units |
56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
|
Infinity Cache |
64MB |
|
Ray Accelerators |
56 |
|
AI Accelerator |
112 |
|
Memory Size/Bus |
16GB/256 bit GDDR6 |
|
Memory Clock |
20 Gbps Effective |
|
Displays |
Maximum 4 Displays |
|
Resolution |
HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
|
Interface |
PCI-Express 5.0 x16 |
|
Output |
2x HDMI® 2x DisplayPort™ 2.1a |
|
BIOS Support |
UEFI |
|
Game Index |
4K |
|
Sapphire Features |
Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate ARGB SAPPHIRE Logo Two-Ball Bearing Fans 12-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported Performance vs. Efficiency Quicksets Glow! TriXX Boost External RGB LED MB Synchronization |
|
Accessories Bundled |
L-Shape Support Bracket 3pin 5V ARGB Cable |
|
AMD Features |
AMD RDNA™ 4 Architecture 56 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
|
Cooler Type |
Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
|
Form Factor |
3 slot, ATX Dimension: 320(L)X 120.25(W)X 61.6 (H)mm |
|
Power Consumption |
245W Typical Board Power |
|
OS |
Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
|
System Requirement |
Minimum 650 Watt Power Supply 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
|
Warranty |
3 years |
